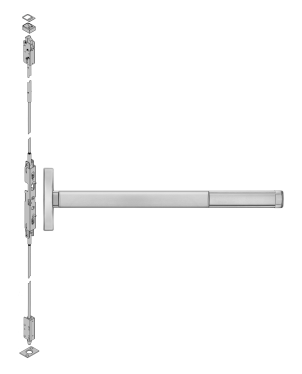

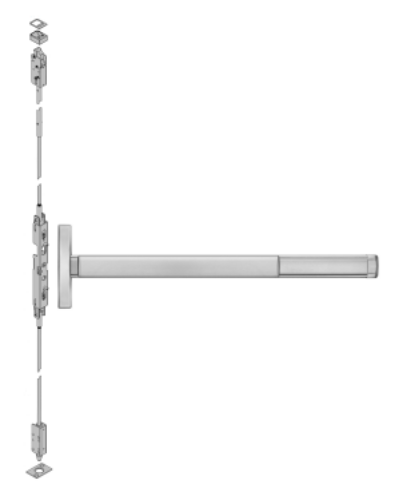

Precision FL2614 Apex Concealed Vertical Rod Exit Device, Lever/Knob Always Active, Narrow Stile, Fire Rated
Product Details
Precision 2614 Apex Concealed Vertical Rod Exit Device, Lever/Knob Always Active, Narrow Stile, Fire Rated
Description and Features:
Doors:For all types of metal single and double door applications
Door Sizes:
Width:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Height:7'
- For 7’-0" doors
8'- For 8’-0" door Heights
10'- For 10’-0" door Heights
Base Material:Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
Top StrikeNo. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.
Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.
Dogging:1/4" turn hex key dogging standard.
UL Listed: Panic and Fire Exit Hardware.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

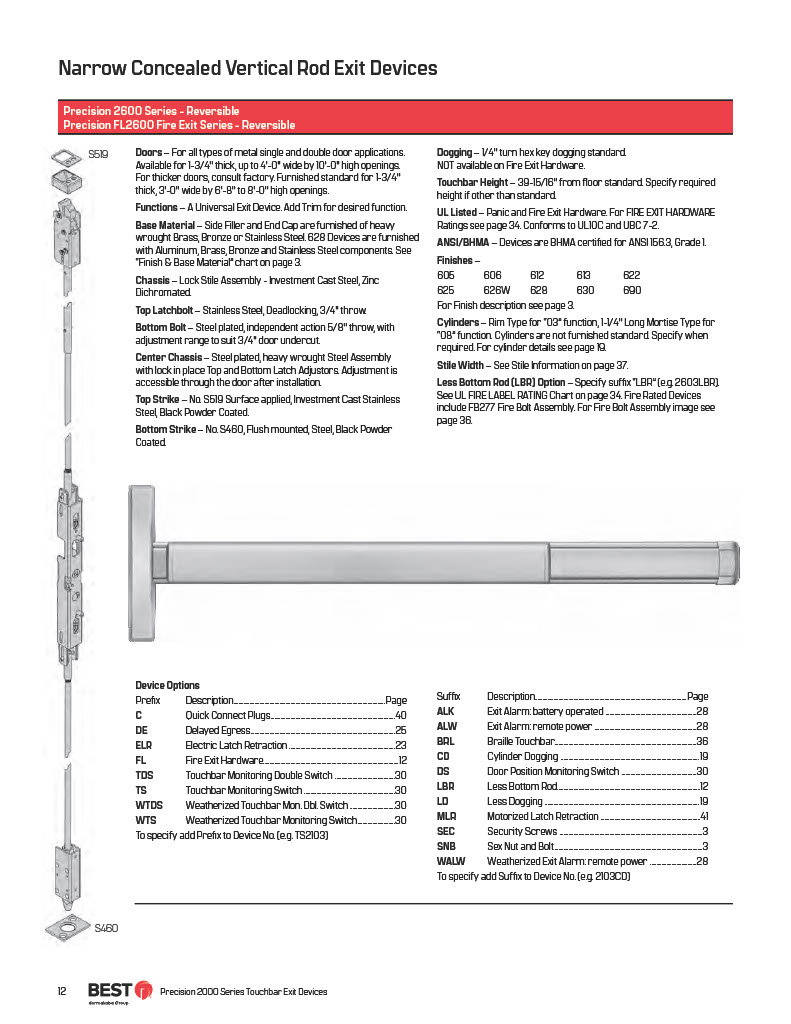

Stile Width:See Catalog Page # 36
Model:Stanley-Precision FL2601-630-36, FL2602-630-48 , FL2603-628-36 , FL2605-628-48, 2605-630-36, 2605-630-48 , 2605-628-36 , 2605-628-48, 2602-630-36, 2601-630-48 , FL2608-628-36 , 2602-628-48, FL2614-630-36, FL2615-630-48 , 2614-628-36 , 2615-628-48
