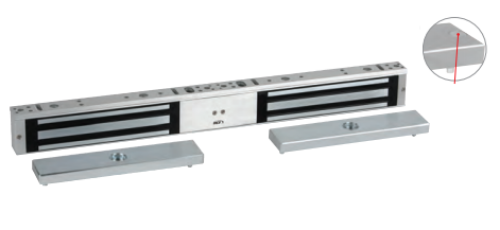

RCI 8372-2DSS Surface MiniMag Electromagnetic Lock W/ Door Status Sensor, For Double Doors

RCI (Rutherford) 8372-2DSS Surface MiniMag Electromagnetic Lock W/*Door Status Sensor*, For Double Doors

Description And Features:

- For double outswinging interior doors without mullions.

Door Status Sensor (DSS) -Magnet-reed type sensor for remote indication of door status (opened or closed) independent of local power. Magnet embedded in armature for tamper resistance; reed switch inside electronic housing cavity for easy access

• 18-3/4"W x 1-7/8"H x 1"D (476mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket

- Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) each

- Mode: Fail-Safe

- Stabilizing 4 bolt “drop stop" mounting

- Adjustable keyhole mounting

- Surge protection

- Designed to overcome residual magnetism

- Easy-access wiring cavity

- Hardened steel armature nut

- Includes 3/8" (9.5mm) armature plate

- UL 294 Special Locking Arrangement Component (6th Edition)

- UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour

- California State Fire Marshal Listed (CSFM: 3774-2127:0100)

Warranty: Lifetime Limited Warranty

Fire-Rated: CAN/ULC S104, UL 10C 1-Hour

Strength: Up To 750lbf Holding Force

Energy: 520mA1, Field-Selectable 12/24VDC

Model:8372, 83722DSS-28, 8372-2DSS-40, 8372SCS28, 83722SCS40, 8372-DSS-28, 8372-2DSS-40
