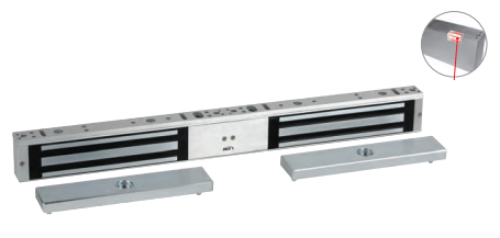

RCI 8372-SCS Surface MiniMag Electromagnetic Lock W/ Security Condition Sensor, For Double Doors

RCI (Rutherford) 8372-SCS Surface MiniMag Electromagnetic Lock W/*Security Condition Sensor*, For Double Doors

Description And Features:

 For double outswinging interior doors without mullions.Security Condition Sensor (SCS)– Electronic field presence sensor for remote and local LED indication of lock status (locked or unlocked), reduced holdingforce caused by materials between magnet and plate and unlocked device due to current loss. 18-3/4"W x 1-7/8"H x 1"D (476mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) each Mode: Fail-Safe Stabilizing 4 bolt “drop stop" mounting Adjustable keyhole mounting Surge protection Designed to overcome residual magnetism Easy-access wiring cavity Hardened steel armature nut Includes 3/8" (9.5mm) armature plate UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Warranty: Lifetime Limited Warranty Fire-Rated: CAN/ULC S104, UL 10C 1-Hour Strength: Up To 750lbf Holding Force Energy: 520mA1, Field-Selectable 12/24VDC Model:8372, 83722SCS-28, 8372-2SCS-40, 8372SCS28, 83722SCS40, 8372-SCS-28, 8372-2SCS-40
