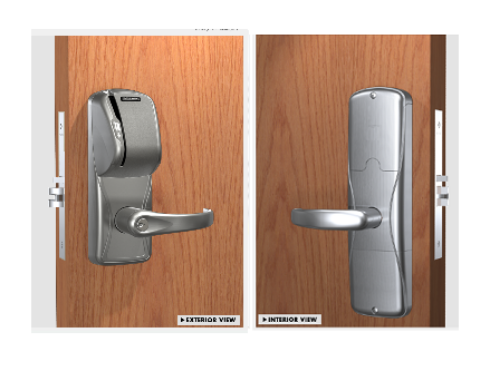

Schlage AD-200-MS-70-MS Mortise Magnetic Stripe (Swipe) Standalone Electronic Lock W/ Audit Trail - Classroom / Storeroom

AD-200-MS-70-MS

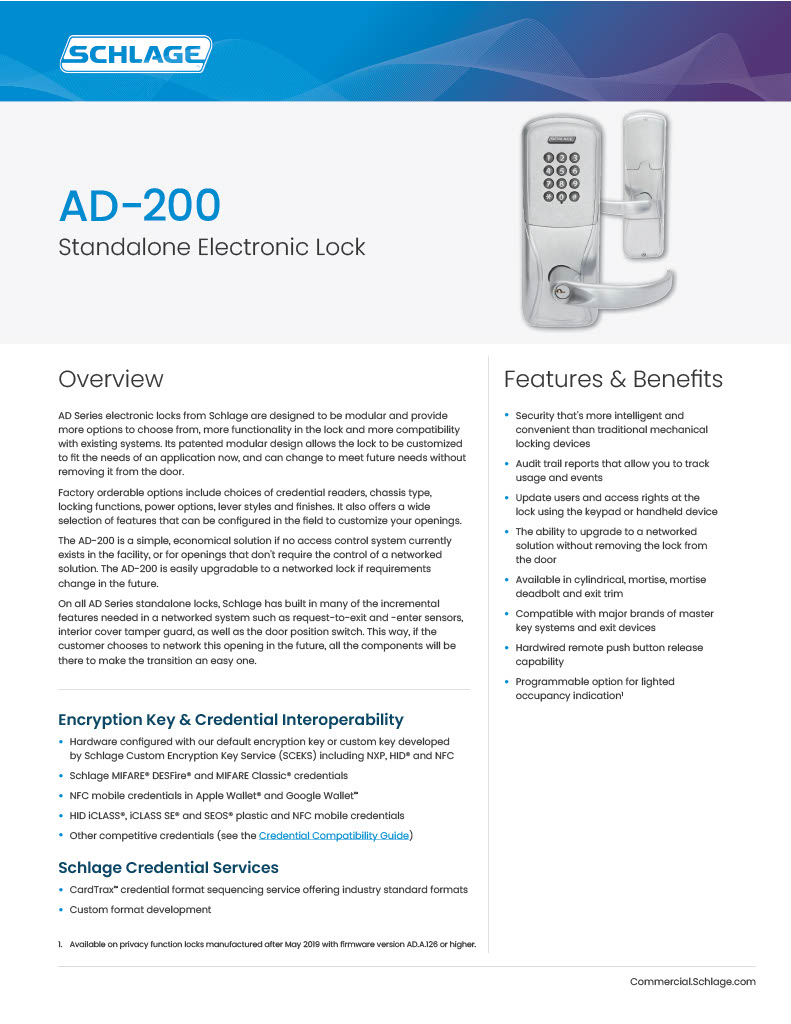

1-Page1-AD-200

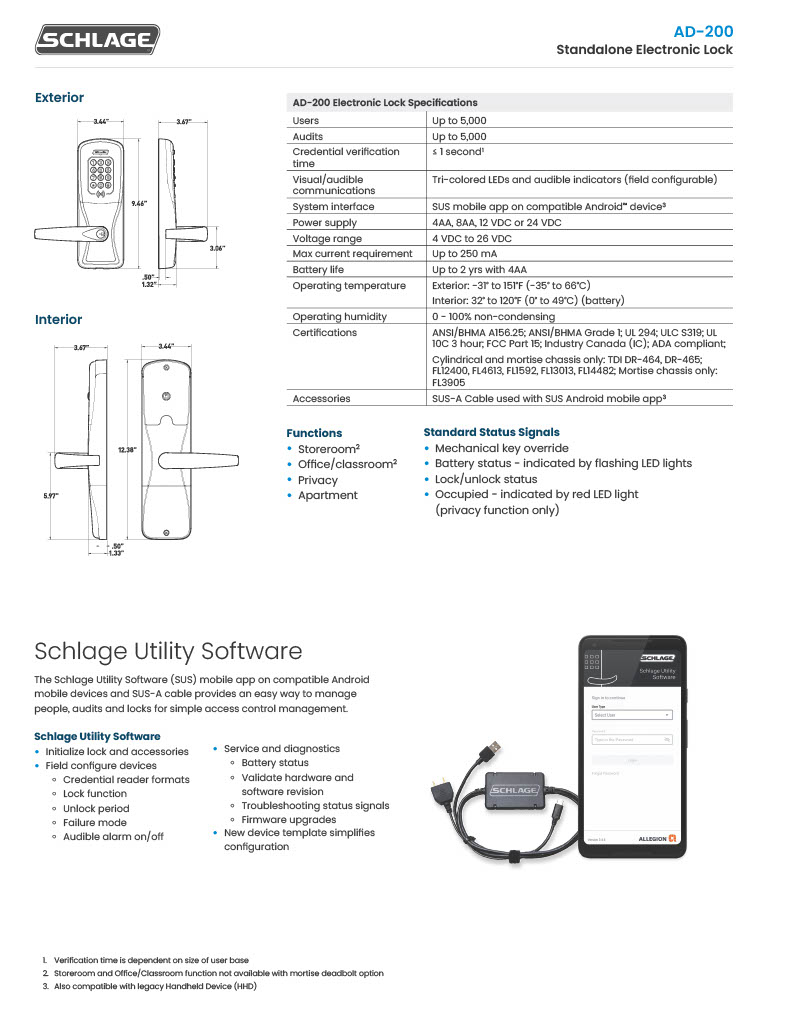

1-Page2-AD-200

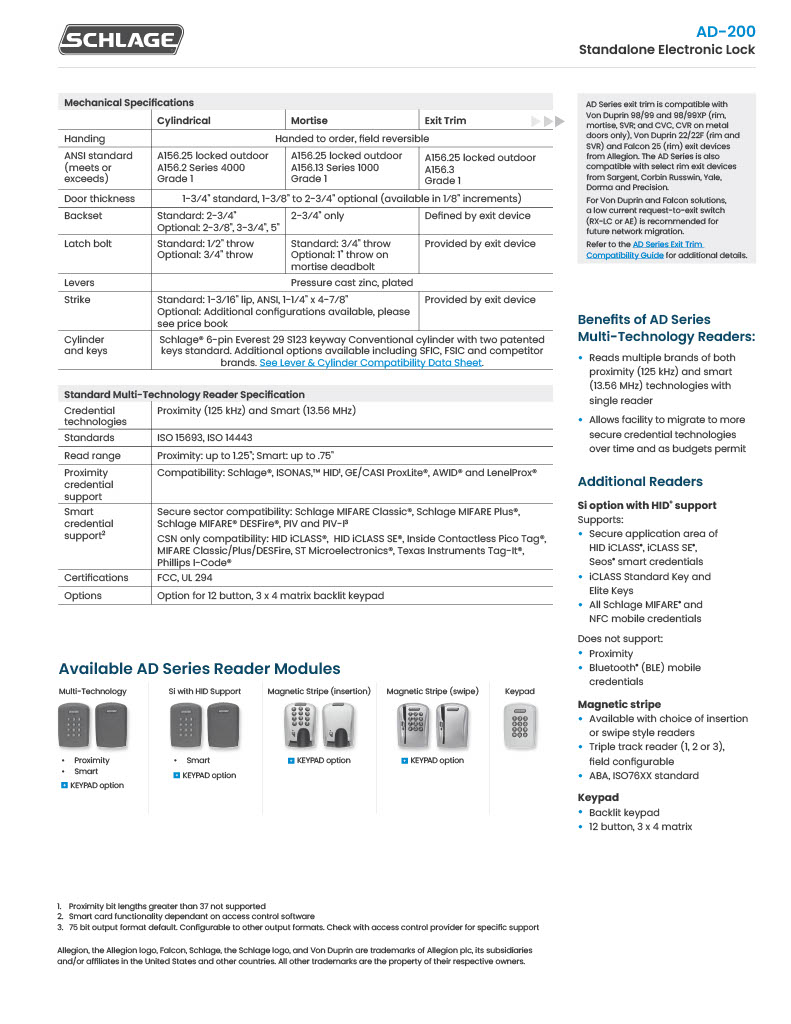

1-Page3-AD-200

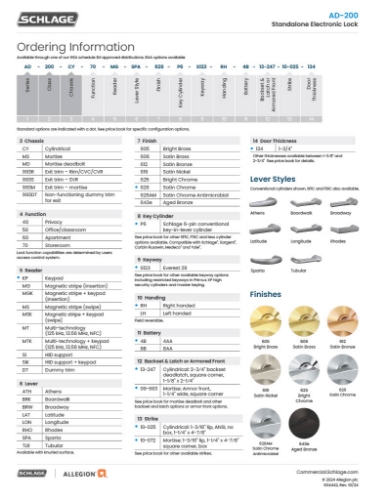

1-Page4-AD-200
AD-200-MS-70-MS
1-Page1-AD-200
1-Page2-AD-200
1-Page3-AD-200
1-Page4-AD-200
naxt
prev

Product Details

Schlage AD-200-MS-70-MS Mortise - Magnetic Stripe (Swipe) - Standalone Electronic Lock W/ Audit Trail - Classroom / Storeroom Function

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the handheld device

The Handheld Device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.(sold separately)

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

**



*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into a locked or unlocked state

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically

**

Electronical specifications

**Triple track reader (1, 2 or 3), field configurable

ABA, ISO76XX Standard**

Up to 5000 Users & up to5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31* Degree to 151 Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.13 Series 1000, Grade 1 operational and security

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" only

Latch bolt: 3⁄4" throw with anti-friction tongue standard

Levers: Steel, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center with dust box standard

Model:Schlage AD200MS70MSRHO605PD, AD200MS70MSRHO606PD, AD200MS70MSRHO612PD, AD200MS70MSRHO625PD, AD200MS70MSRHO626PD, AD200MS70MSRHO643EPD, AD200MS70MSRHO605BD, AD200MS70MSRHO606BD, AD200MS70MSRHO612BD, AD200MS70MSRHO625BD, AD200MS70MSRHO626BD, AD200MS70MSRHO643EBD, AD200MS70MSRHO605JD, AD200MS70MSRHO606JD, AD200MS70MSRHO612JD, AD200MS70MSRHO625JD, AD200MS70MSRHO626JD, AD200MS70MSRHO643EJD

Schlage AD200MS70MSSPA605PD, AD200MS70MSSPA606PD, AD200MS70MSSPA612PD, AD200MS70MSSPA625PD, AD200MS70MSSPA626PD, AD200MS70MSSPA643EPD, AD200MS70MSSPA605BD, AD200MS70MSSPA606BD, AD200MS70MSSPA612BD, AD200MS70MSSPA625BD, AD200MS70MSSPA626BD, AD200MS70MSSPA643EBD, AD200MS70MSSPA605JD, AD200MS70MSSPA606JD, AD200MS70MSSPA612JD, AD200MS70MSSPA625JD, AD200MS70MSSPA626JD, AD200MS70MSSPA643EJD

Schlage AD200MS70MSATH605PD, AD200MS70MSATH606PD, AD200MS70MSATH612PD, AD200MS70MSATH625PD, AD200MS70MSATH626PD, AD200MS70MSATH643EPD, AD200MS70MSATH605BD, AD200MS70MSATH606BD, AD200MS70MSATH612BD, AD200MS70MSATH625BD, AD200MS70MSATH626BD, AD200MS70MSATH643EBD, AD200MS70MSATH605JD, AD200MS70MSATH606JD, AD200MS70MSATH612JD, AD200MS70MSATH625JD, AD200MS70MSATH626JD, AD200MS70MSATH643EJD

Schlage AD200MS70MSTLR605PD, AD200MS70MSTLR606PD, AD200MS70MSTLR612PD, AD200MS70MSTLR625PD, AD200MS70MSTLR626PD, AD200MS70MSTLR643EPD, AD200MS70MSTLR605BD, AD200MS70MSTLR606BD, AD200MS70MSTLR612BD, AD200MS70MSTLR625BD, AD200MS70MSTLR626BD, AD200MS70MSTLR643EBD, AD200MS70MSTLR605JD, AD200MS70MSTLR606JD, AD200MS70MSTLR612JD, AD200MS70MSTLR625JD, AD200MS70MSTLR626JD, AD200MS70MSTLR643EJD

Schlage AD-200-MS-70-MS Mortise Magnetic Stripe (Swipe) Standalone Electronic Lock W/ Audit Trail - Classroom / Storeroom

SKU: AD200MS70MS

In Stock
Picture for manufacturer Schlage
icon Chat

$2,186.88

Lever *

RHO - Rhodes Lever
RHO - Rhodes Lever
SPA - Sparta Lever
SPA - Sparta Lever
ATH - Athens Lever
ATH - Athens Lever
TLR - Tubular Lever
TLR - Tubular Lever

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$76.20]
605 - Bright Brass [+$76.20]
606 - Satin Brass [+$76.20]
606 - Satin Brass [+$76.20]
612 - Satin Bronze [+$76.20]
612 - Satin Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
625 - Bright Chrome [+$76.20]
625 - Bright Chrome [+$76.20]

Cylinder *

PD - Standard Cylinder
PD - Standard Cylinder
BD - Accepts Small format IC core - less core
BD - Accepts Small format IC core - less core
JD - Accepts Large format IC core - less core [-$19.20]
JD - Accepts Large format IC core - less core [-$19.20]
LD - Accepts Standard Cylinder - less Cylinder [-$34.86]
LD - Accepts Standard Cylinder - less Cylinder [-$34.86]

About this item

AD-Series standalone locks are a cost-effective way to upgrade from traditional mechanical locking devices. They allow you to easily add and delete users, track usage and manage data – all without installing a facility-wide network. This gives you more control and allows you to manage your system more efficiently than with a traditional mechanical system.
