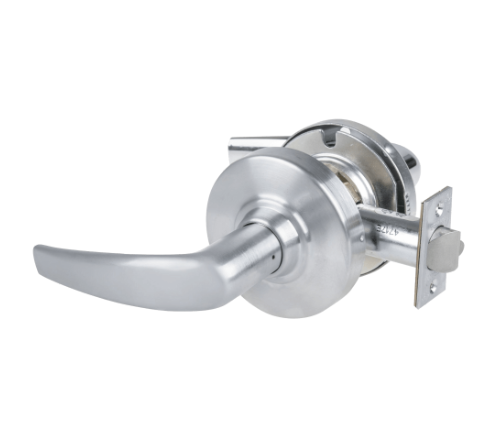

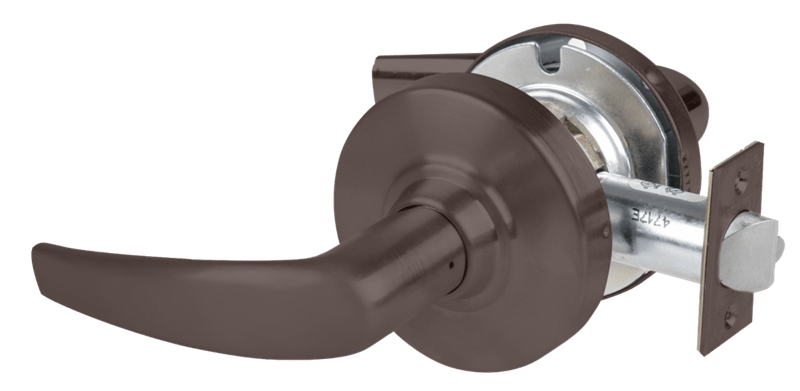

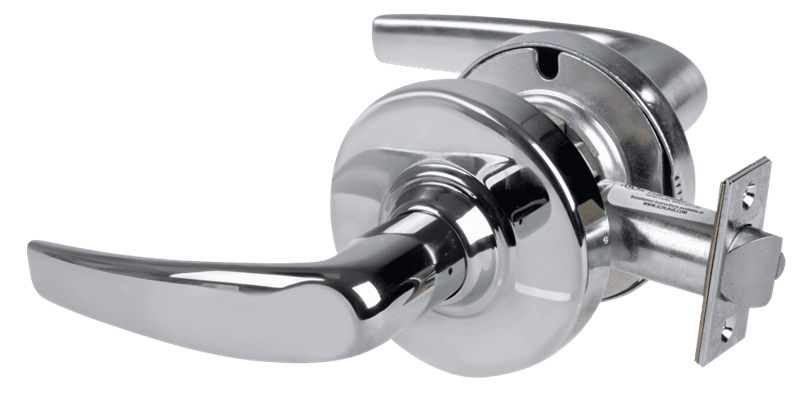

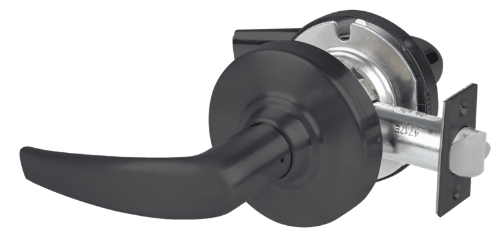

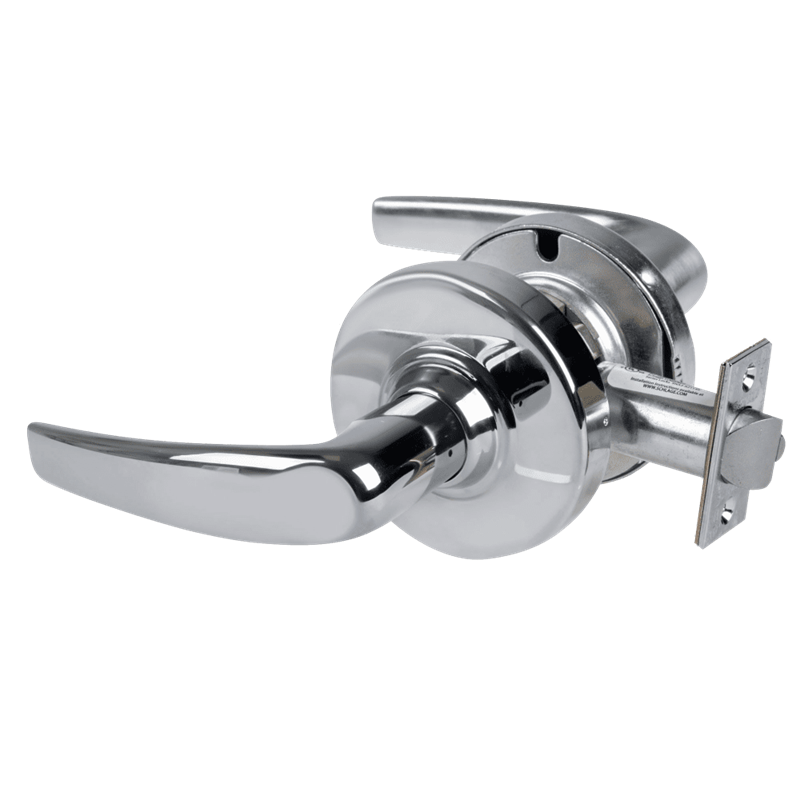

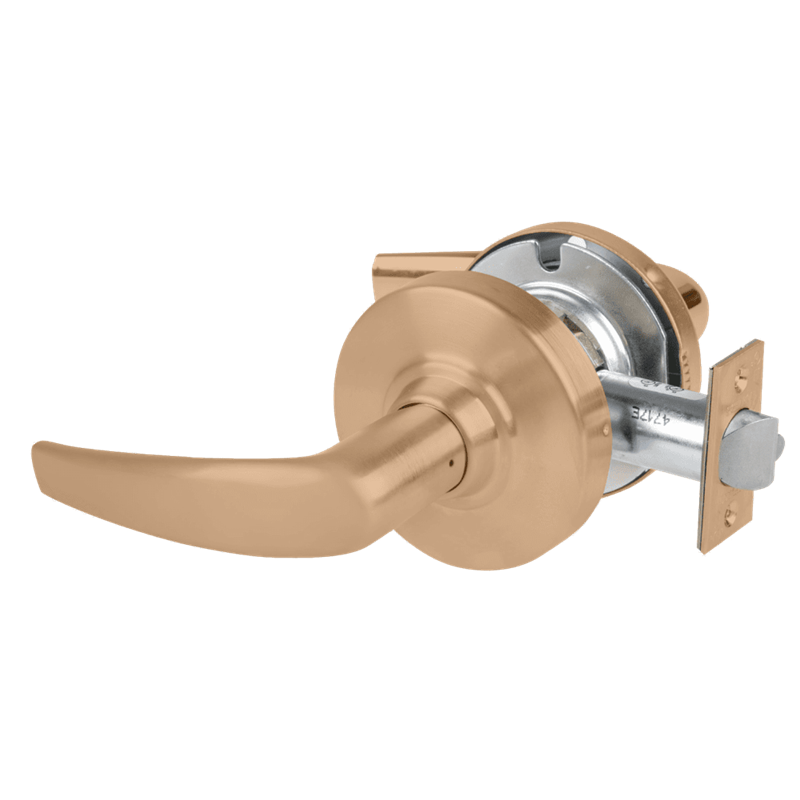

Schlage ND10S ATH Grade 1 Passage Latch, Athens Lever, Non-Keyed

Schlage ND10S ATH - Heavy Duty Passage Lever Set - Athens Style

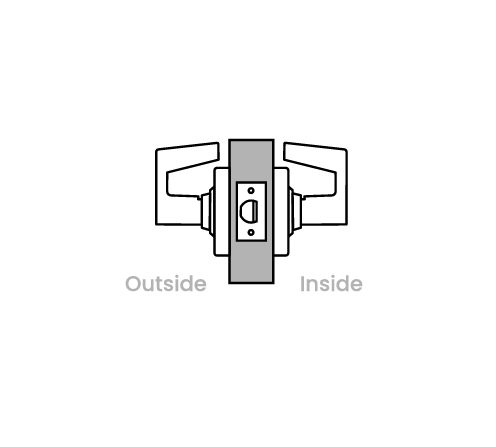

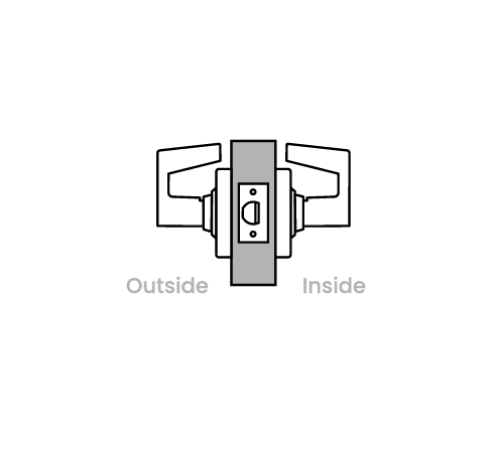

Function: Passage Latch - ANSI F75

Both levers always unlocked.

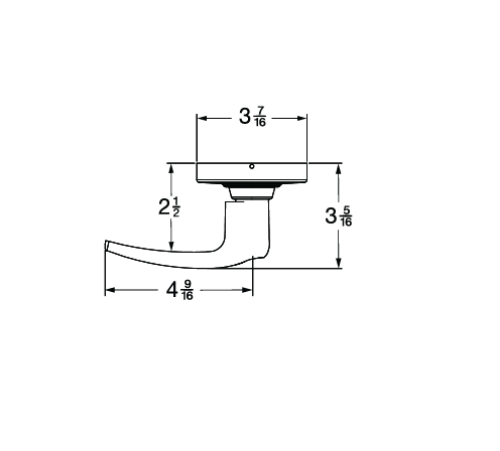

Lever Style: Athens (ATH)

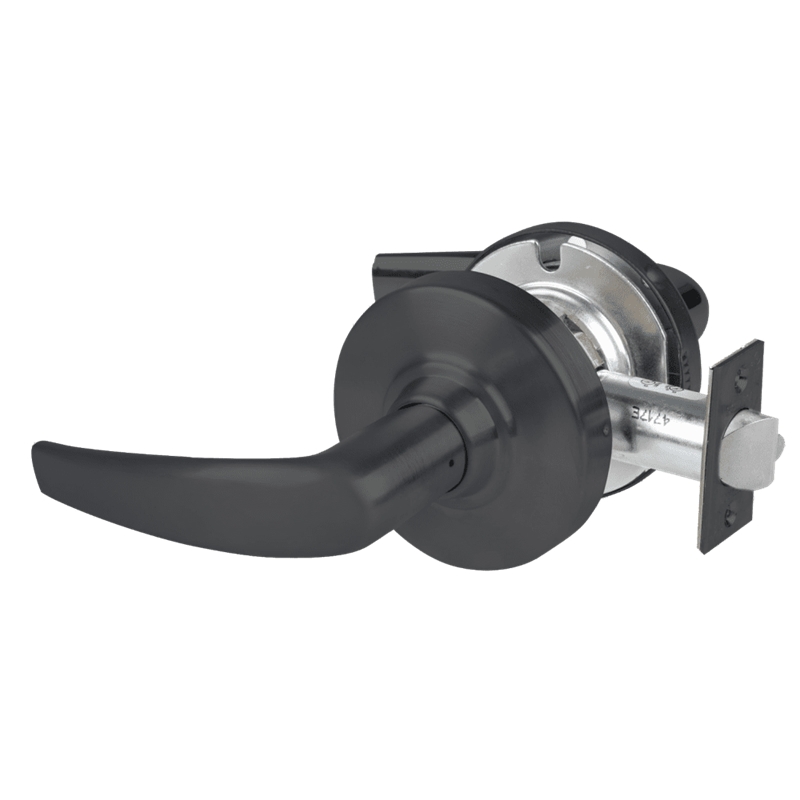

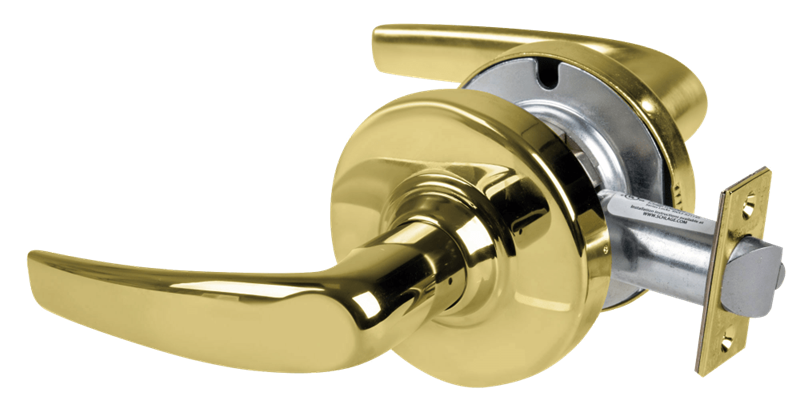

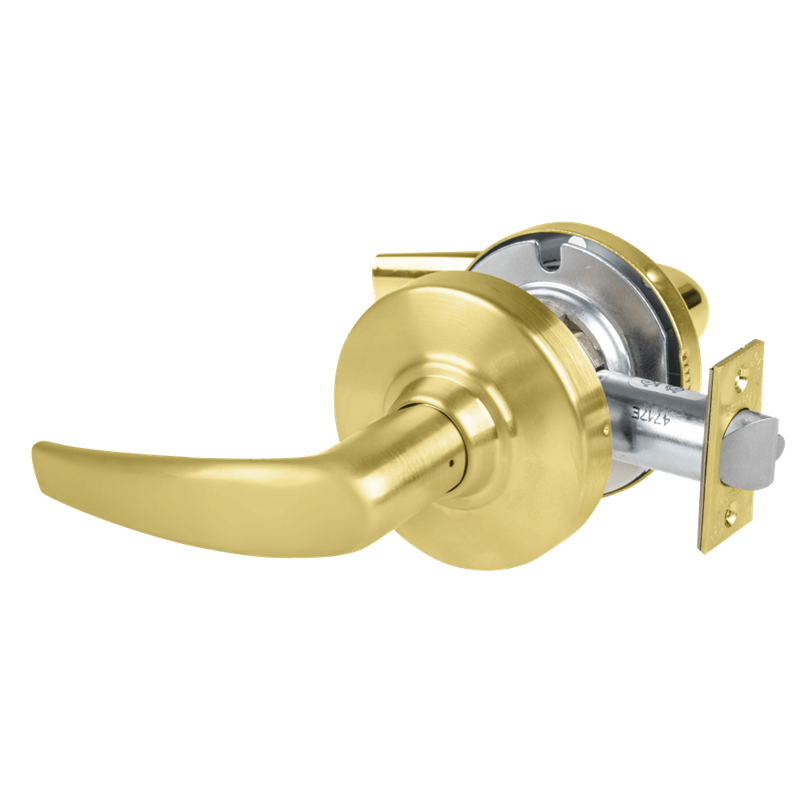

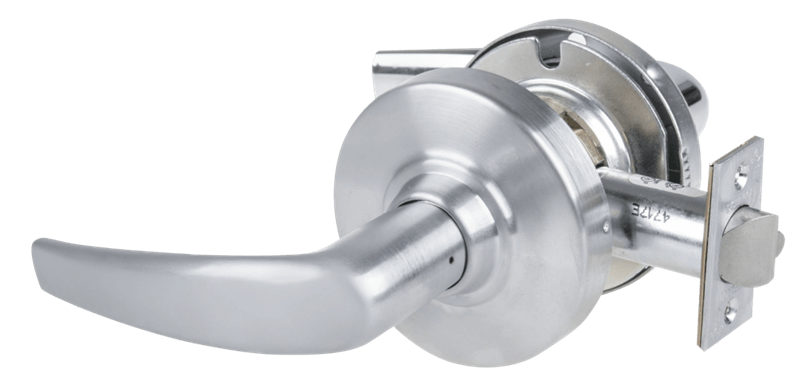

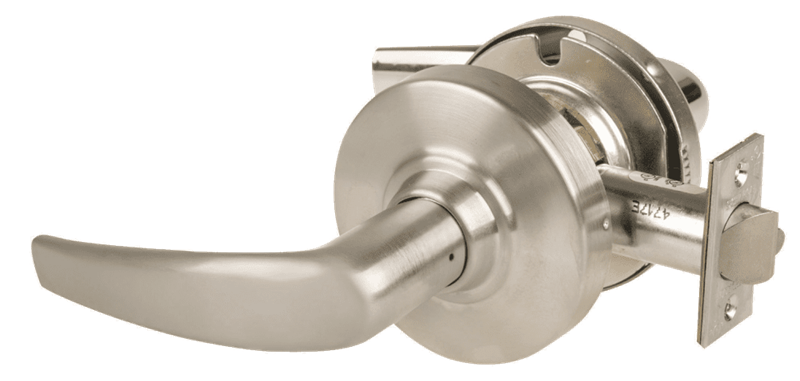

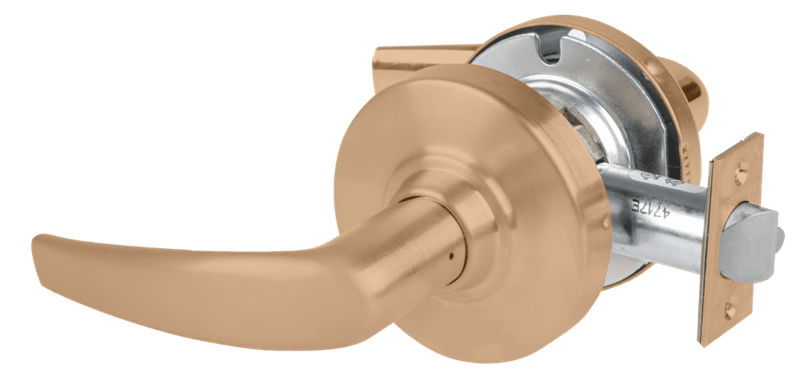

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

The door range is 1 5/8"-2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately (please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model: Schlage, ND10S, ND10, ND10SATH, ND10ATH, ND10SATH626, ND10SATH606AM, ND10ATH643E, ND10SATH625, ND10SATH622, ND10ATH619, ND10SATH613, ND10ATH612,  ND10SATH606, ND10ATH605, 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643E.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Standard Features

Cylindrical lock housing - Cold rolled steel, corrosion treated for normal atmospheric conditions

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)
