Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door

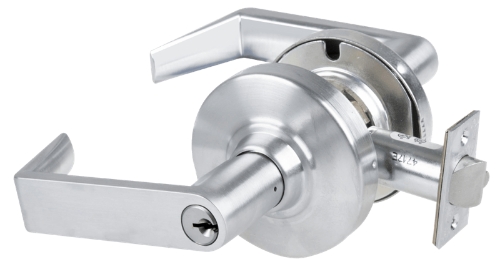

Picture of Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door
1FunckTion
1-SchlageND13
1New1Finishes
1-SchlageND35
Picture of Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door
1FunckTion
1-SchlageND13
1New1Finishes
1-SchlageND35
naxt
prev

Product Details

Schlage ND80 - Heavy Duty Storeroom Lever Lock - Extended Equally -  2-1/4" Thick Door

For door range 2" - 2 1/4"

Storeroom Lock -ANSI-F86

Outside lever is fixed. Entrance by key only. Inside lever always unlocked.

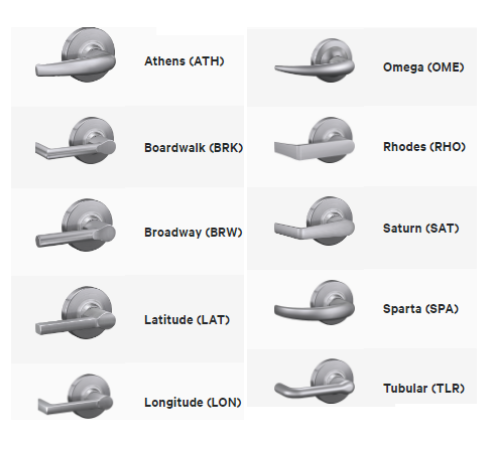

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).


Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND80PD- 6-Pin conventional (standard)

ND80LD- Conventional - Less Cylinder

ND80BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND80JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)    Electrified Locks ND-Series locks are available for electrically locking and unlocking controls for high security and fire safety applications. They are UL Listed and rated for both fire and electrical single point locking on labeled doors.   Electrical Requirements: 24V AC, .35 amps or 24V DC, .15 amps.   Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

ND80PDEU - Electrically Unlocked (Fail Secure)    ND80PDEL - Electrically Locked (Fail Safe)

Model:Schlage, ND80, EE214, ND80PDATHEE214, ND80PDRHOEE214, ND80PDTLREE214, ND80PDSPAEE214, ND80PDOMEEE214, ND80PDATH626EE214, ND80PDRHO626EE214, ND80PDTLR626EE214, ND80PDSPA626EE214, ND80PDOME626EE214,

ND80BDATHEE214, ND80BDRHOEE214, ND80BDTLREE214, ND80BDSPAEE214, ND80BDOMEEE214, ND80BDATH626EE214, ND80BDRHO626EE214, ND80BDTLR626EE214, ND80BDSPA626EE214, ND80BDOME626EE214,

ND80JDATHEE214, ND80JDRHOEE214, ND80JDTLREE214, ND80JDSPAEE214, ND80JDOMEEE214, ND80JDATH626EE214, ND80JDRHO626EE214, ND80JDTLR626EE214, ND80JDSPA626EE214, ND80JDOME626EE214,

ND80LDATHEE214, ND80LDRHOEE214, ND80LDTLREE214, ND80LDSPAEE214, ND80LDOMEEE214, ND80LDATH626EE214, ND80LDRHO626EE214, ND80LDTLR626EE214, ND80LDSPA626EE214, ND80LDOME626EE214

ATH, RHO, TLR, SPA, OME, 605, 606, 612, 613, 619, 625, 626.

Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door

SKU: ND80EE214

In Stock
Picture for manufacturer Schlage
icon Chat

$1,036.22

Cylinder *

PD - 6-Pin conventional "C" Keyway (standard)
PD - 6-Pin conventional "C" Keyway (standard)
PD - 6-Pin conventional "E" Keyway
PD - 6-Pin conventional "E" Keyway
PD - 6-Pin conventional "Everest C123" Keyway
PD - 6-Pin conventional "Everest C123" Keyway
PD - 6-Pin conventional "Everest C145" Keyway
PD - 6-Pin conventional "Everest C145" Keyway
BD - Small format IC core - less core
BD - Small format IC core - less core
JD - Large format IC core - less core
JD - Large format IC core - less core
LD - Conventional - Less Cylinder [-$42.84]
LD - Conventional - Less Cylinder [-$42.84]

Lever *

Rhodes (RHO)
Rhodes (RHO)
Athens (ATH)
Athens (ATH)
Sparta (SPA)
Sparta (SPA)
Tubular (TLR)
Tubular (TLR)
Omega (OME)
Omega (OME)

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$7.56]
605 - Bright Brass [+$7.56]
606 - Satin Brass [+$7.56]
606 - Satin Brass [+$7.56]
612 - Satin Bronze [+$7.56]
612 - Satin Bronze [+$7.56]
613 - Oil Rubbed Bronze [+$18.90]
613 - Oil Rubbed Bronze [+$18.90]
619 - Satin Nickel [+$7.56]
619 - Satin Nickel [+$7.56]
625 - Bright Chrome [+$7.56]
625 - Bright Chrome [+$7.56]

Backset *

2-3/4" Backset
2-3/4" Backset
2-3/8" Backset
2-3/8" Backset

Strike *

ANSI Strike - 4-7/8"
ANSI Strike - 4-7/8"
T Strike - 2-3/4"
T Strike - 2-3/4"

Electrified *

Keying

About this item

The Schlage Special ND80 EE214 is the Grade 1 storeroom cylindrical lever lock from the Schlage ND Series, factory-configured with an extended equally (EE) spindle for installation on doors with a total thickness of 2-1/4 inches. The EE214 designation is what separates this unit from a standard ND80 lockset. Where a standard ND80 ships for doors in the 1-5/8" to 2-1/8" thickness range, the EE214 extension spindle adds equal projection to both the inside and outside trim, giving the lock the spindle reach needed to mount correctly on thicker commercial and institutional doors without an adapter plate or field modification.



ND80 Storeroom Function: Outside Lever Always Locked



The ND80 storeroom function keeps the outside lever permanently locked. Entry from outside requires a key on every access event. The inside lever always operates freely for immediate egress. There is no push button, no thumbturn, and no toggle state. The outside lever is locked regardless of what happens on the inside, which makes the storeroom function the correct specification for pharmacy controlled substance rooms, IT server rooms, evidence storage, secure utility closets, and any restricted access opening where the door must never be unlocked from the outside without a key.



The deadlocking auxiliary latch deadlocks the primary latch bolt when the door is fully closed, which prevents shimming or sliding attacks on the latch bolt.



What EE214 Means and Why It Matters



On the Schlage ND Series, door thickness extensions are specified in 1/8-inch increments. ND Series locks measure door thickness for ordering by rounding up to the next 1/8-inch increment. EE214 means Extended Equally, 2-1/4 inches, covering the door range from 2-1/8" to 2-1/4" thick. EE indicates the spindle extends equally on both sides of the door, so the trim projection from the door face is symmetric on the inside and outside. If the spindle were extended only on the outside (EO) or only on the inside (EI), the rose position would be off-center on one face.



Specifying the wrong thickness code means the lever doesn't seat flush against the door face and the chassis doesn't tighten correctly. The EE214 ships ready for 2-inch to 2-1/4-inch thick doors, which covers oversized hollow metal doors, solid wood entrance doors, stacked security door assemblies, and commercial vault-adjacent door installations.



Schlage ND Series Grade 1 Specifications



The Schlage ND Series has been certified Grade 1 and independently tested to exceed 3 million operating cycles without failure. ND80 is tested to withstand 3,100 in-lb of abusive lever torque, more than 2.5 times the ANSI Grade 1 standard requirement, and 1,600 lbs of offset lever pull force against pry bar attacks.



  • Function: ND80 Storeroom (outside lever always locked, key required)

  • Extension: EE214, Extended Equally, 2" to 2-1/4" door thickness

  • Cylinder: 6-pin conventional Schlage C keyway (PD standard); SFIC and LFIC prep available

  • Backset: 2-3/4" standard

  • Latch: 1-1/8" x 2-1/4", square corner, 1/2" throw, deadlocking

  • ANSI: A156.2 Series 4000 Grade 1

  • UL: UL/cUL listed, 3-hour A-label fire door, single door 4'-0" x 10'-0"

  • Handing: Non-handed, field reversible

  • Applications: Healthcare, education, government, offices, retail, industrial facilities

  • SKU: ND80EE214



Resources

Schlage ND80 - Heavy Duty Storeroom Lever Lock - Extended Equally -  2-1/4" Thick Door

For door range 2" - 2 1/4"

Storeroom Lock -ANSI-F86

Outside lever is fixed. Entrance by key only. Inside lever always unlocked.

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).


Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND80PD- 6-Pin conventional (standard)

ND80LD- Conventional - Less Cylinder

ND80BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND80JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)    Electrified Locks ND-Series locks are available for electrically locking and unlocking controls for high security and fire safety applications. They are UL Listed and rated for both fire and electrical single point locking on labeled doors.   Electrical Requirements: 24V AC, .35 amps or 24V DC, .15 amps.   Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

ND80PDEU - Electrically Unlocked (Fail Secure)    ND80PDEL - Electrically Locked (Fail Safe)

Model:Schlage, ND80, EE214, ND80PDATHEE214, ND80PDRHOEE214, ND80PDTLREE214, ND80PDSPAEE214, ND80PDOMEEE214, ND80PDATH626EE214, ND80PDRHO626EE214, ND80PDTLR626EE214, ND80PDSPA626EE214, ND80PDOME626EE214,

ND80BDATHEE214, ND80BDRHOEE214, ND80BDTLREE214, ND80BDSPAEE214, ND80BDOMEEE214, ND80BDATH626EE214, ND80BDRHO626EE214, ND80BDTLR626EE214, ND80BDSPA626EE214, ND80BDOME626EE214,

ND80JDATHEE214, ND80JDRHOEE214, ND80JDTLREE214, ND80JDSPAEE214, ND80JDOMEEE214, ND80JDATH626EE214, ND80JDRHO626EE214, ND80JDTLR626EE214, ND80JDSPA626EE214, ND80JDOME626EE214,

ND80LDATHEE214, ND80LDRHOEE214, ND80LDTLREE214, ND80LDSPAEE214, ND80LDOMEEE214, ND80LDATH626EE214, ND80LDRHO626EE214, ND80LDTLR626EE214, ND80LDSPA626EE214, ND80LDOME626EE214

ATH, RHO, TLR, SPA, OME, 605, 606, 612, 613, 619, 625, 626.

Picture of Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door
Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door

Product code: ND80EE214

In Stock

$1,036.22

$1,036.22

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions Key removable o utside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:Seven-year limited warranty for all functions including Vandlgard.   Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Picture of Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door
Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door

Product code: ND80EE214

In Stock

$1,036.22

$1,036.22

Schlage Special ND80 EE214 Grade 1 Storeroom Lock - Extended Equally - 2-1/4" Thick Door

SKU: ND80EE214

Parts & Accessories

43-005
Schlage 43-005 Extension link for 5" Backset

Product code: W561BD

In Stock
$49.90

$31.44

prev
prev

Related products

platstststsz
Schlage Special ND10S EE214 Passage Latch - Extended Equally - 2-1/4" Thick Door

Product code: W561BD

In Stock
$1,405.80

$885.65

platstststsz
Schlage Special ND10S EE212 Passage Latch, Extended Equally 2-1/2" Thick Door

Product code: W561BD

In Stock
$1,405.80

$885.65

1nOrmalsz

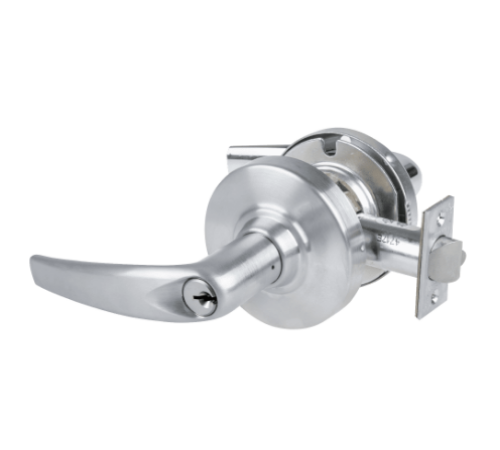

Schlage Special ND53 EE214 Grade 1 Entrance Lock - Extended Equally - 2-1/4" Thick Door
