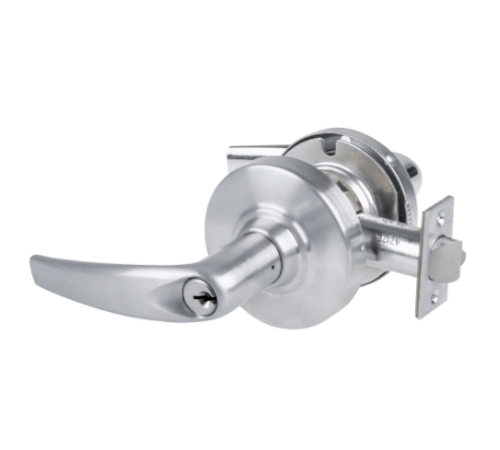

Schlage Special ND53 EE212 Grade 1 Entrance Lock - Extended Equally - 2-1/2" Thick Door

About this item

The Schlage ND53 EE212 is a Grade 1 entrance lever lock from the Schlage ND Series, configured with extended spindle and trim to fit doors that are 2-1/2 inches thick. The EE212 suffix identifies the extended-equally configuration for 2-1/2 inch door thickness. This is a special application version of the standard ND53PD entrance lock, pre-assembled for thick door applications that fall outside the standard 1-5/8 inch to 2-1/8 inch door thickness range. ANSI Function F109. American Locksets is an authorized Allegion Schlage dealer stocking the ND53 EE212 with same-day shipping and free shipping on orders over $300.

Schlage ND53 Entrance Function: How It Works

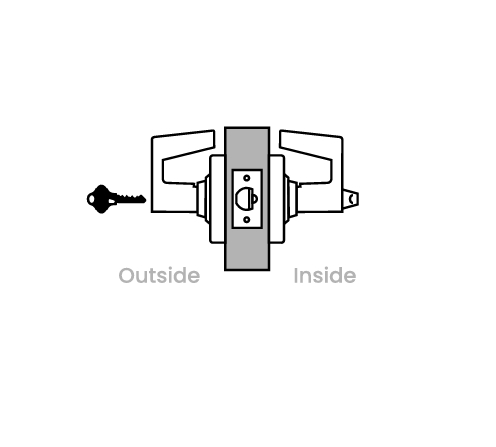

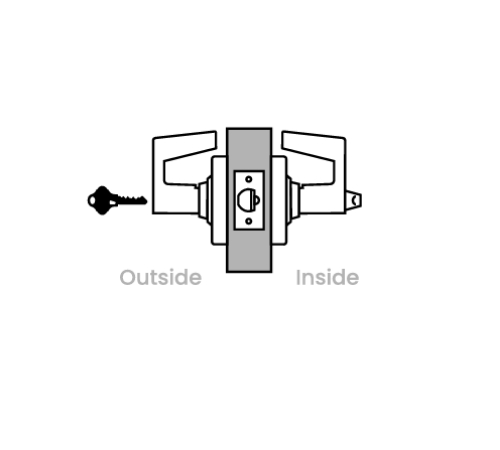

The ND53 is ANSI Function F109, the entrance/office function. It operates with two locking modes from a single push button:

Turn and push button locking: Pushing and turning the inside button simultaneously locks the outside lever. The outside lever then requires a key to unlock until the button is manually released from inside. This is the maintained locking mode used when securing the door with the occupant inside.

Push button locking: Pushing the inside button without turning it locks the outside lever until the key is used from the outside or the inside lever is rotated, which releases the button. This provides temporary exterior locking that automatically resets when the door is operated from inside.

In both modes, the inside lever is always free for immediate egress. The outside lever deadlocks the latchbolt when locked, preventing shimming or forcing from the exterior.

What EE212 Means: Extended Equally for 2-1/2 Inch Doors

Standard ND Series locks fit doors 1-5/8 inch to 2-1/8 inch thick. For doors thicker than 2-1/8 inch, Schlage offers extended spindle and trim configurations. The EE designation means extended equally, which adds equal amounts to both the outside and inside trim to center the lock within the door thickness. EE212 indicates the 2-1/2 inch door thickness specification.

This configuration is specified on thick solid core wood doors, heavy steel security doors, lead-lined doors in medical imaging rooms, specialized institutional and detention doors, and other applications where the structural or functional requirements result in a door thickness exceeding the standard range. The ND Series supports door thickness from 1-3/8 inch up to 6 inch by specifying door thickness and position (EE, EI, EO, ED) at order.

Schlage ND53 EE212 Specifications

• SKU: ND53EE212

• ANSI Function: F109, Entrance/Office. Turn/push button locking. Inside lever always free for immediate egress

• Door Thickness: 2-1/2 inch (EE212: Extended Equally). Standard ND53 range is 1-5/8 inch to 2-1/8 inch; this configuration is factory assembled for 2-1/2 inch doors

• Series: Schlage ND Series Grade 1 Cylindrical Lever Locks

• Grade: ANSI/BHMA A156.2 Series 4000 Grade 1. Significantly exceeds Grade 1 requirements

• Cycle Testing: Tested at minimum 3.2 million cycles (4x the 800,000 cycle ANSI Grade 1 requirement)

• Locked Lever Torque: Withstands minimum 3,100 inch-pounds abusive locked lever torque

• Offset Lever Pull: Withstands minimum 1,600 foot-pounds offset lever pull against pry bar attacks

• Latchbolt: 1/2 inch throw, oil impregnated stainless steel, deadlocking on keyed and exterior functions. 3/4 inch throw anti-friction bolt for paired doors available

• Backset: 2-3/4 inch standard. 2-3/8 inch, 3-3/4 inch, and 5 inch optional

• Faceplate: 1-1/8 inch x 2-1/4 inch square corner, beveled. Brass, bronze, or stainless steel

• Strike: ANSI curved lip 1-1/4 inch x 4-7/8 inch standard

• Handing: Non-handed

• UL: 3-hour A-label fire door single 4 feet x 10 feet and paired 8 feet x 8 feet

• Cylinder: Standard Everest 29 S123 keyway. SFIC (BD), FSIC (JD), and less cylinder (LD) options available
