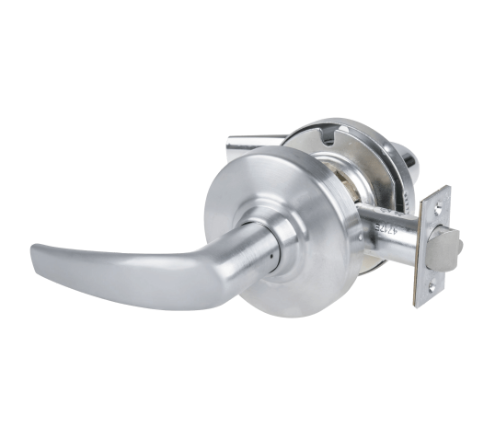

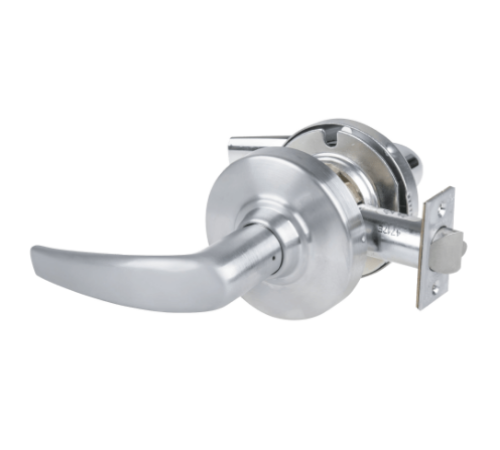

Schlage Special ND10S EE214 Passage Latch - Extended Equally - 2-1/4" Thick Door

Schlage ND10S EE214 Heavy Duty Passage Lever Set - Extended Equally - 2-1/4" Thick Door

For door range 2" - 2 1/4"

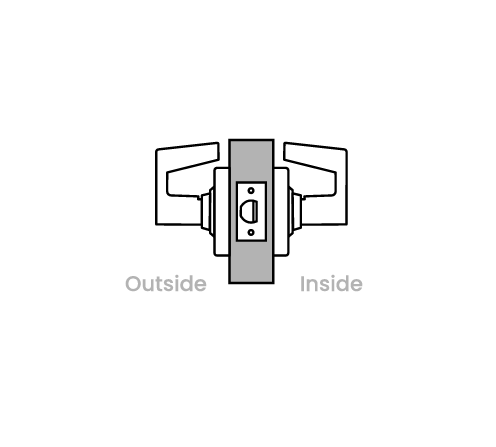

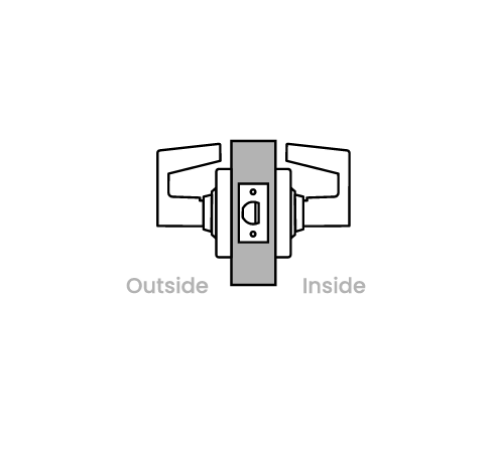

Function:Passage Latch - ANSI F75

Both levers always unlocked.

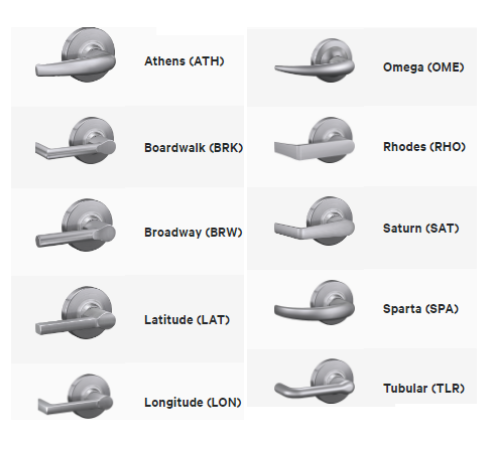

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).

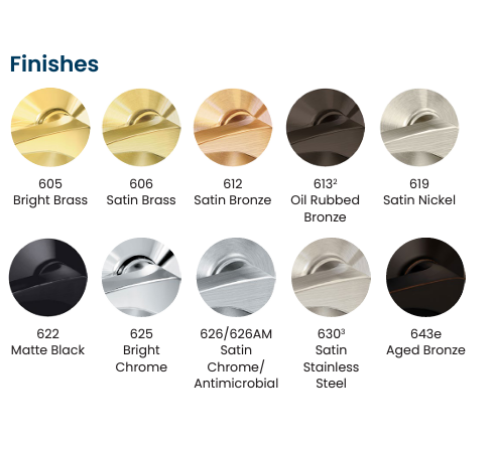

Finishes:605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

Backset:2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt:Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).   Strikes:ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model:Schlage, ND10S, ND10, EE214, 214EE, ND10SATHEE214, ND10SRHOEE214 ND10STLREE214, ND10SSPAEE214, ND10SOMEEE214, ND10ATHEE214, ND10RHOEE214, ND10TLREE214, ND10PAEE214, ND10OMEEE214, ND10SATH626EE214, ND10SRHO626EE214, ND10STLR626EE214, ND10SSPA626EE214, ND10SOME626EE214, ND10ATH626EE214, ND10RHO626EE214, ND10TLR626EE214, ND10SPA626EE214, ND10OME626EE214, 605, 606, 612, 613, 619, 625, 626.

Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Warranty:Seven-year limited warranty for all functions including Vandlgard.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Standard Features

Cylindrical lock housing - Cold rolled steel, corrosion treated for normal atmospheric conditions

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)
