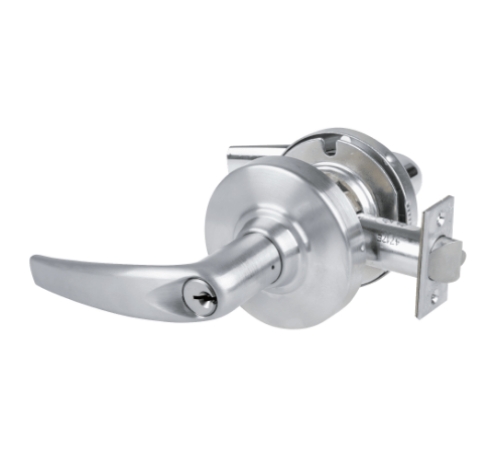

Schlage Special ND80 EE212 Grade 1 Storeroom Lock - Extended Equally - 2-1/2" Thick Door

Schlage ND80 - Heavy Duty Storeroom Lever Lock - Extended Equally -  2-1/2" Thick Door

For door range 2 1/4" - 2 1/2"

Storeroom Lock -ANSI-F86

Outside lever is fixed. Entrance by key only. Inside lever always unlocked.

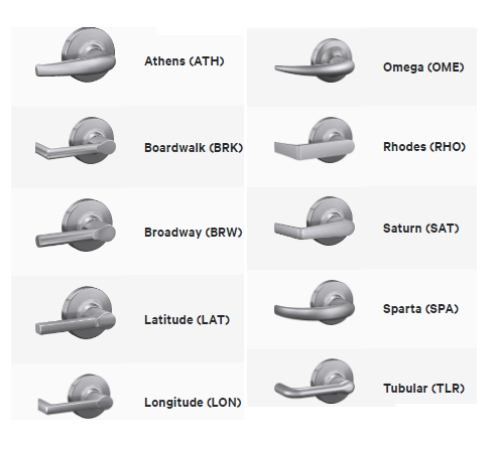

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).

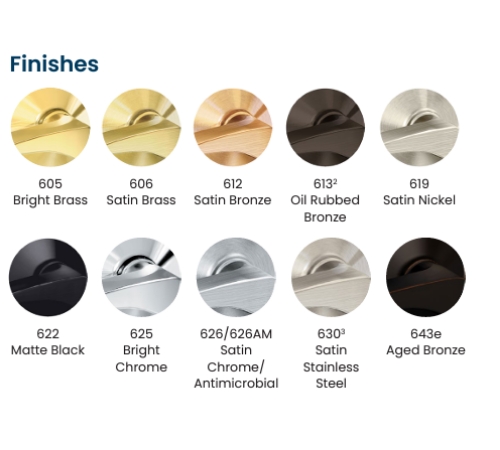

Finishes:605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

Backset:2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt:Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).

Strikes:ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND80PD- 6-Pin conventional (standard)

ND80LD- Conventional - Less Cylinder

ND80BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND80JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Electrified Locks ND-Series locks are available for electrically locking and unlocking controls for high security and fire safety applications. They are UL Listed and rated for both fire and electrical single point locking on labeled doors.   Electrical Requirements: 24V AC, .35 amps or 24V DC, .15 amps.   Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

ND80PDEU - Electrically Unlocked (Fail Secure)

ND80PDEL - Electrically Locked (Fail Safe)

Model:Schlage, ND80, EE212, ND80PDATHEE212, ND80PDRHOEE212, ND80PDTLREE212, ND80PDSPAEE212, ND80PDOMEEE212, ND80PDATH626EE212, ND80PDRHO626EE212, ND80PDTLR626EE212, ND80PDSPA626EE212, ND80PDOME626EE212,

ND80BDATHEE212, ND80BDRHOEE212, ND80BDTLREE212, ND80BDSPAEE212, ND80BDOMEEE212, ND80BDATH626EE212, ND80BDRHO626EE212, ND80BDTLR626EE212, ND80BDSPA626EE212, ND80BDOME626EE212,

ND80JDATHEE212, ND80JDRHOEE212, ND80JDTLREE212, ND80JDSPAEE212, ND80JDOMEEE212, ND80JDATH626EE212, ND80JDRHO626EE212, ND80JDTLR626EE212, ND80JDSPA626EE212, ND80JDOME626EE212,

ND80LDATHEE212, ND80LDRHOEE212, ND80LDTLREE212, ND80LDSPAEE212, ND80LDOMEEE212, ND80LDATH626EE212, ND80LDRHO626EE212, ND80LDTLR626EE212, ND80LDSPA626EE212, ND80LDOME626EE212

ATH, RHO, TLR, SPA, OME, 605, 606, 612, 613, 619, 625, 626.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions Key removable o utside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
