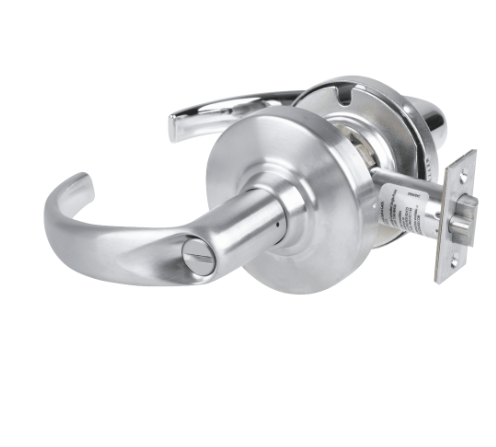

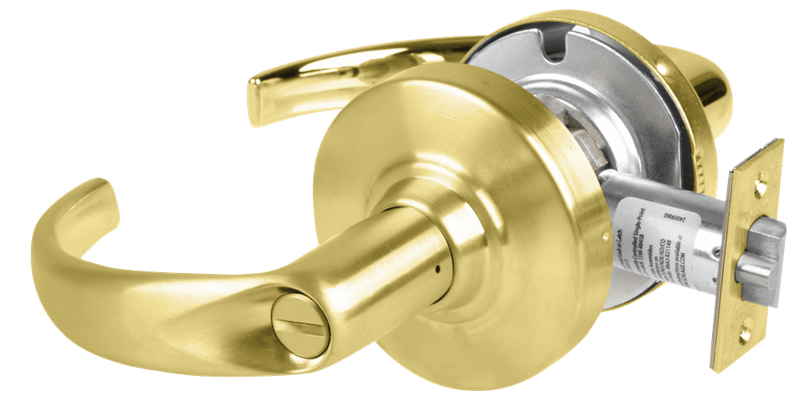

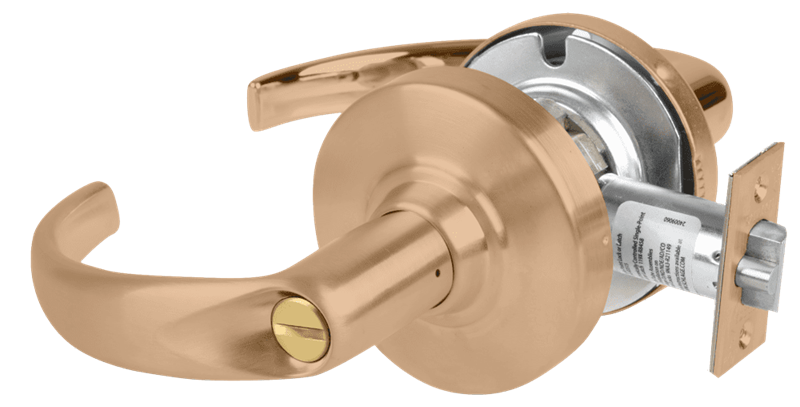

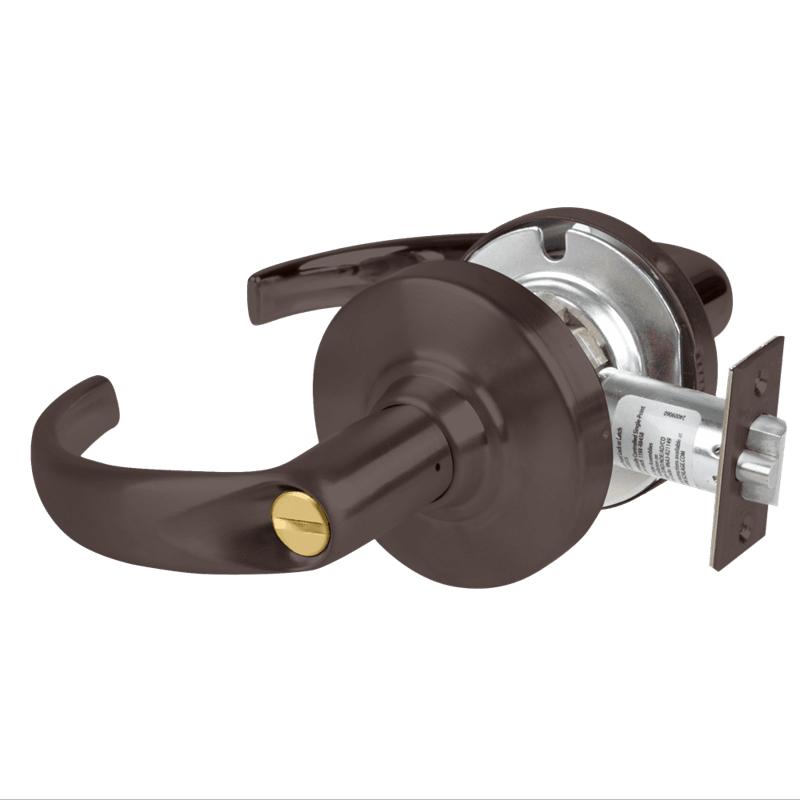

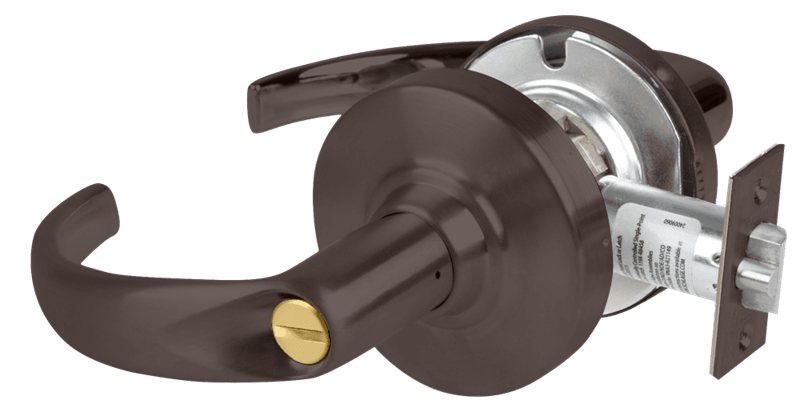

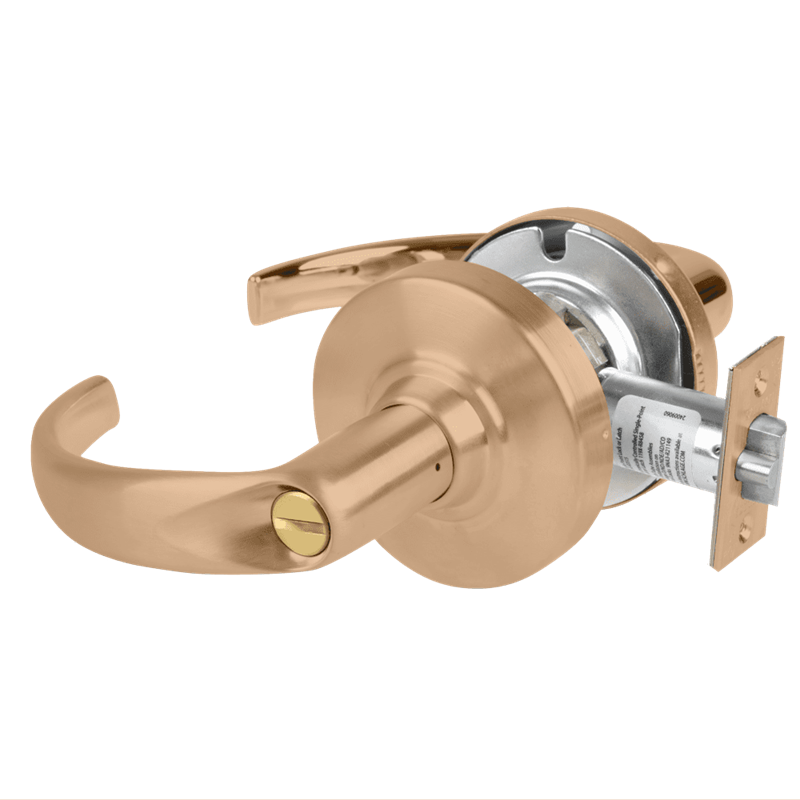

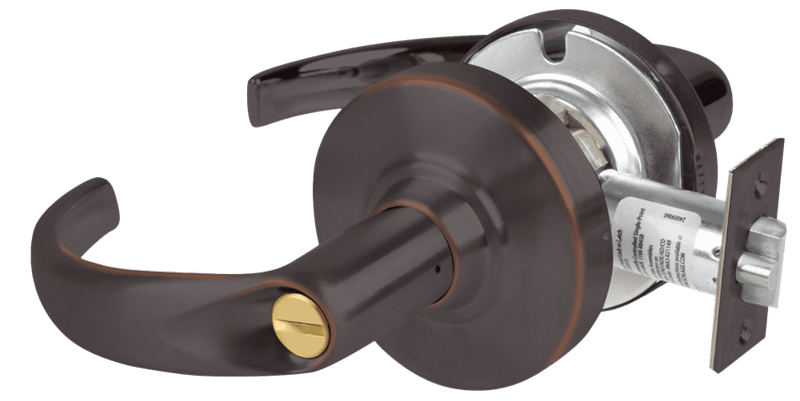

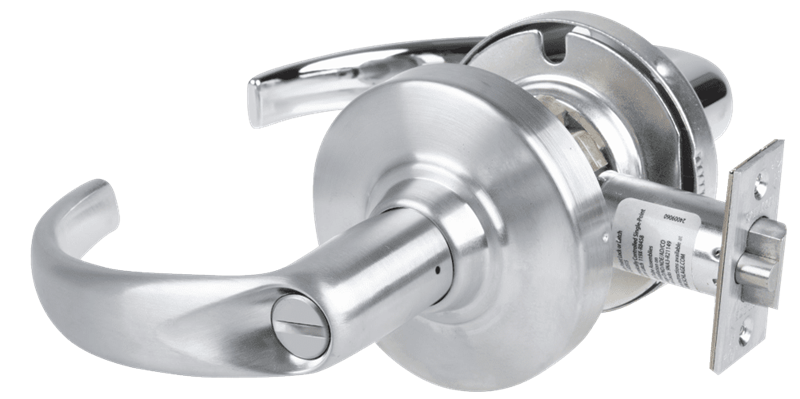

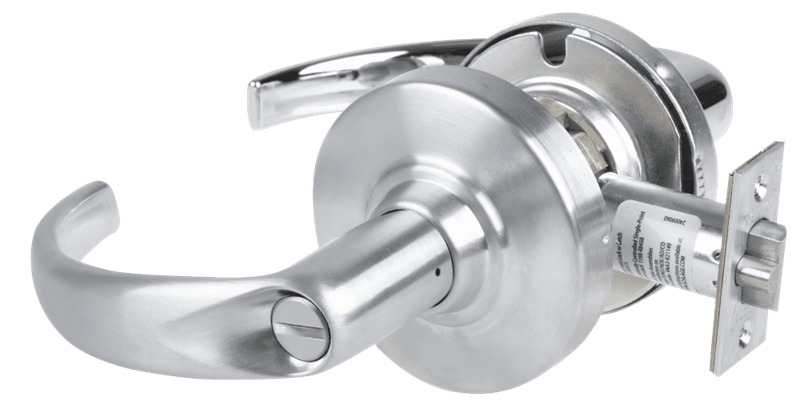

Schlage ND40S SPA - Grade 1 Bath/Bedroom Privacy Lock, Sparta Lever, Non-Keyed

Schlage ND40S SPA - Heavy Duty Privacy Lever Set - Sparta Style

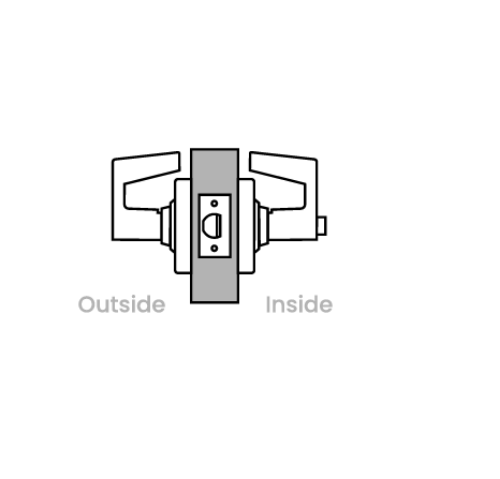

Privacy Lock - Bath/Bedroom -ANSI F76

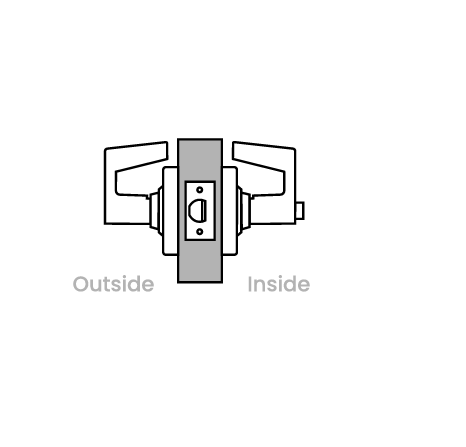

Push-button locking. Can be opened from outside with a small screwdriver. Turn inside lever or close door to release button.

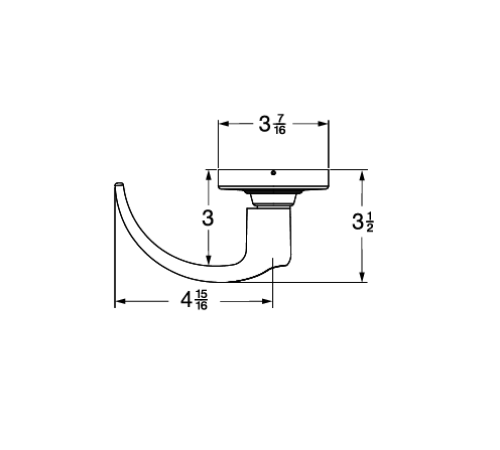

Lever Styles: Sparta (SPA)

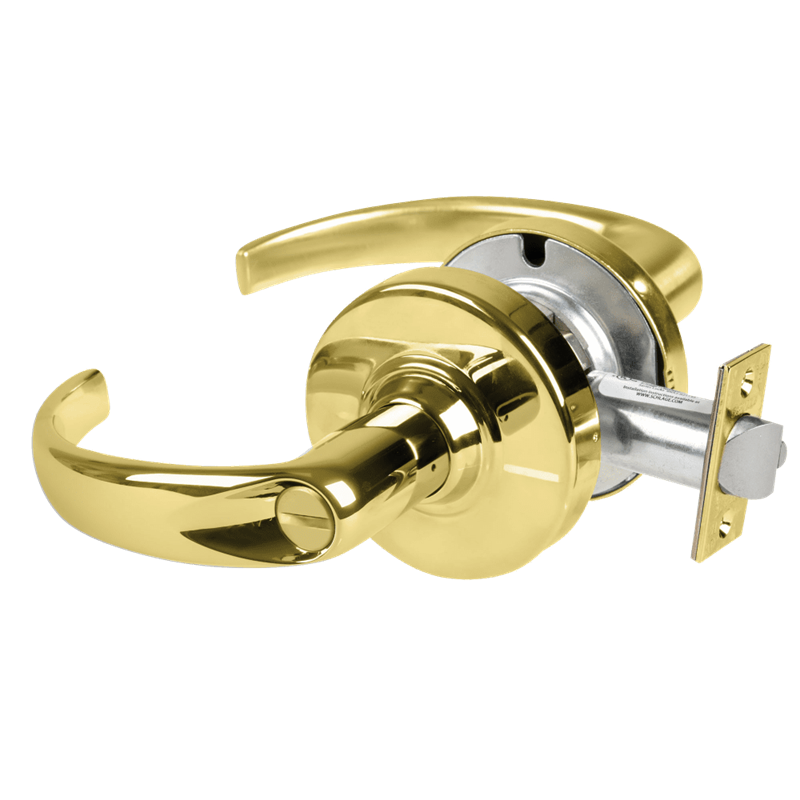

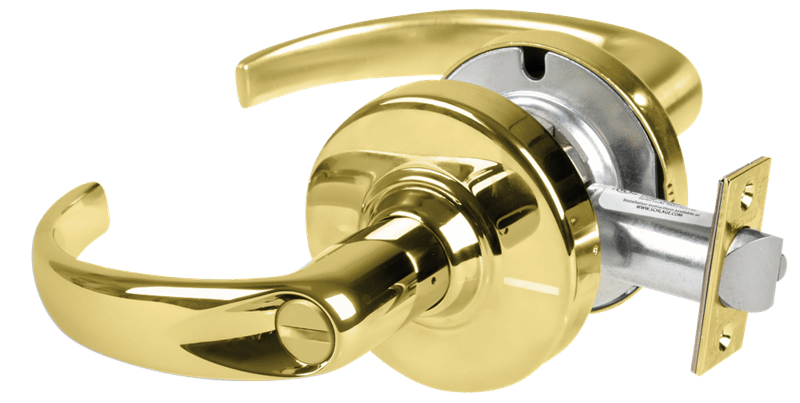

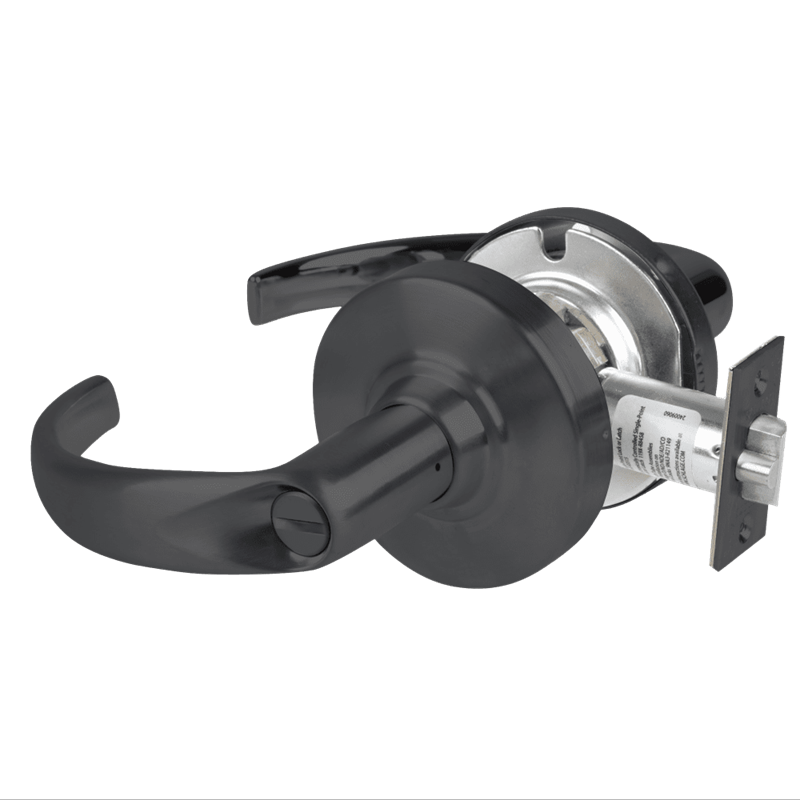

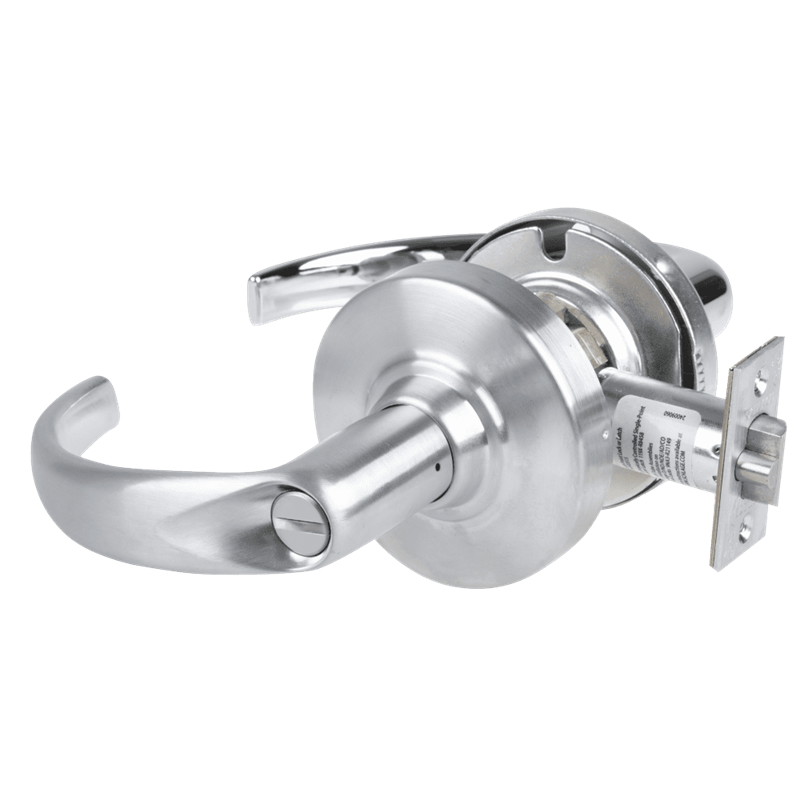

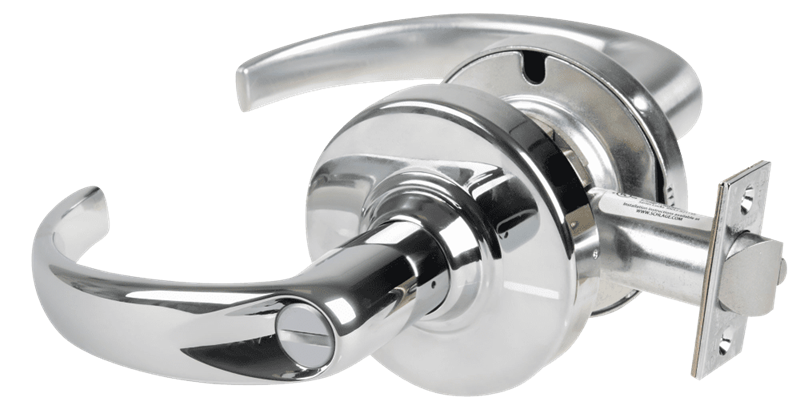

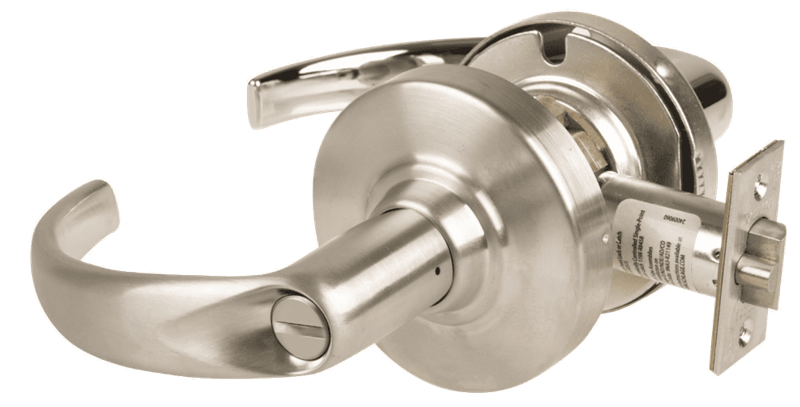

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 622 - Matte Black, 625 - Bright Chrome, 626 - Satin Chrome,626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed. The door range is 1 5/8"-2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model: Schlage, ND40S, ND40, ND40SSPA605,  ND40SSPA606,  ND40SSPA612,  ND40SSPA613,  ND40SSPA619, ND40SSPA622 ND40SSPA625,  ND40SSPA626, ND40SSPA626AM, ND40SSPA643E,  605, 606, 612, 613, 619, 622 625, 626, 6262AM.

Exposed Trim: Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Warranty:

Seven-year limited warranty for all functions including Vandlgard. Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Standard Features:

Cylindrical lock housing - Cold rolled steel, corrosion treated for normal atmospheric conditions

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)
