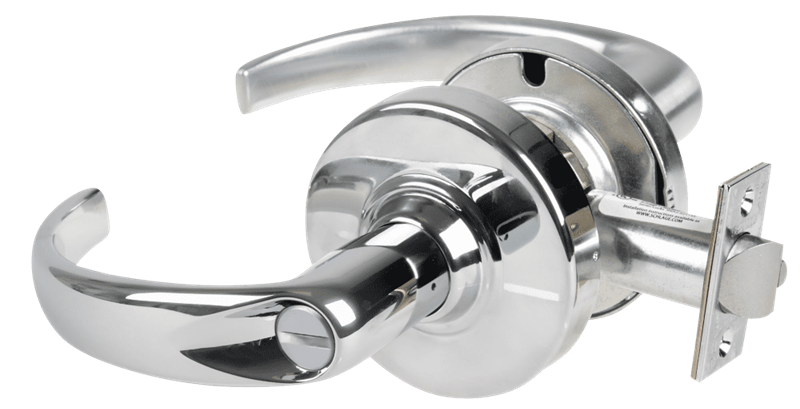

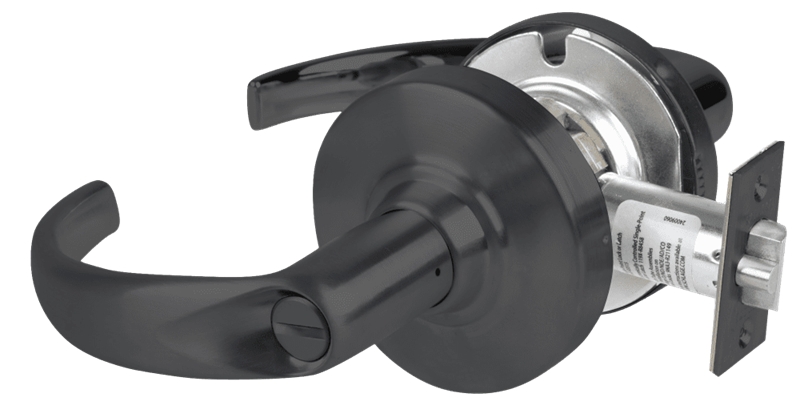

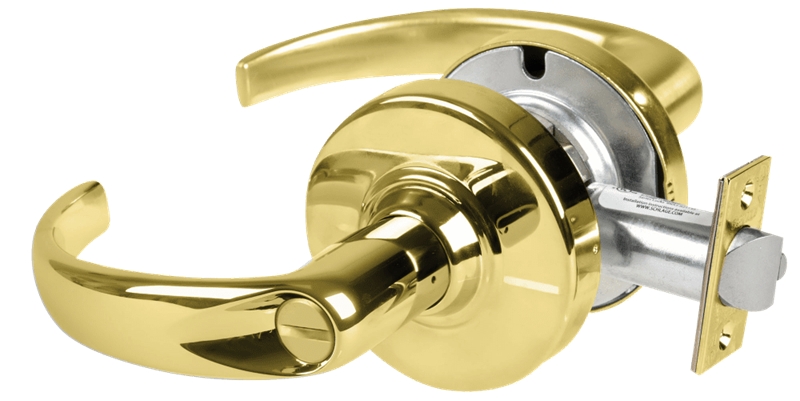

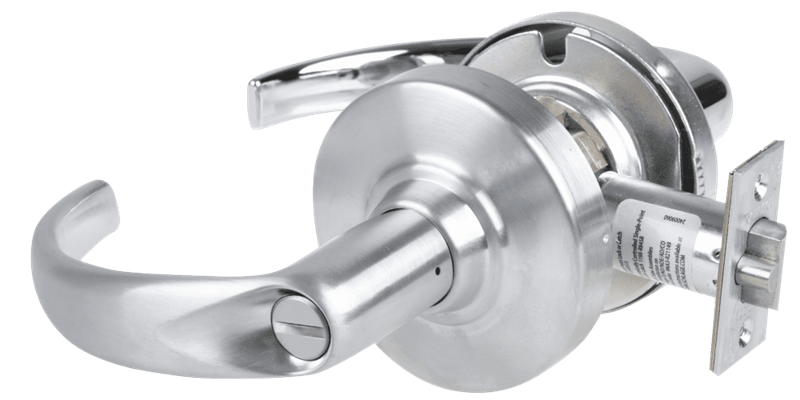

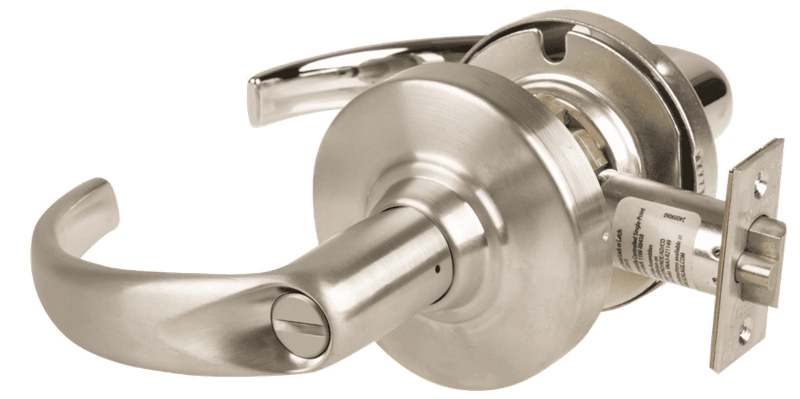

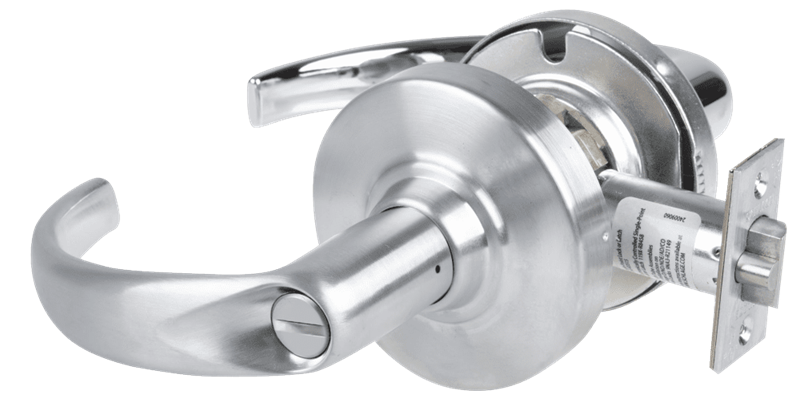

Schlage ND44S SPA - Grade 1 Hospital Privacy Lock, Sparta Lever, Non-Keyed

Schlage ND44S SPA - Heavy Duty Hospital Privacy Lever Set - Sparta Style

Hospital Privacy Lock

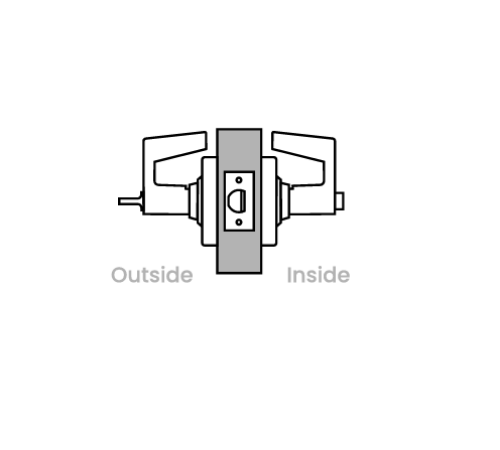

Push-button locking. Unlocked from outside by turning emergency turnbutton. Turn inside lever or close door to release button.

Lever Styles: Sparta (SPA)

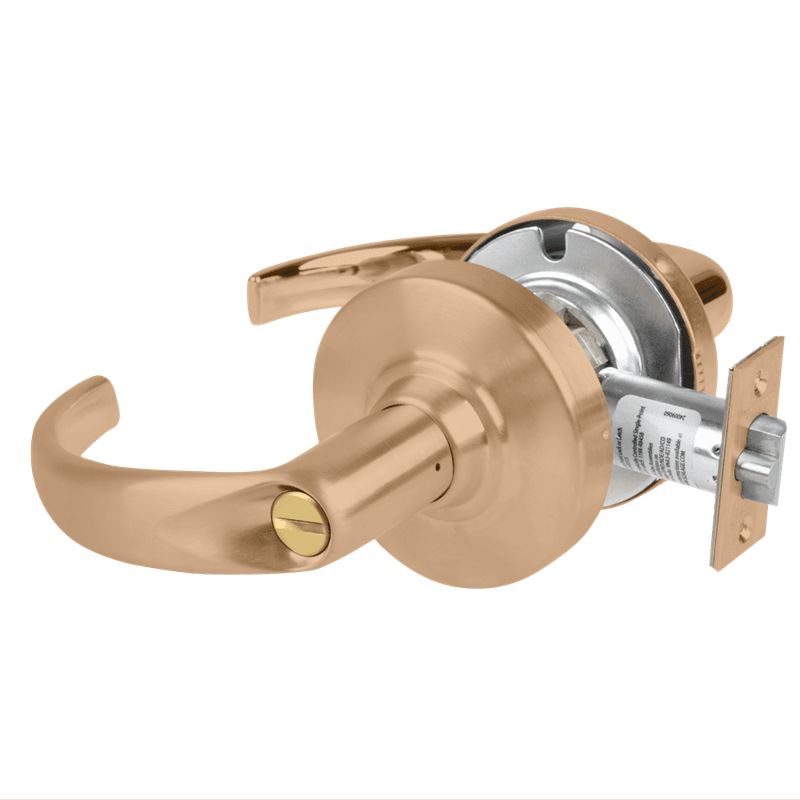

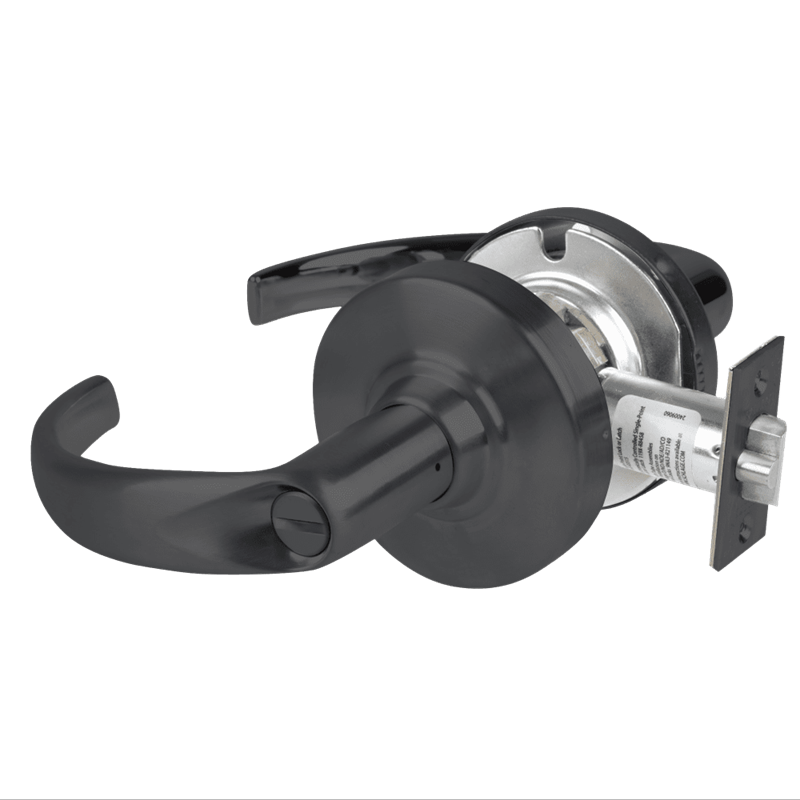

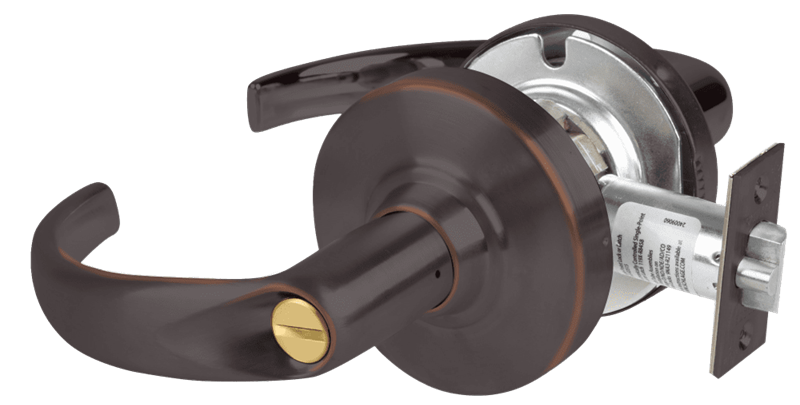

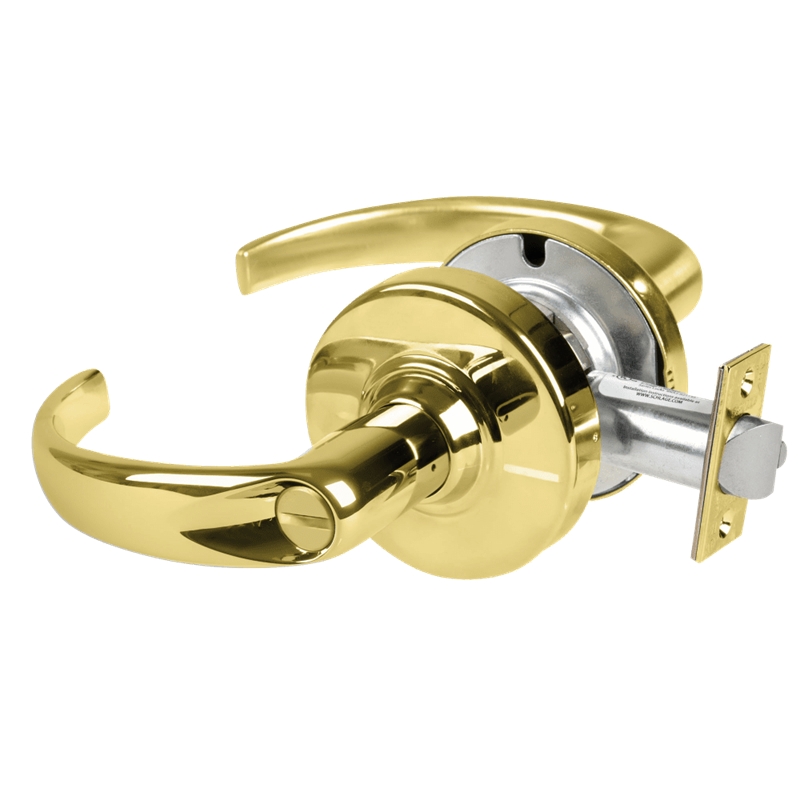

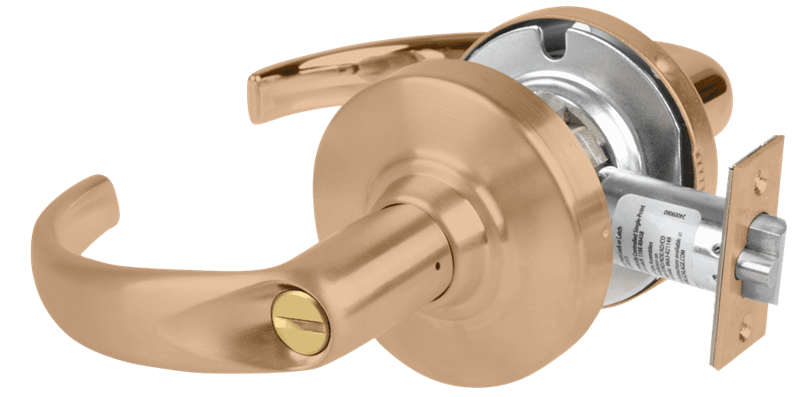

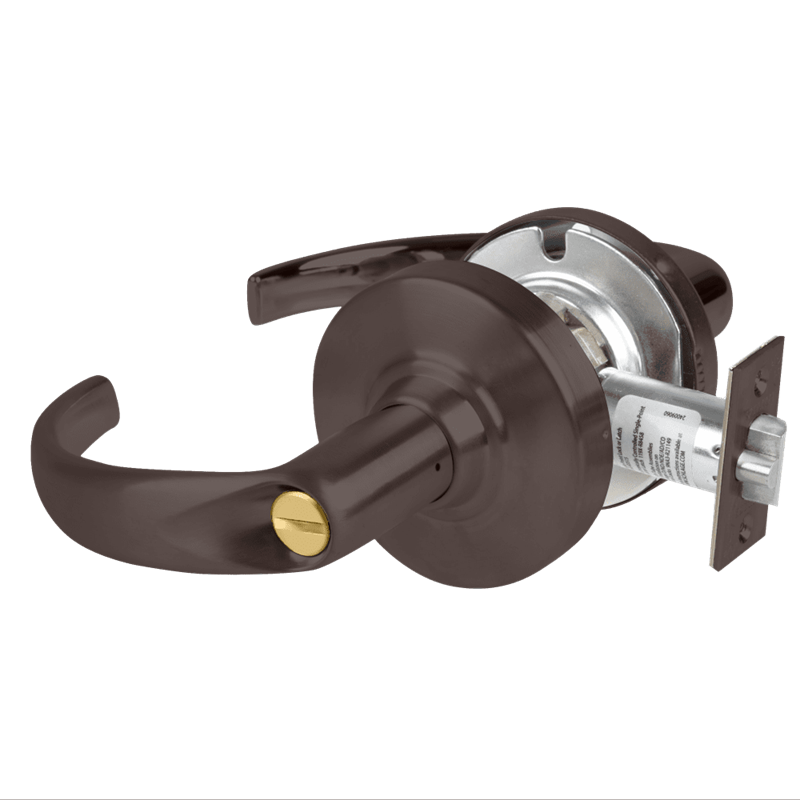

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 622 - Matte Black, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   The door range is 1 5/8"-2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model: Schlage, ND44S, ND44, ND44SSPA605,  ND44SSPA606,  ND44SSPA612,  ND44SSPA613,  ND44SSPA619, ND44SSPA622, ND44SSPA625,  ND44SSPA626, ND44SSPA626AM, ND44SSPA643E,  605, 606, 612, 613, 619, 622, 625, 626, 626AM.

Exposed Trim: Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Standard Features:

Cylindrical lock housing - Cold rolled steel, corrosion treated for normal atmospheric conditions

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)
