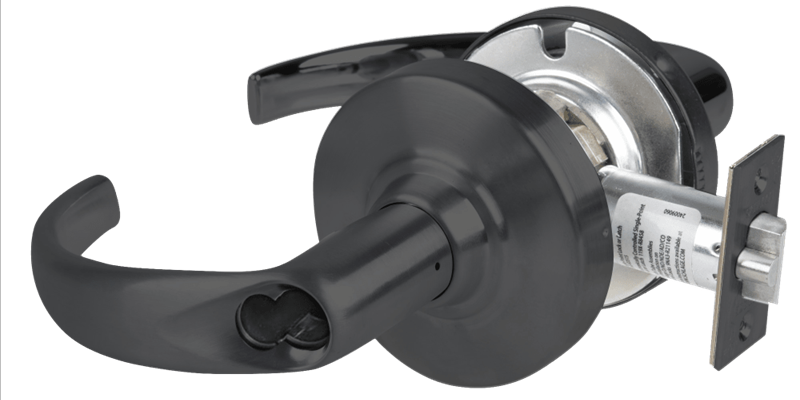

Schlage ND53BD SPA - Grade 1 Entrance Lock, Sparta Lever, SFIC Prep Less Core

Schlage ND53BD SPA- Heavy Duty Entrance Lever Lock - Small format IC core - less core, Sparta Style

(accepts "Best" Interchangable cores, core not included)

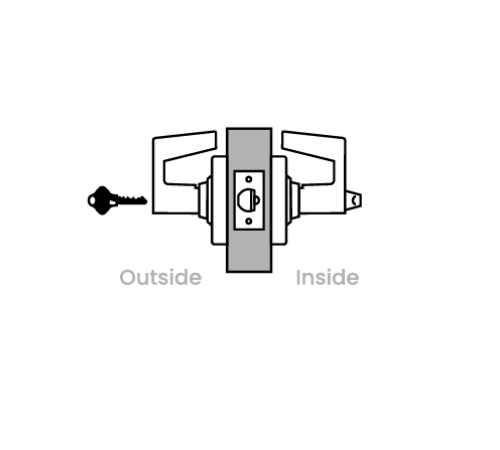

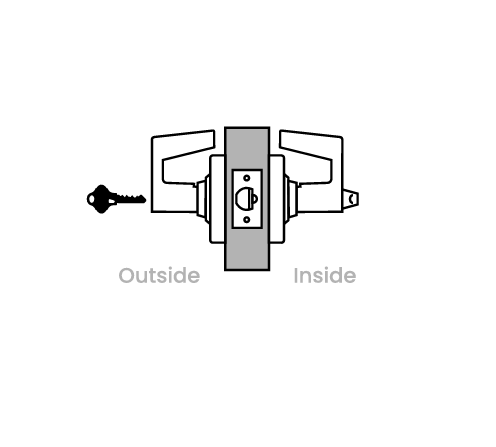

Entrance Lock -ANSI F109

Turn/push-button locking: Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked.

Push-button locking: Pushing button locks outside lever until unlocked by key or by turning the inside lever.

Lever Styles: Sparta (SPA)

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze, 622 - Matte Black, 626AM - Satin Chrome Antimicrobial

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.     The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model: Schlage, ND53BD, ND53, ND53BDSPA605,  ND53BDSPA606,  ND53BDSPA612,  ND53BDSPA613,  ND53BDSPA619, ND53BDSPA622, ND53BDSPA625,  ND53BDSPA626, ND53BDSPA626AM, ND53BDSPA643E  605, 606, 612, 613, 619, 625, 626, 626AM. 622, 643E.

**

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
