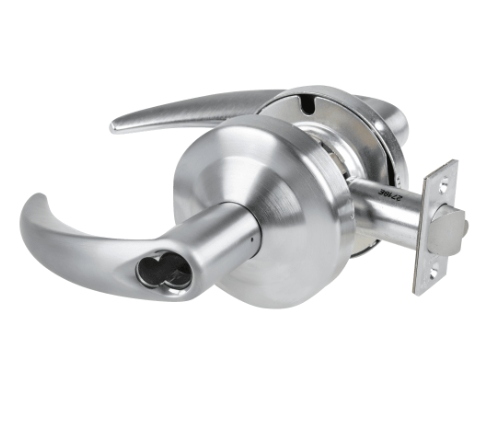

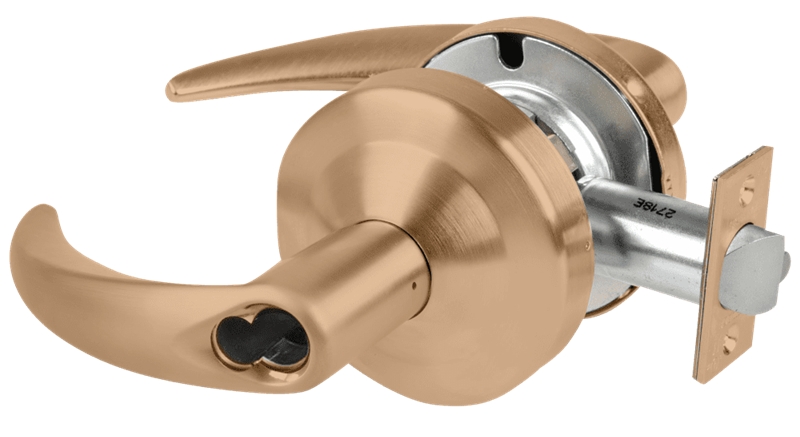

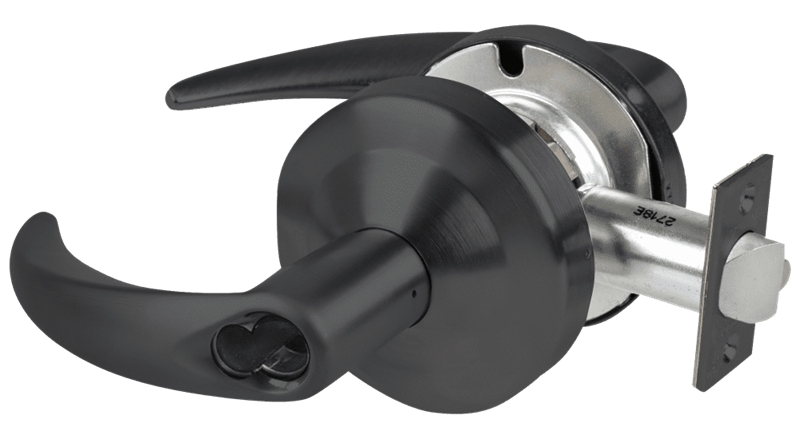

Schlage ND80BDEU OME Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24 VDC, Fail Secure, Omega Lever, SFIC Prep

Schlage ND80BDEU OME - Heavy Duty Storeroom Lever Lock - Accepts SFIC Core - Electrically Unlocked (Fail Secure) - Small format IC core - less core - Omega Style

(accepts "Best" Interchangable cores, core not included)

Outside lever continuously locked until unlocked by key or electric current  Auxiliary latch deadlocks latchbolt when door is closed Inside lever always free for immediate exit.

Lever Styles: Omega (OME)

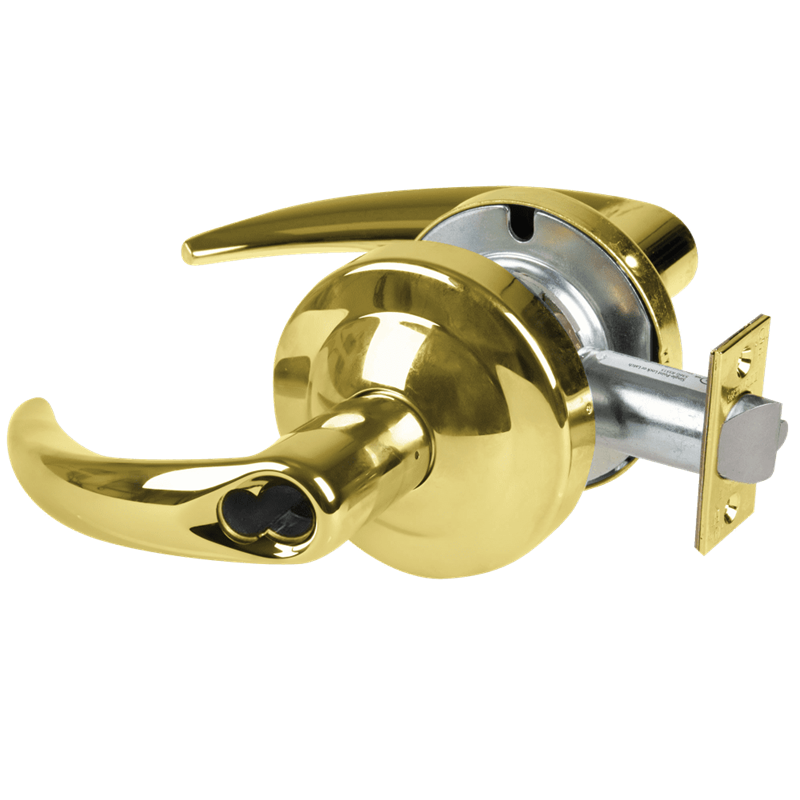

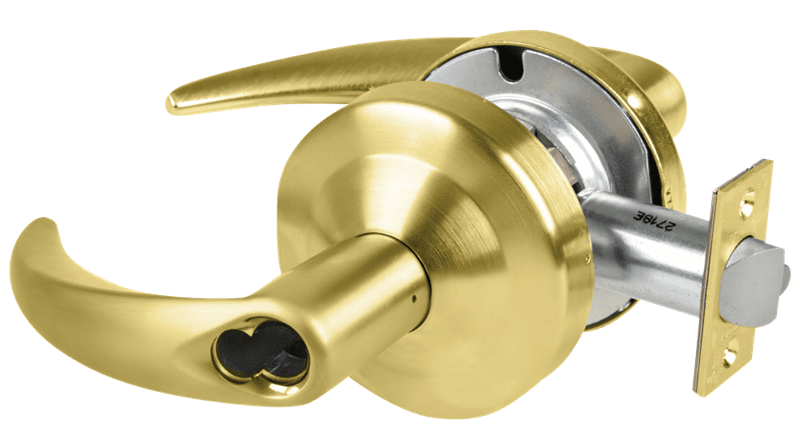

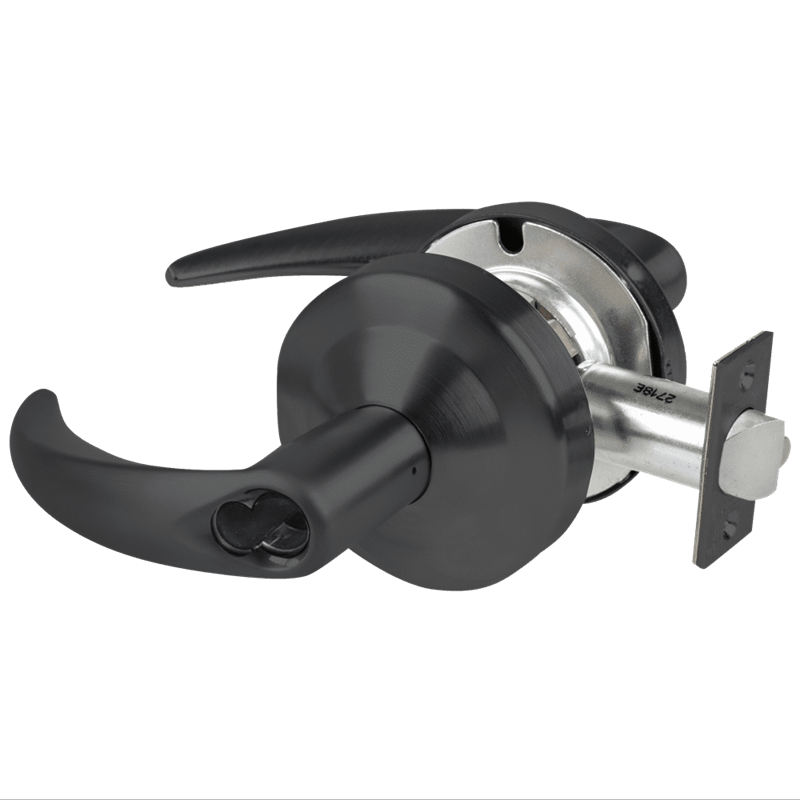

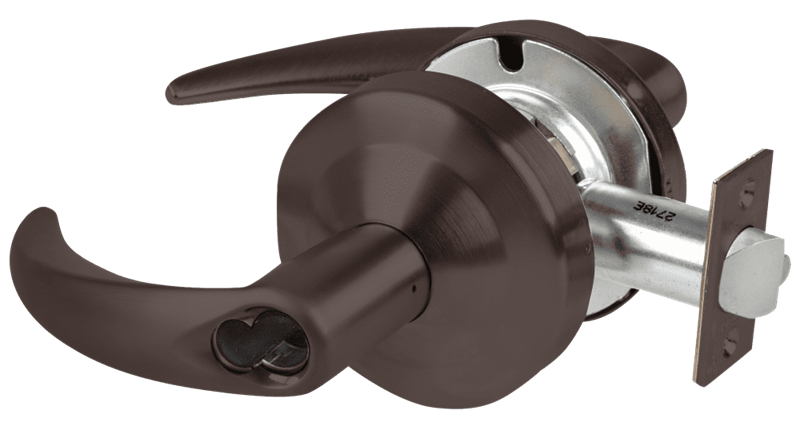

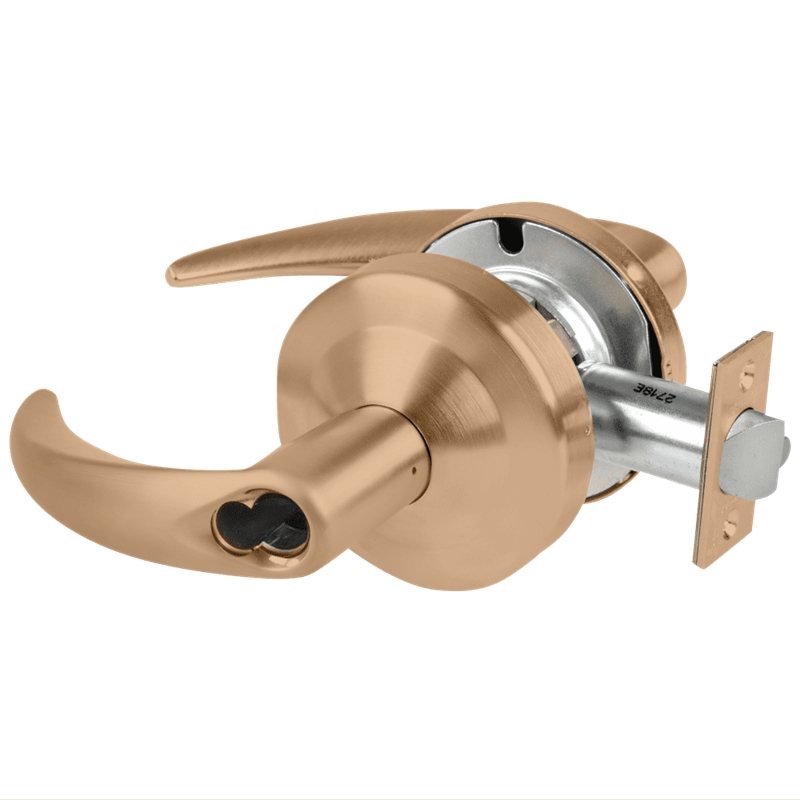

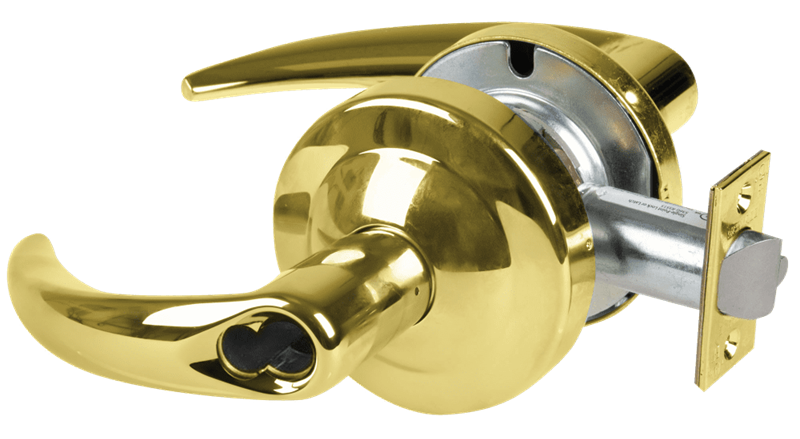

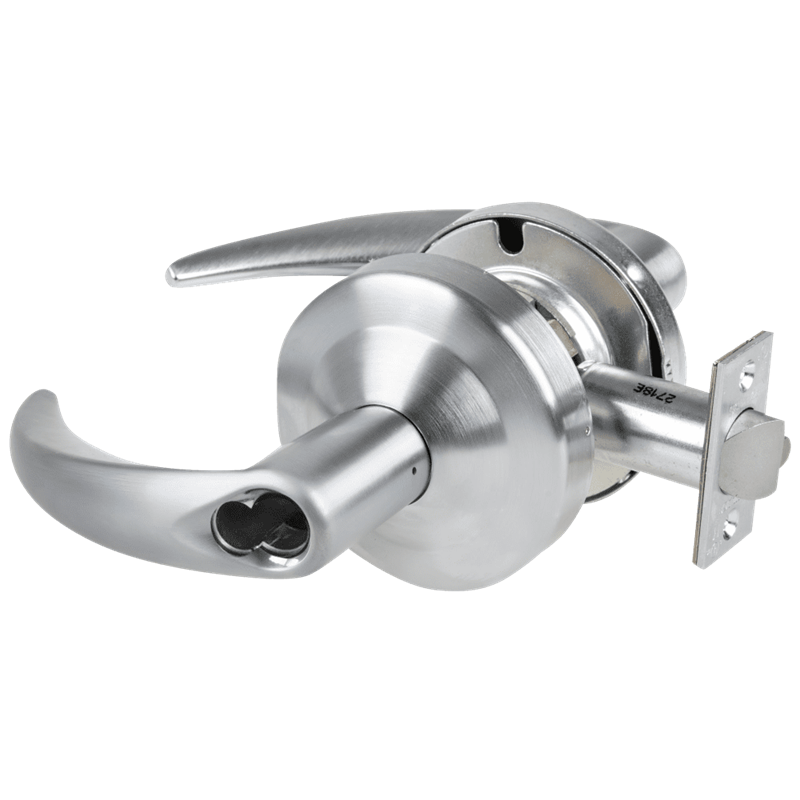

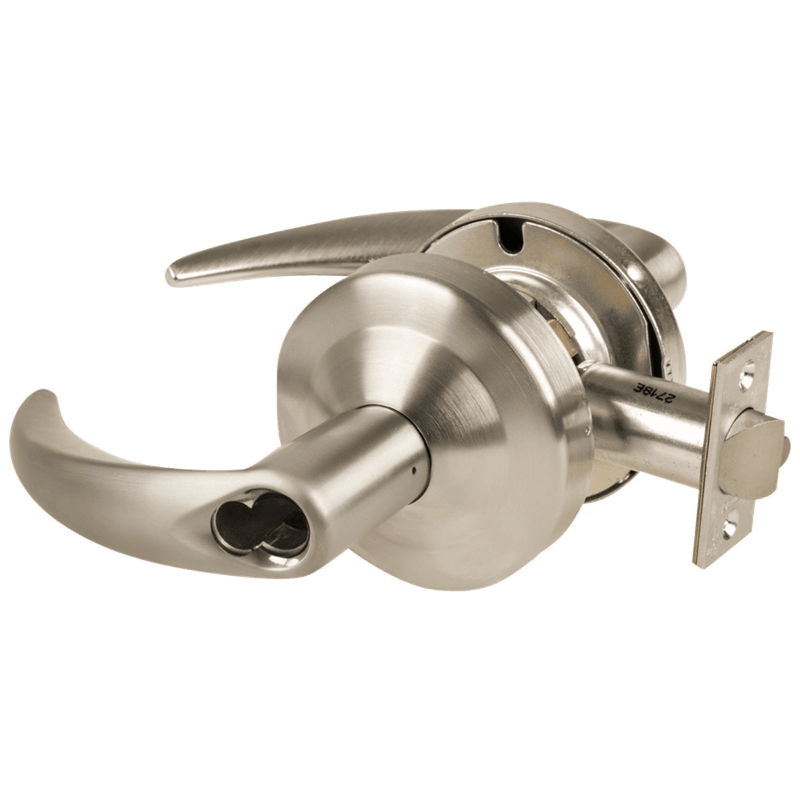

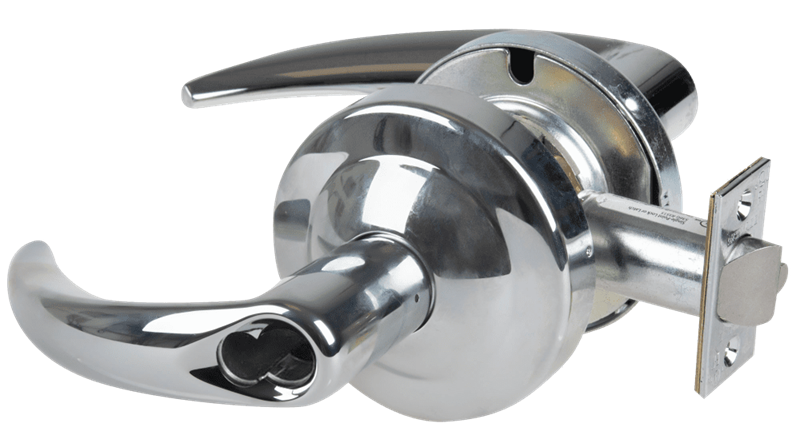

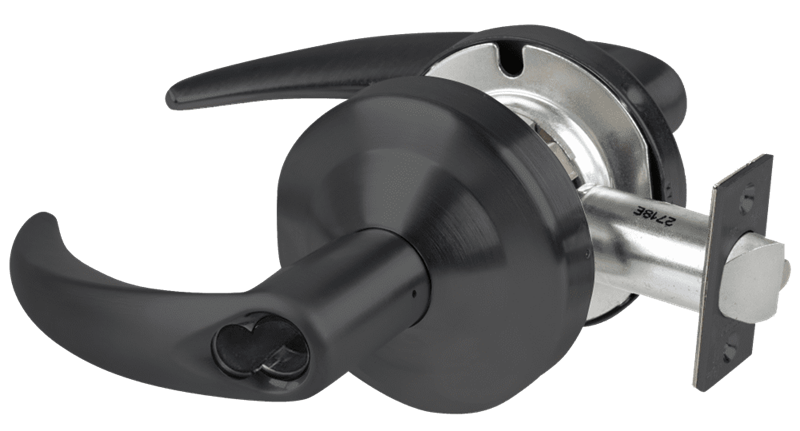

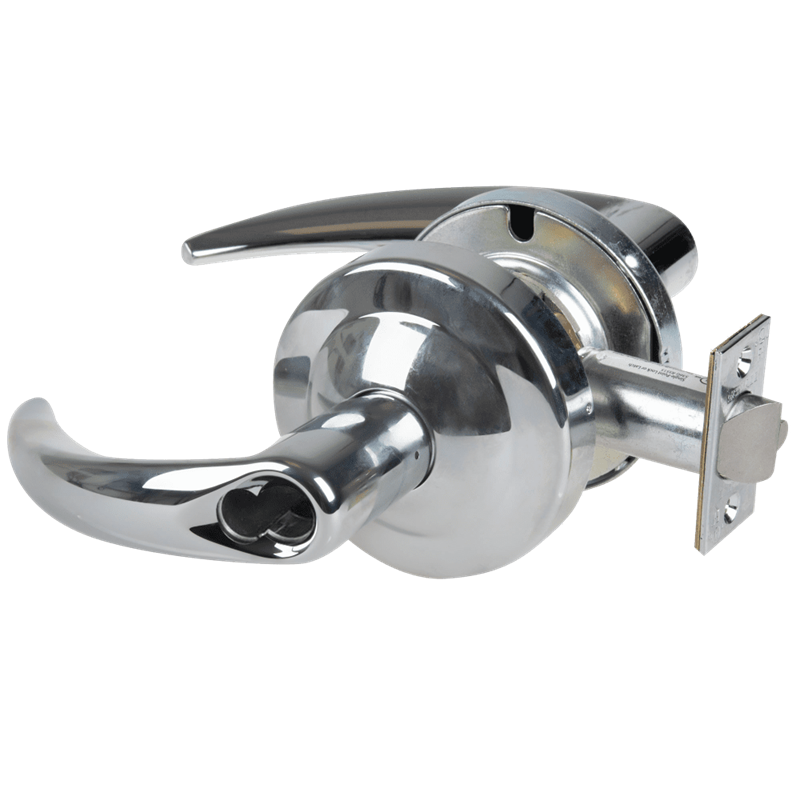

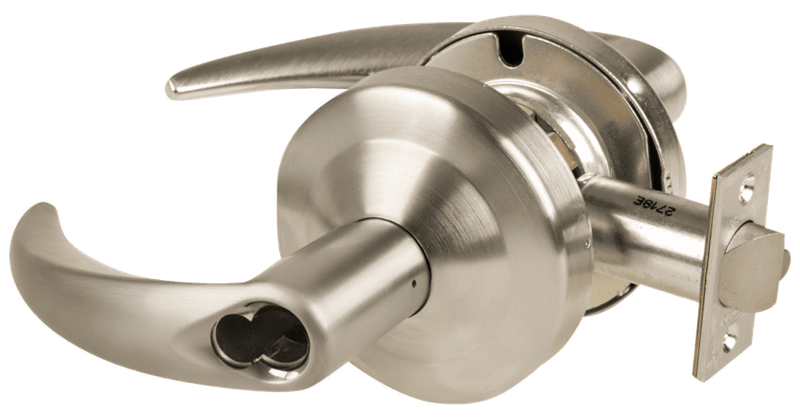

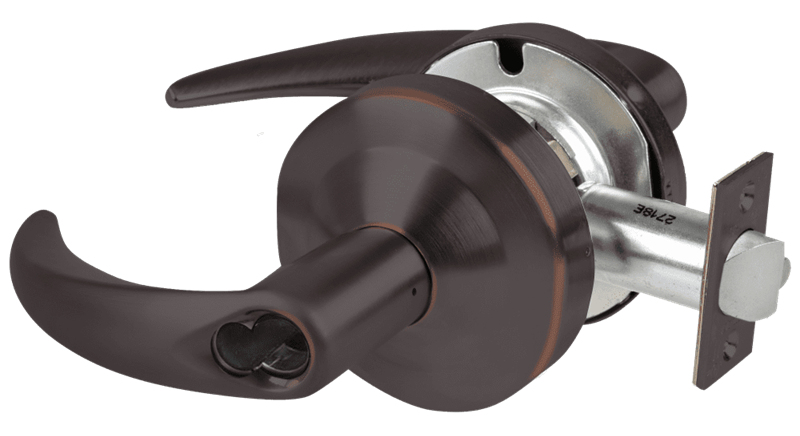

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately (please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Electrified Locks ND-Series locks are available for electrically locking and unlocking controls for high security and fire safety applications. They are UL Listed and rated for both fire and electrical single point locking on labeled doors.

Electrical Requirements: 24V AC, .35 amps or 24V DC, .15 amps.

Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

ND80PDEU- Electrically Unlocked (Fail Secure)     ND80PDEL - Electrically Locked (Fail Safe)

Model: Schlage, ND80BDEU, ND75, ND80BDEUOME605,  ND80BDEUOME606,  ND80BDEUOME612,  ND80BDEUOME613,  ND80BDEUOME619, ND80BDEUOME622,  ND80BDEUOME625,  ND80BDEUOME626, ND80BDEUOME626AM, ND80BDEUOME643E, 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643E.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions Key removable o utside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
