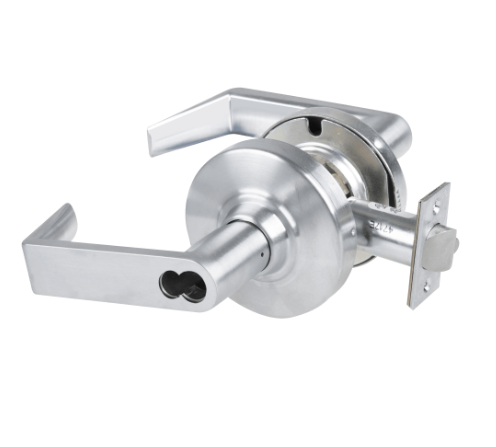

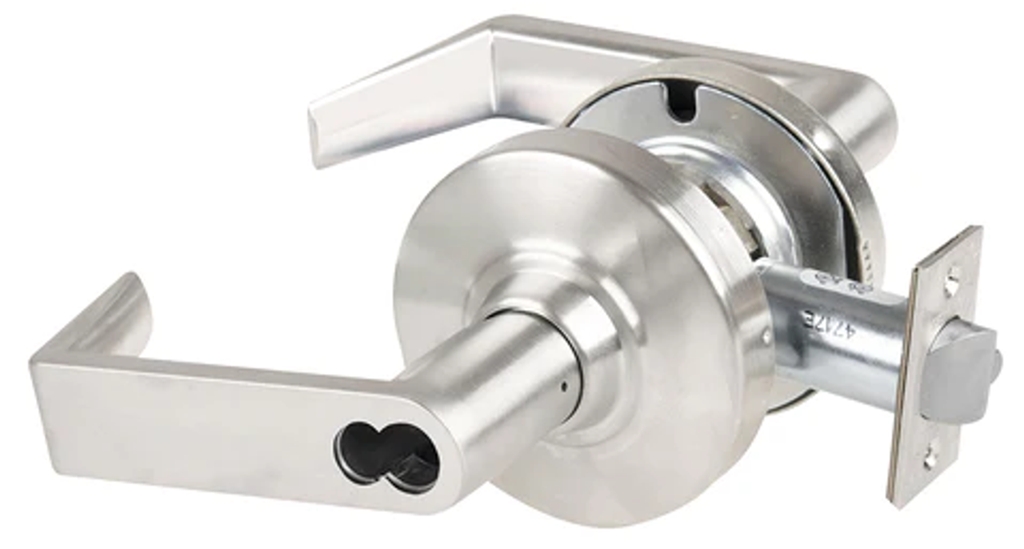

Schlage ND80BDEU RHO Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24 VDC, Fail Secure, Rhodes Lever, SFIC Prep

The Schlage ND Series is the institutional standard for Grade 1 cylindrical locks in North America, and the ND80BDEU is its electrified storeroom configuration. Outside lever is continuously locked. Entry by key or access control signal only. Inside lever is always free for immediate egress. When power is removed or fails, the outside lever stays locked: that's the fail secure behavior that makes this lock the correct specification for server rooms, pharmaceutical storage, secure offices, data centers, and any restricted-access door where the default state must always be locked regardless of electrical condition.

The BDEU designation confirms the SFIC prep. This lock body accepts BEST, Arrow, and Falcon Small Format Interchangeable Core without any modification. The core is not included. For compatible SFIC cores and cylinder options, browse our cylinders, cores, and keys catalog. For the complete electrified ND Series lineup, view Schlage ND Series Grade 1.

How the ND80BDEU Fail Secure Function Works

EU in the model number stands for Electrically Unlocked, which is the fail secure configuration. The outside lever is continuously locked in the mechanical default state. When the access control panel sends a signal and current is applied, the outside lever unlocks and retracts the latch. When the signal is removed or power fails, the outside lever locks again immediately. No manual reset, no intervention required. The door defaults to locked any time electrical supply is interrupted.

Inside lever operation is always free regardless of electrical state. Egress is never restricted by the electric function. This satisfies fire code egress requirements on fail secure electrified doors: staff and occupants can always exit, but entry from outside requires either a key or an active access control signal.

An optional Request-to-Exit (RX) switch is available on this lock. The RX option adds internal monitoring of inside lever rotation, providing a signal to the access control panel when the inside lever is operated, which can shunt alarm systems or release door holders connected to the same circuit.

Schlage ND80BDEU RHO Technical Specifications

Series: Schlage ND, Extra Heavy Duty. Function: Storeroom, Electrically Unlocked (Fail Secure). SFIC prep: accepts BEST, Arrow, Falcon Small Format Interchangeable Core. Core not included. Lever: Rhodes (RHO). Grade: ANSI A156.2, 1996, Series 4000, Grade 1. UL Listed: yes, fire and electrical single point locking on labeled doors. Voltage: 24V AC, 0.35 amps; or 24V DC, 0.15 amps (12-24V DC compatible). Operating temperature: minimum -31.5°F, maximum +151.5°F. Door thickness: standard 1-5/8" to 2-1/8"; 1-3/8" requires two spacers (order separately). Backset: standard 2-3/4"; optional 2-3/8", 3-3/4", 5" (call for availability). Latch bolt: steel, 1/2" throw; 3/4" anti-friction latch available for pairs of fire doors. Strike: ANSI curved lip 1-1/4" x 4-7/8", 1-3/16" to center; optional strikes and lip lengths available. RX option: Request-to-Exit switch available. Auxiliary latch deadlocks latchbolt when door is closed, preventing shimming. Finish: 626 Satin Chrome standard; 9 additional finishes available.

SFIC Prep and Interchangeable Core Advantage

The SFIC prep (B designation in ND80BDEU) is why this lock is specified on large institutional projects running BEST, Arrow, or Falcon master key systems. Interchangeable cores allow quick core change with a control key, without removing the lock from the door or calling a locksmith. Construction cores can be installed at rough-in, swapped out for permanent cores at move-in, and re-cored on rekeying cycles without disturbing the door hardware. For facilities managers running hundreds of doors on a single IC master key program, that operational efficiency is the primary specification argument over a standard cylinder lock.

ND80BDEU vs. ND80PDEU: The Cylinder Prep Difference

The ND80PDEU is the same electrified fail secure storeroom function with a standard conventional cylinder prep. The ND80BDEU (this product) has the SFIC prep accepting BEST, Arrow, and Falcon interchangeable cores instead. If your facility runs a conventional Schlage or other keyway master key system without IC, the ND80PDEU is the correct specification. If your facility runs a BEST, Arrow, or Falcon SFIC program, the ND80BDEU is the correct choice. For access control components compatible with this electrified lock, browse our electronic hardware catalog.
