Schlage ND80JD 8SP Grade 1 Storeroom Lock, Sparta Lever, FSIC Prep Less Core

Schlage ND80JD 8SP - Heavy Duty Storeroom Lever Lock - Large Format IC Core -  With Tactile Warning Sparta Style Lever- Milled

Storeroom Lock -ANSI-F86

*Only available on outside lever, unless otherwise specified

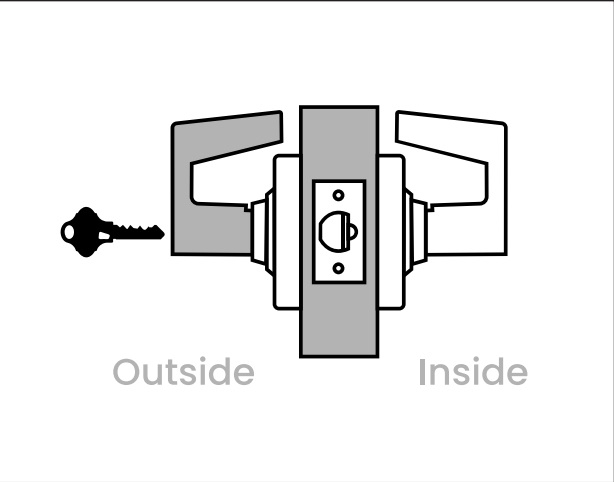

Outside lever is fixed. Entrance by key only. Inside lever always unlocked.

(accepts Schlage Interchangable cores, core not included)

Lever Styles: Sparta (8SP)

Finishes: 626 - Satin Chrome

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately (please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND80PD - 6-Pin conventional (standard)

ND80LD - Conventional - Less Cylinder

ND80BD - Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND80JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
