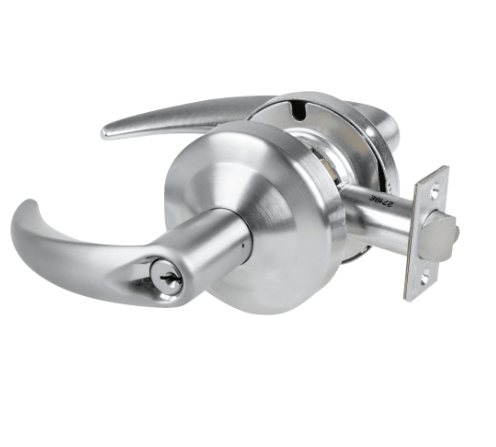

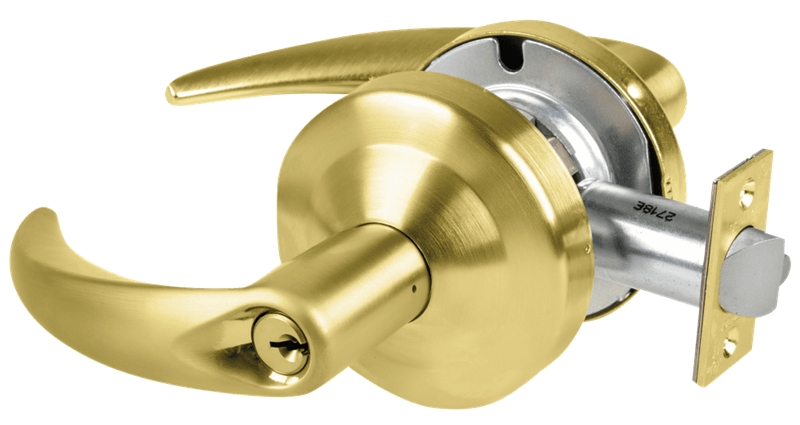

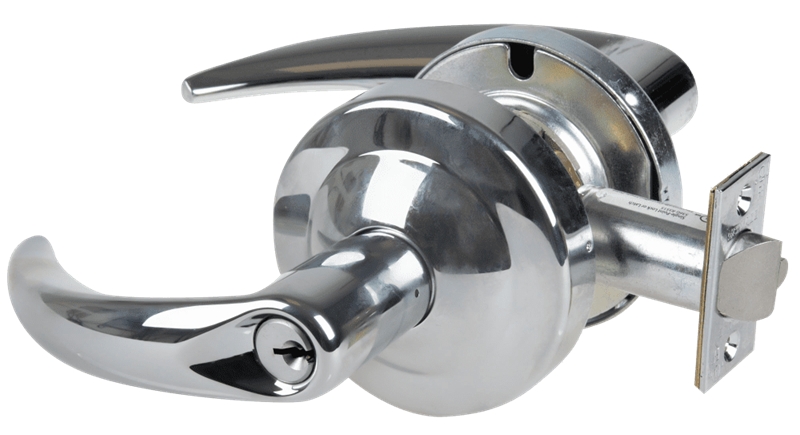

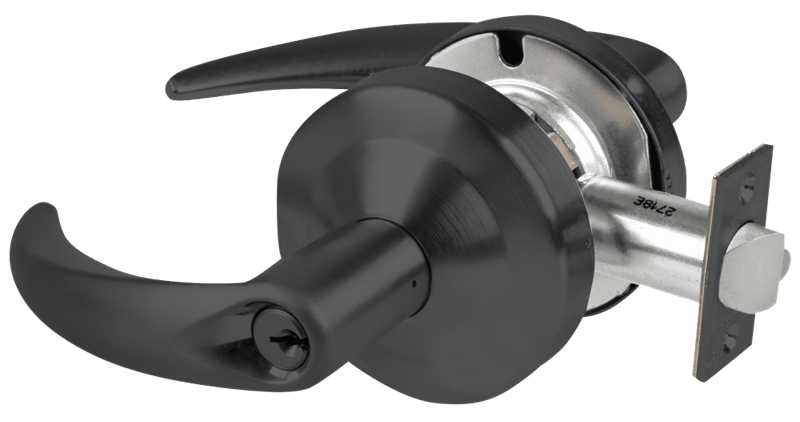

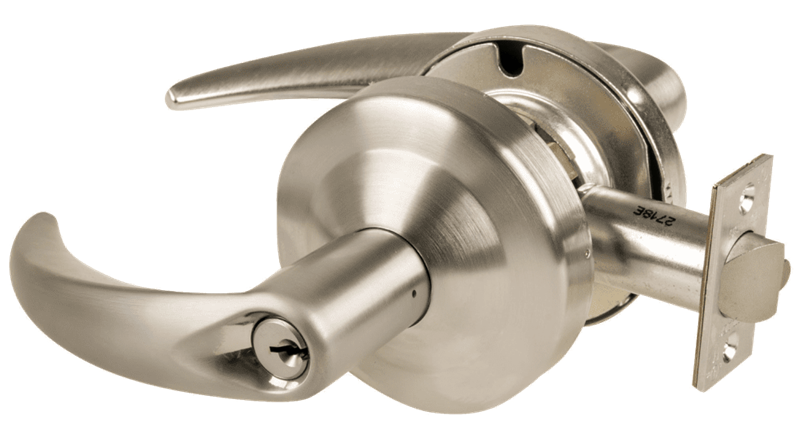

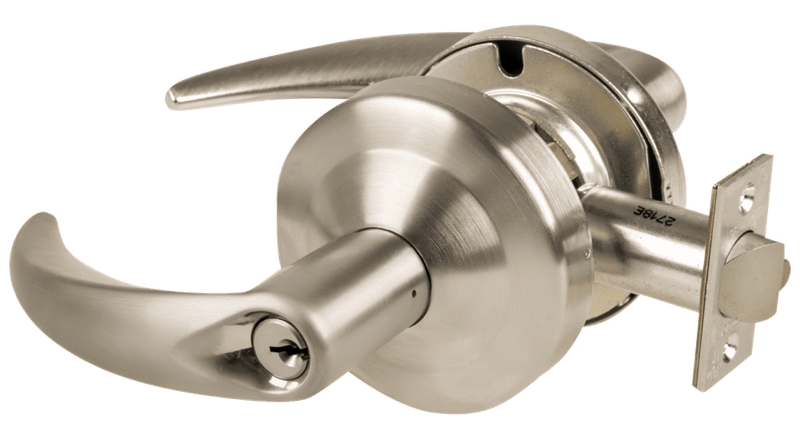

Schlage ND85PD OME - Grade 1 Faculty Restroom Lock, Omega Lever, Standard Cylinder

Schlage ND85PD OME - Heavy Duty Faculty Restroom Lever Lock with 6-Pin Conventional Cylinder - Omega Style

Faculty Restroom Lock

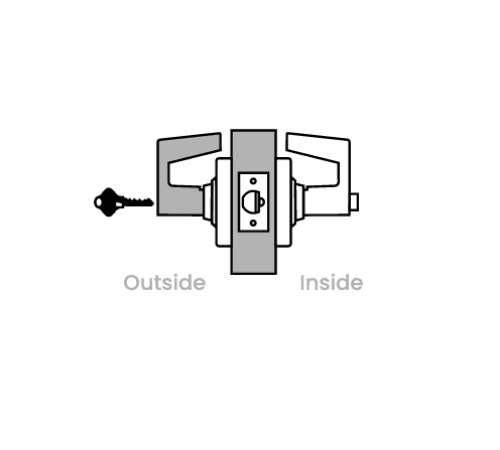

Outside lever is fixed. Entrance by key only. Push-button in inside lever activates visual occupancy indicator, allowing only emergency master key to operate. Turn inside lever or close door to release visual occupancy indicator. Rotation of inside spinner-button provides  lock-out feature by keeping indicator thrown.

Lever Styles: Omega (OME)

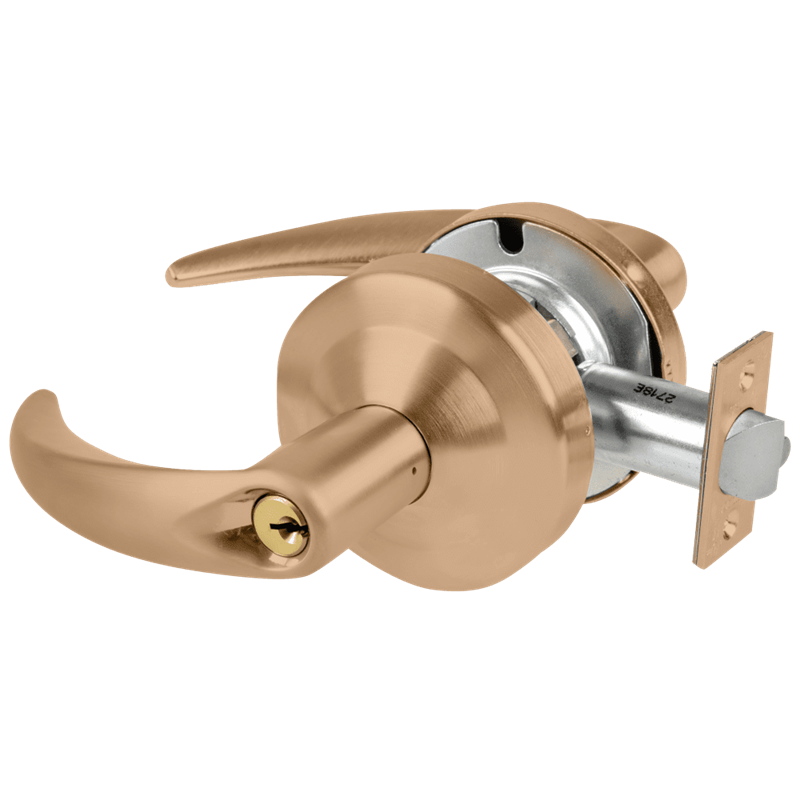

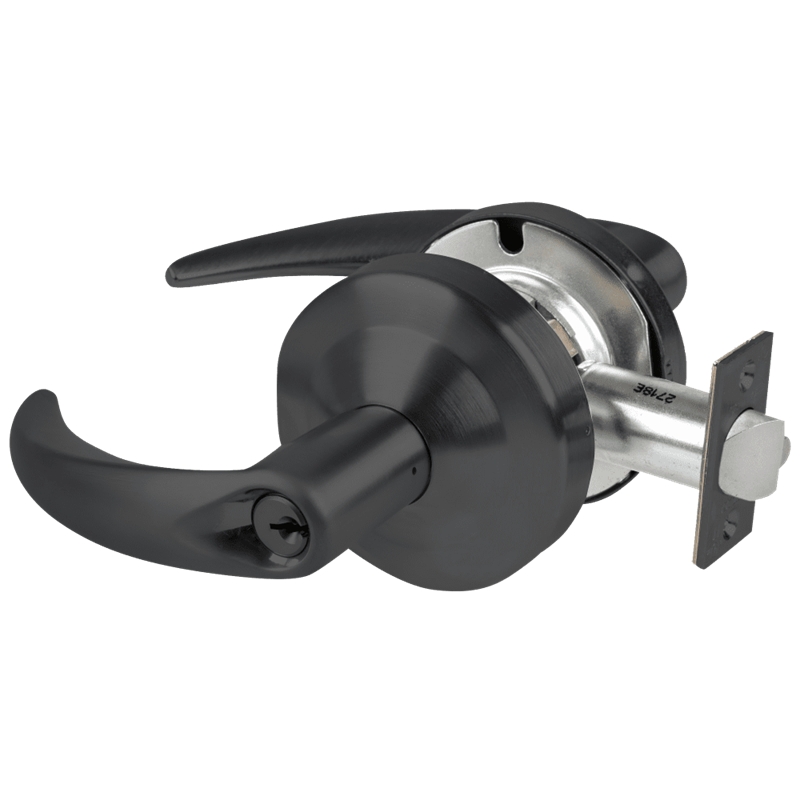

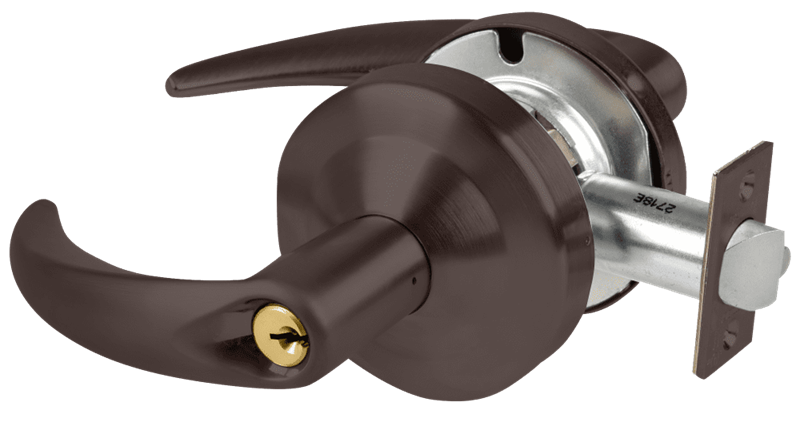

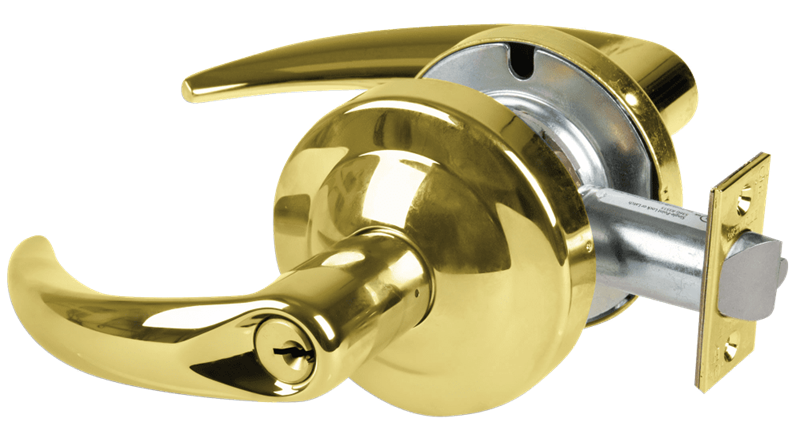

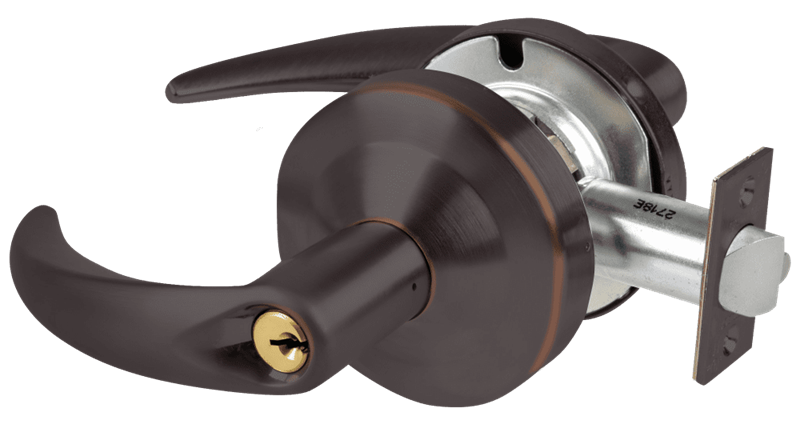

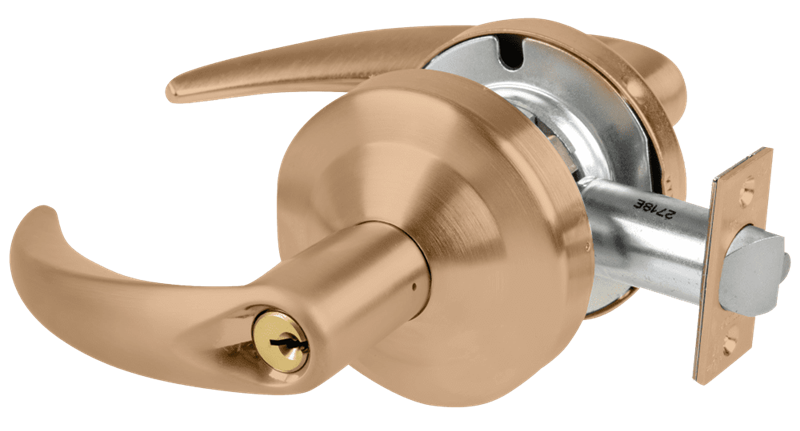

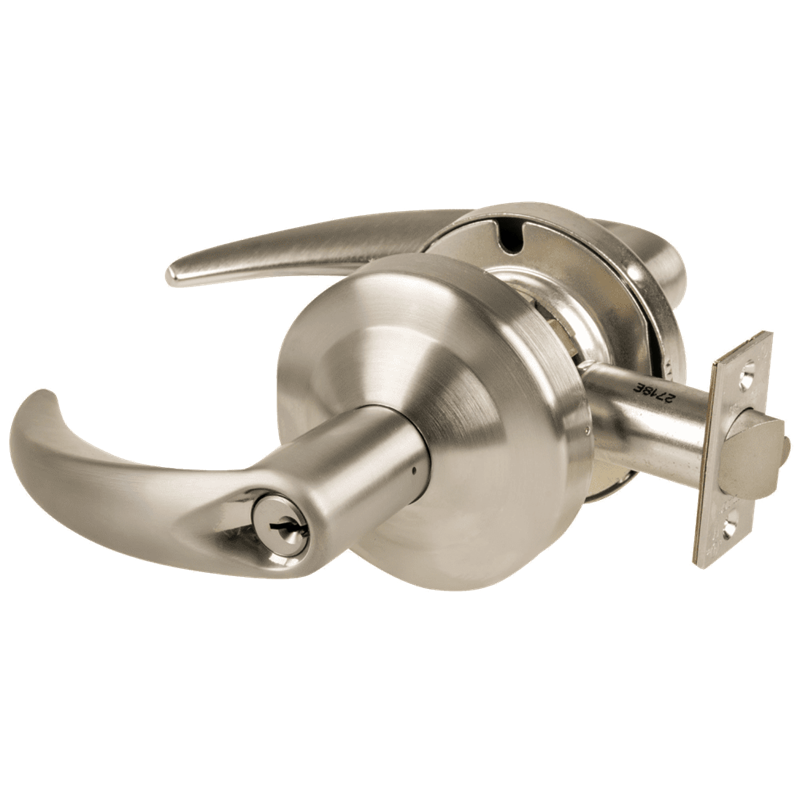

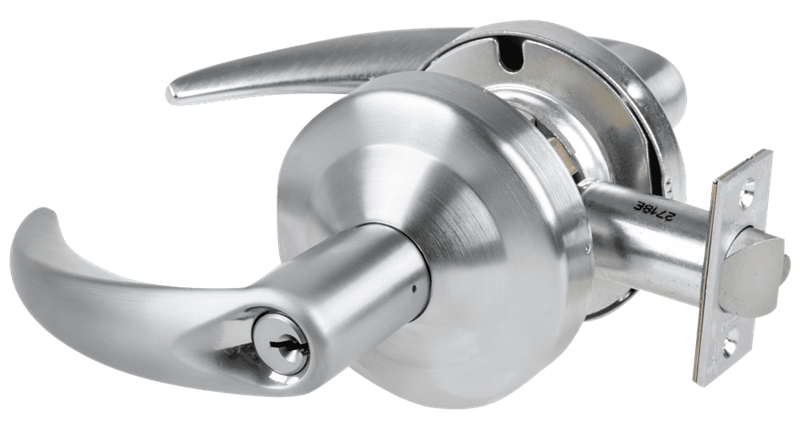

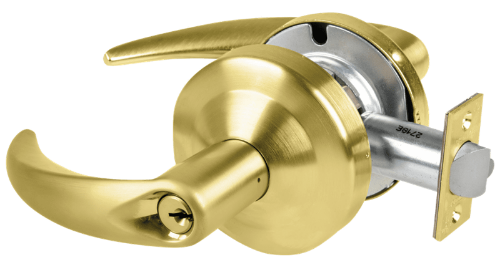

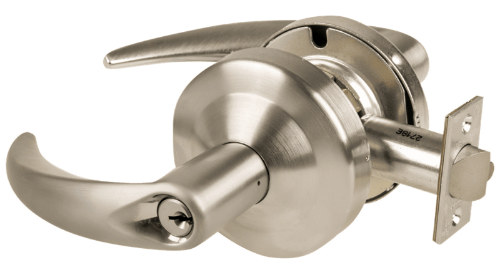

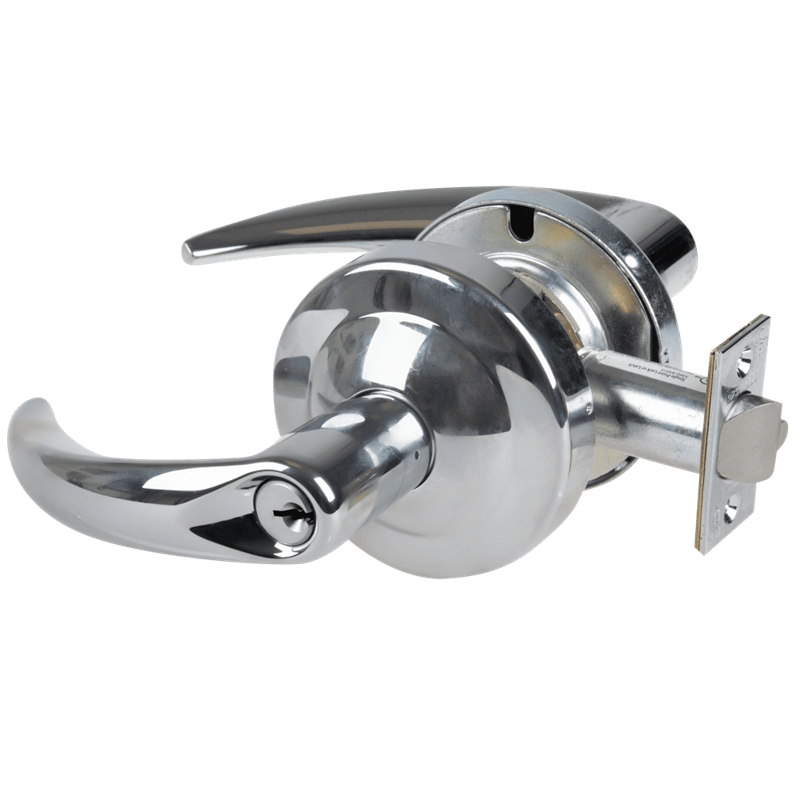

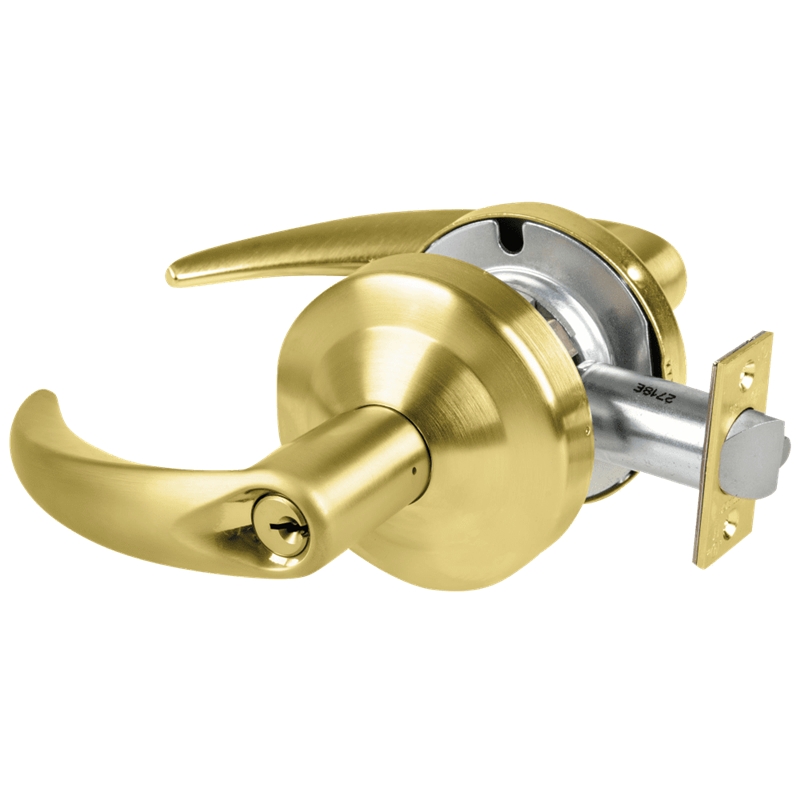

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

The door range for the ND85 is 1 3/4"-2".

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model: Schlage, ND85PD, ND75, ND85PDOME605,  ND85PDOME606,  ND85PDOME612,  ND85PDOME613,  ND85PDOME619, ND85PDOME622,  ND85PDOME625,  ND85PDOME626, ND85PDOME626AM, ND85PDOME643E, 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643E.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
