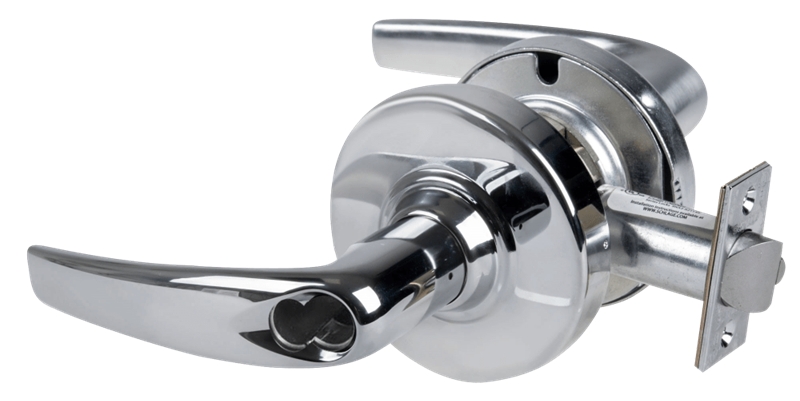

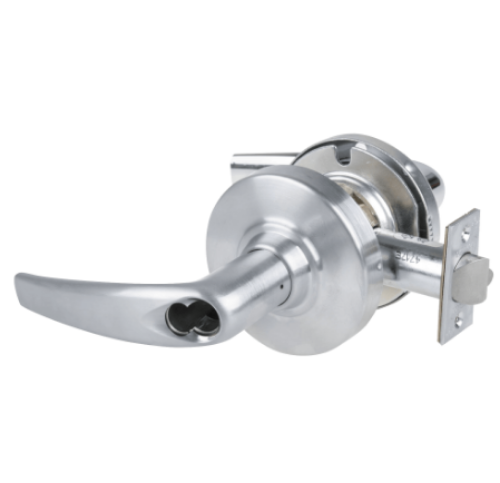

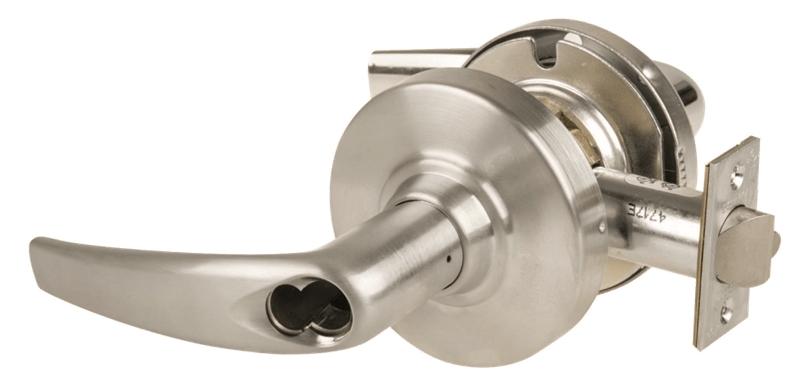

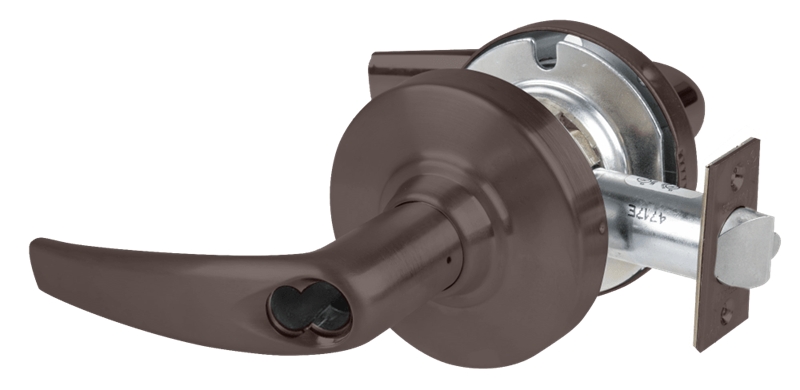

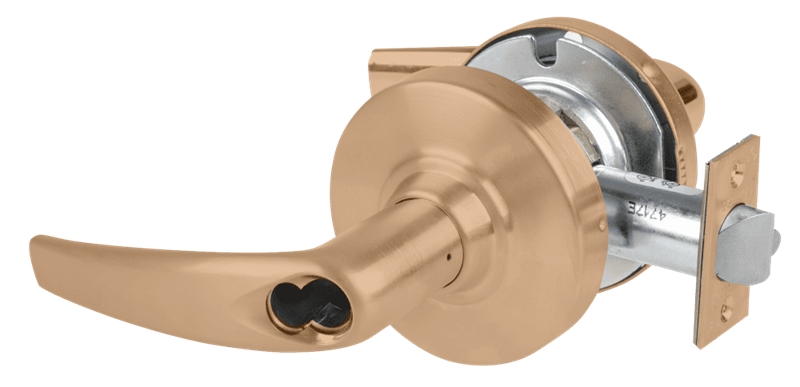

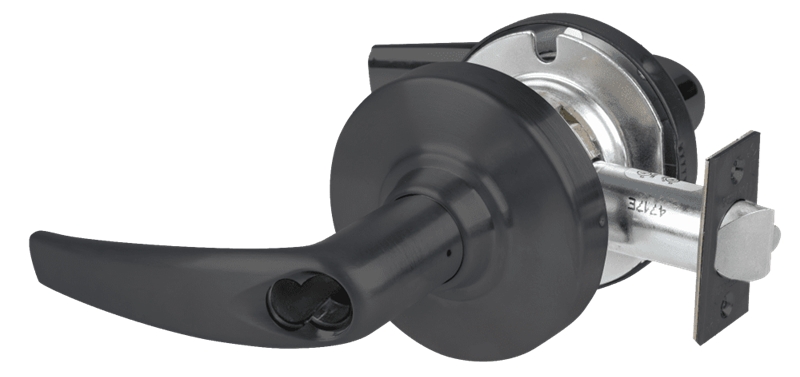

Schlage ND94BD ATH Grade 1 Classroom Lock, Athens Lever, SFIC Prep Less Core

Schlage ND94BD ATH - Vandlgard Classroom Lever Lock - Small format IC core - less core - Athens Style

(accepts "Best" Interchangable cores, core not included)

Classroom Lock - Vandlgard -ANSI-F84

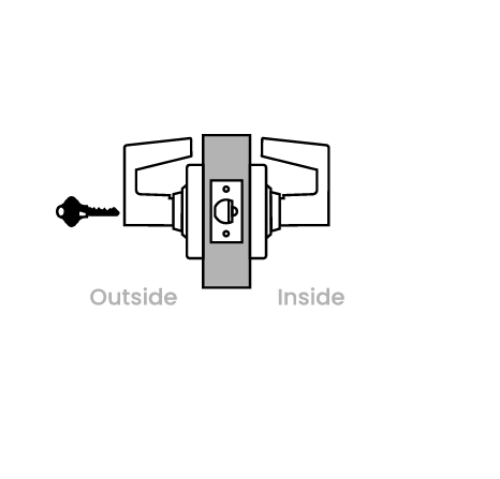

Outside lever locked and unlocked by key Inside lever always unlocked

Vandlgardis designed to disengage outside spindle from latch when locked.

Lever Styles:Athens (ATH)

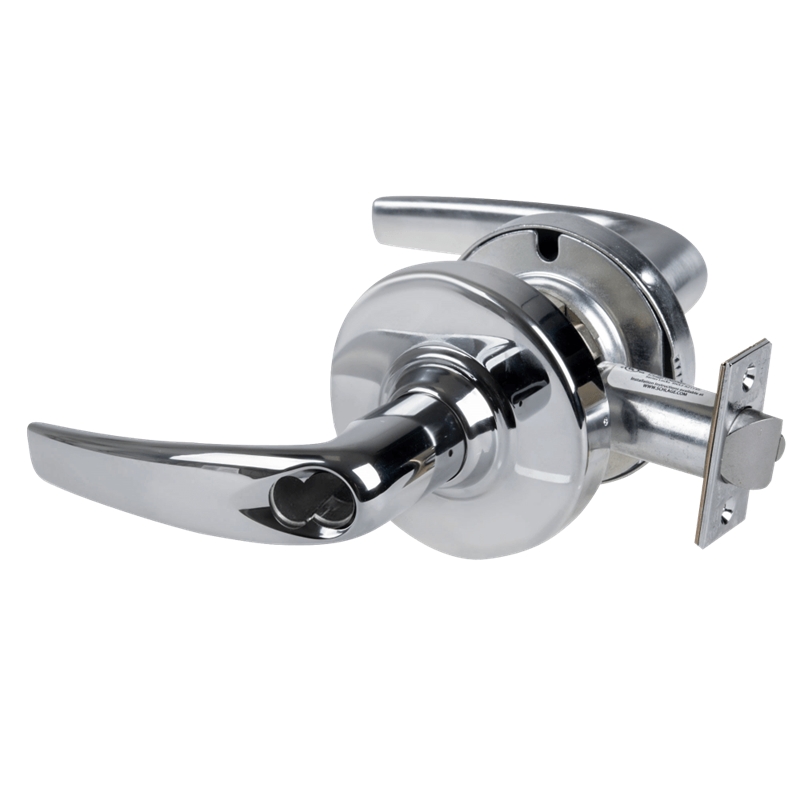

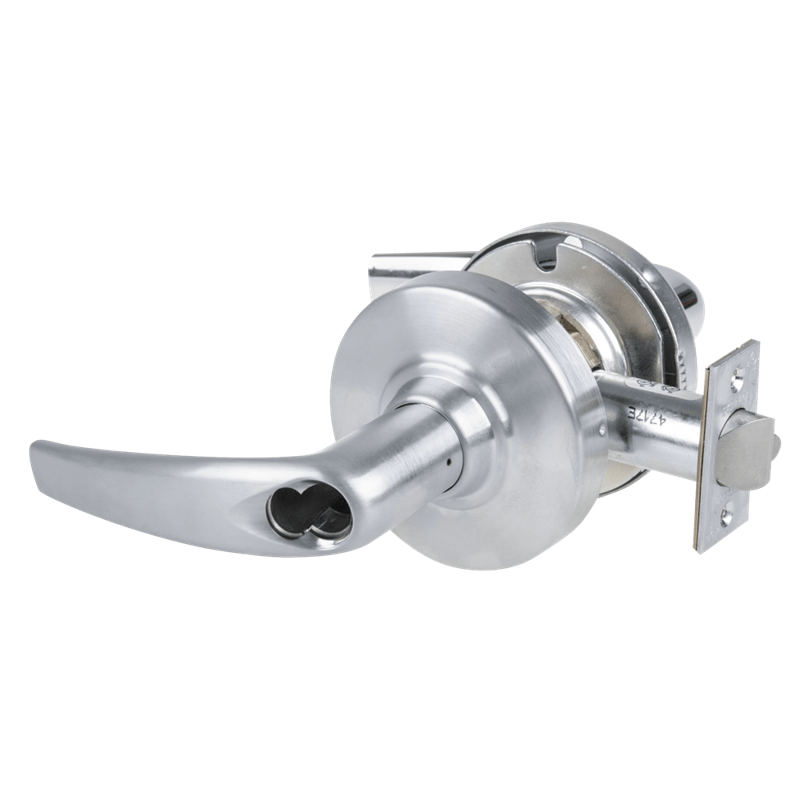

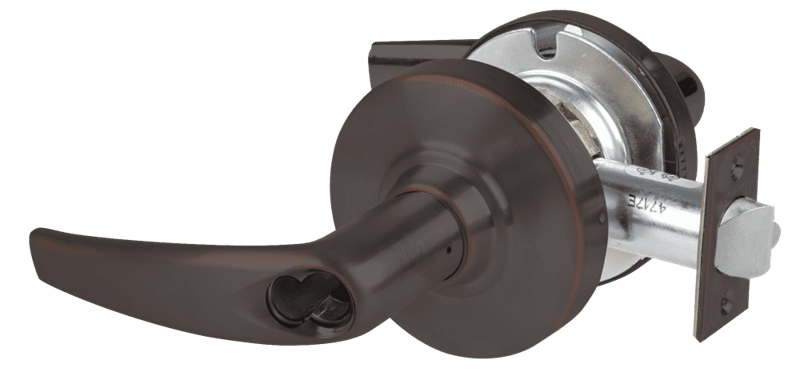

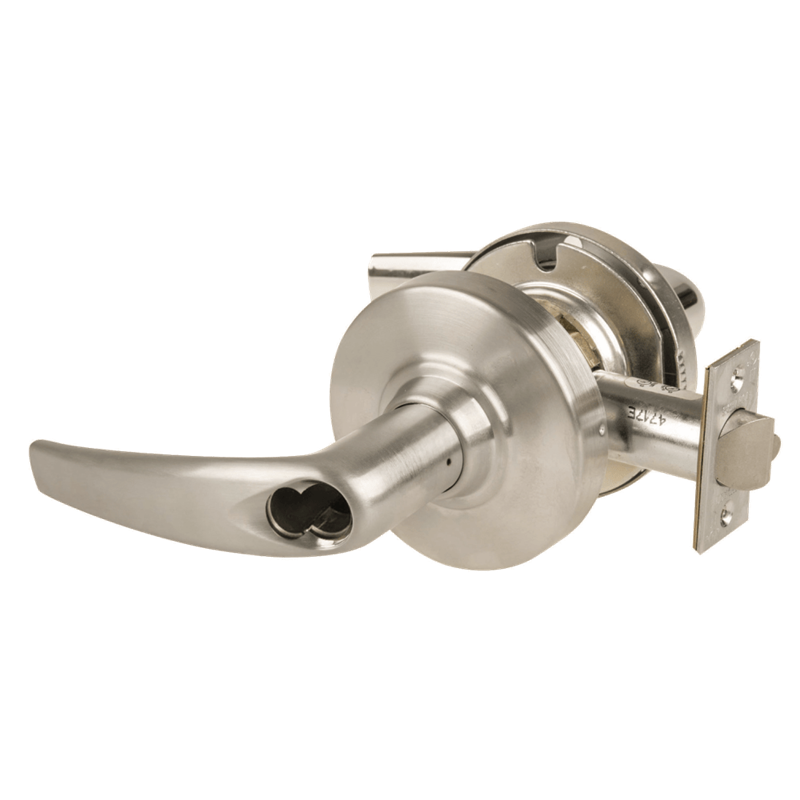

Finishes:605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset:2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt:Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).   Strikes:ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike

ND94PD - 6-Pin conventional (standard)

ND94LD - Conventional - Less Cylinder

ND94BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND94JD - Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Model:Schlage, ND94BD, ND94, ND94BDATH605,  ND94BDATH606,  ND94BDATH612,  ND94BDATH613,  ND94BDATH619,  ND94BDATH625,  ND94BDATH626, 605, 606, 612, 613, 619, 625, 626.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
