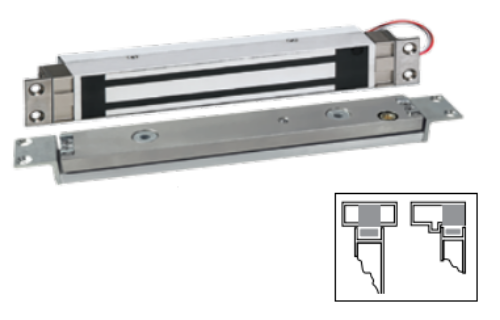

SDC 1565ITC Concealed High Shear Electromagnetic Lock W/ Mounting armature kit - for 1¾" to 2" frames - 2700 LBS

SDC 1565ITC Concealed High Shear Electromagnetic Lock W/ Mounting armature kit - for 1¾" to 2" frames - 2700 LBS

ITC: Standard mounting armature kit for aluminum and hollow metal doors with ⅞" to 1⅛" deep top channels, wood doors and factory prepared hollow metal flush edge doors

FEATURES:

Integrated electronics, 1⅝" depth for 1¾" to 2" frames

2700 LBS HOLDING FORCE

Automatic Voltage Sensing Input - 650/350mA @ 12/24VDC

Lock Body Dimensions: 10-7/16"L x 1-1/2"W x 1-5/8"D

Armature Assembly Dimensions: 8"L x 1-1/2"W x 7/8"D

ANSI/BHMA Grade 1 Conpliant

BHMA Certified Holding Force

UL, CSFM, MEA Listed

DOOR STATIC AND ALIGNMENT SENSOR:The door static sensor ensures that the door is at rest and aligned, before the magnet is permitted to energize, eliminating potential for lock misalignment.

LATERAL ALIGNMENT ADJUSTMENT:Lateral adjustment of shear tabs to compensate for warped or misaligned doors, permitting accurate locking.

VERTICAL ALIGNMENT ADJUSTMENT:Vertical adjustment of the armature compensates for wide door gaps.

“FLOATING" ASSEMBLY:A unique “floating" action makes for easier armature lift when the magnet is energized and provides the ability to overcome wide door gaps.

HOLDING FORCE:2700lbs. of holding force without current inrush or high operating temperature normally associated with shear locks.

Alloy shear tabs are used on both the lock and the armature to ensure continued high holding force. There is no profiling of the soft armature steel that  ay be prone to wear and reduced holding force.

Advanced electronic circuitry that incorporates door static, positioning and timed relock sensor and automatic voltage sensing for 12/24VDC input.

 Noise dampeners greatly reduce the noise associated with locking and unlocking of other shear locks on the market.
