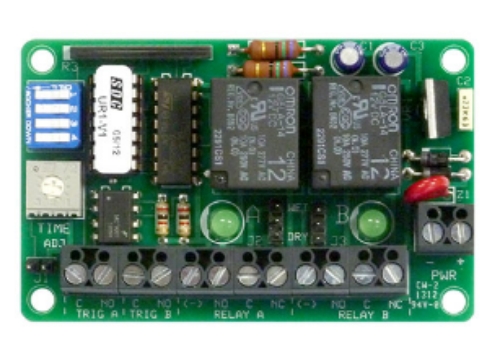

SDC UR-1 Universal Field Programmable Application Module

SDC UR-1 Universal Field Programmable Application Module, 12/24VDC Voltage Input; 2-N.O. trigger inputs; 2-SPDT 10A outputs

• Use the Same Controller for Multiple Applications

• Microprocessor Based System Logic Reduces Need for Communicating Door and Lock Contacts and Standalone Relays

• Centralized Wiring for Locks, Access Controls, Monitoring Contacts and Peripheral Equipment Provide Easy Troubleshooting and Enable Uniformity for Multiple Installation Applications

• Multiple Selectable Relay & System Logic Modes:

1. Conventional Relays

2. 2 Time Delay Relays, adj. 1-60 sec

3. 1 Time Delay Relays x Anti-Tailgate input

4. 2 Independent Latching Relays (1 N.O. trigger per relay (pulse on, pulse off)

5. Tandem Latching Relays 2-SPDT (DPDT) output (Input (A) latch ON, Input (B) latch OFF)

6. 1 Time Delay Relay, 1 Latching Relay

7. 1 Time Delay Relay, 1 Control Relay

8. 2 Door Airlock/Cleanroom System

9. Communicating Bathroom System: Shared by 2 hospital or Dorm rooms. Exiting unlocks both doors, ensuring access for both rooms

10. Manual Door Sequencer : For 1 or 2 single or double door openings with high inrush locks or exit devices (not to exceed Power Supply Rating up to 7A)

11. Automatic Door Sequencer: For 1 single or 1 double door opening with locks or exit devices

• Relay Modes: Selectable Contact Configuration Permit Installer Configuration per Application Requirements:

1. SPDT outputs jumper selectable Wet and/or Dry

2. Selectable Independent or Tandem (Simultaneous, DPDT) Activation

3. Each Tandem SPDT output may be Wet and/or Dry

Specifications:

Input Voltage: Automatic Voltage Sensing 12VDC @ 120mA, 24VDC @ 175mA

Inputs: Two Form “A" SPST, N.O. Inputs: a) Two (2) N.O. Dry Inputs for Individual Relay b) Tandem: Either N.O. Dry Input Triggers Both Relays

Outputs:

• 2 Form “C" SPDT Outputs (N.C. Failsafe, N.O. Failsecure)

• 10 Amps (resistive), 7 Amp (inductive) @ 30VDC

• Wet (voltage) and/or Dry Output

• Wet Output Voltage is Same as Module Input Voltage

• Two (2) LED Relay Active Indicators

Dimensions: 3.2" W x 2" L x 1" H
