Trimco 3815LX3815L Automatic Flushbolt (Wood Doors) - Pair

About this item

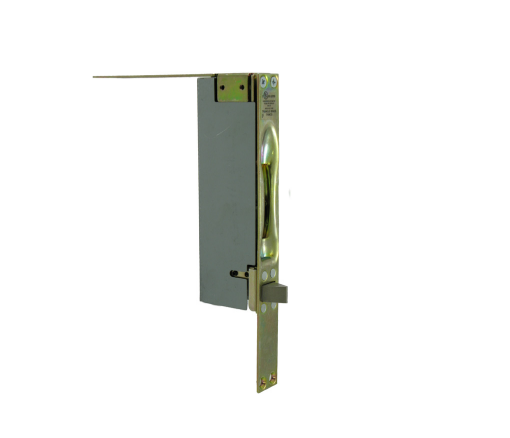

The Trimco 3815LX3815L is a UL-listed pair of automatic flush bolts engineered specifically for wood doors, from Trimco's patented 3800 Series flush bolt platform. Sold as a pair, this configuration provides a top-mounted and bottom-mounted automatic flush bolt for the inactive leaf of a paired wood door opening. BHMA 4.4 Type 25 certified. UL listed for 1-1/2 hour fire door applications. Patents No. 5,076,620 and 5,004,277. American Locksets is an authorized Trimco dealer stocking the 3815LX3815L with same-day shipping and free shipping on orders over $300.

Also referenced as: Trimco 3815L flush bolt, Trimco 3815 automatic flush bolt, trimco flush bolts wood doors.

Trimco 3815L Automatic Flush Bolt: How the 3800 Series Patented Design Works

An automatic flush bolt secures the inactive leaf of a paired door without any manual operation from the user. When the inactive leaf closes, the flush bolt engages the top and bottom floor or header strikes automatically. No handle, no thumb turn, no manual bolt operation required from inside the opening. The door closes and latches itself into position.

The Trimco 3815L achieves this through a patented mechanism that contains one third fewer parts than competing automatic flush bolt designs. With fewer moving parts and key structural components constructed of stainless steel, the 3815L delivers a statistically more reliable product across its service life. Fewer parts means fewer potential failure points. Stainless steel construction on the critical components means corrosion resistance and wear resistance in high-cycle institutional environments.

The result is a flush bolt that Trimco describes as extremely quiet and ultra-efficient, requiring very low closing force to fully engage and secure the door. This matters in high-traffic paired-door openings in schools, hospitals, office buildings, and government facilities where the inactive leaf needs to reliably latch every time the door cycles, with minimal noise and minimal operating force.

The 3815L suffix specifically identifies the wood door version. Flush bolts for wood doors use a different mounting and engagement geometry from metal door flush bolts. The 3810 is the metal door automatic flush bolt. The 3815L is the wood door version. These are not interchangeable between door types.

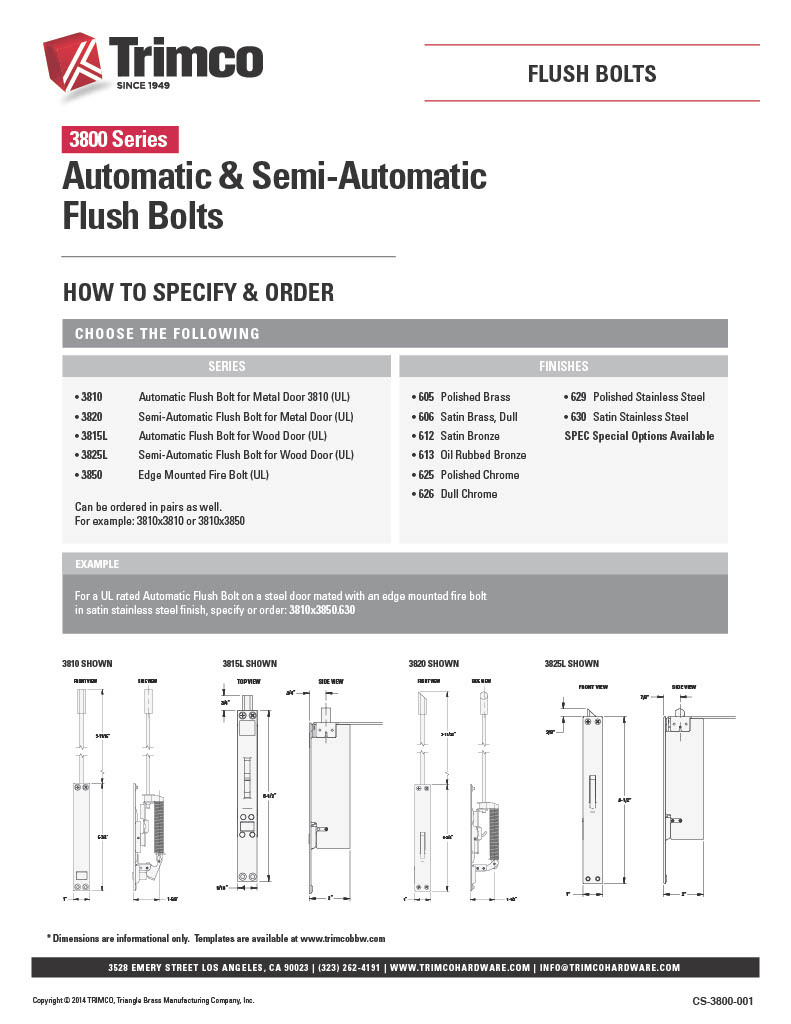

Trimco 3815LX3815L Pair Specifications

• SKU: 3815LX3815L 626

• Configuration: Pair. One top flush bolt (3815L) and one bottom flush bolt (3815L) for the inactive leaf of a wood door pair

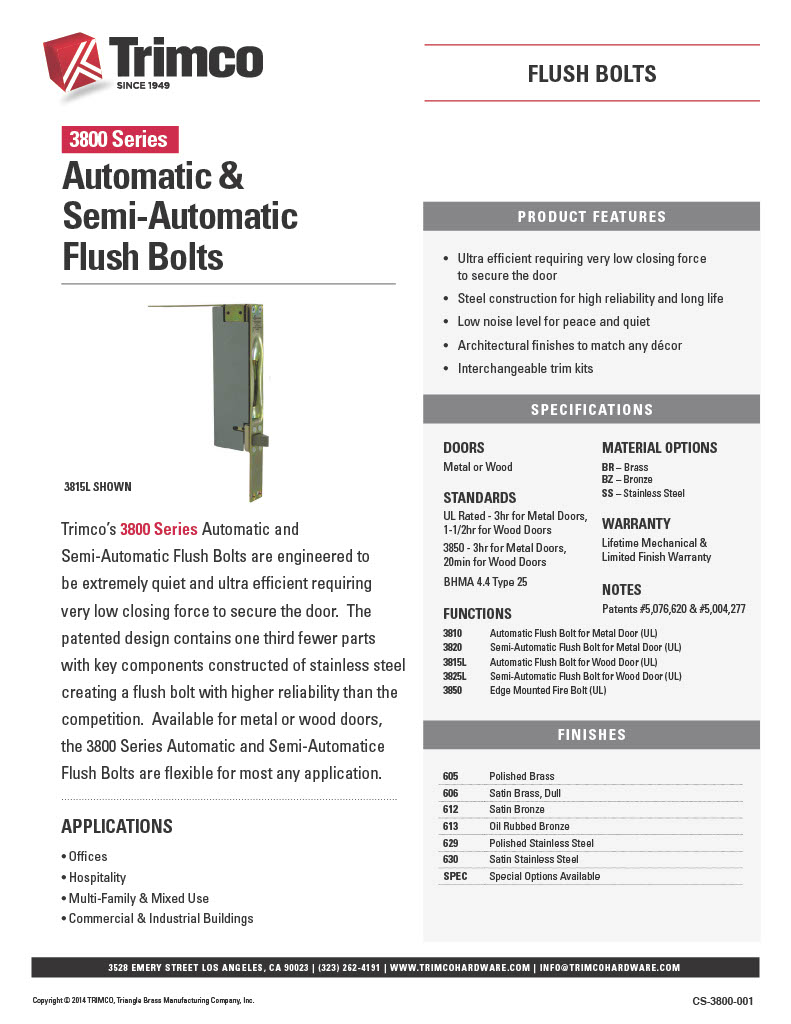

• Series: Trimco 3800 Series Automatic Flush Bolts

• Door Type: Wood doors only. Not for metal doors (see 3810 for metal door applications)

• Overall Size: 5/16 inch x 8-1/2 inch per bolt

• BHMA Standard: 4.4 Type 25

• UL Rating: 1-1/2 hour fire rated

• Patents: No. 5,076,620 and No. 5,004,277

• Key Components: Stainless steel on critical wear and load-bearing parts

• Part Count: One third fewer parts than competing designs

• Operation: Automatic. Door closing activates bolt engagement. No manual operation required

• Warranty: Lifetime mechanical and limited finish warranty

• Material Options at order: Brass (BR), Bronze (BZ), Stainless Steel (SS)

• Available Finishes: 605 Polished Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 613E Dark Oxidized Satin Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 629 Bright Stainless Steel, 630 Satin Stainless Steel. Special finishes available on request

• Compatible Strike: Trimco 3910 or 3911 dust proof strike. Ordered separately
