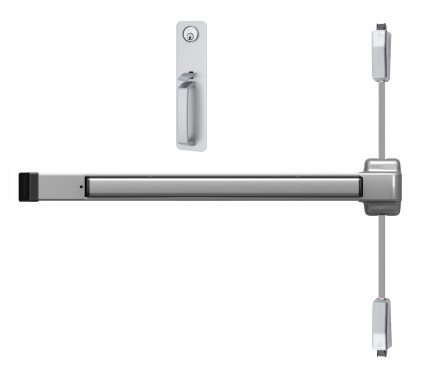

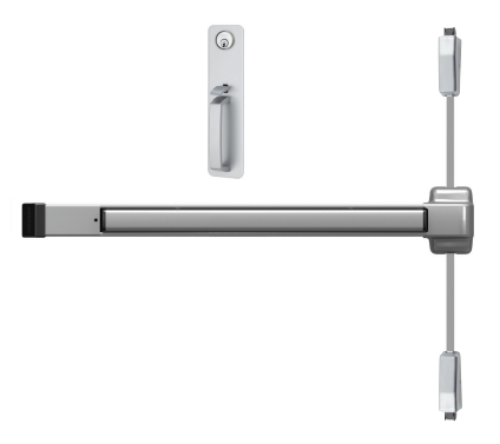

Von Duprin 2227TP Vertical Rod Exit Device with 230TP Thumbpiece Trim

Von Duprin 2227TP Vertical Rod Exit Device with 230TP Thumbpiece Trim

Key Locks & Unlocks - ANSI Function: 05 (Cylinder must be ordered separately)

Device Handing:Non-Handed

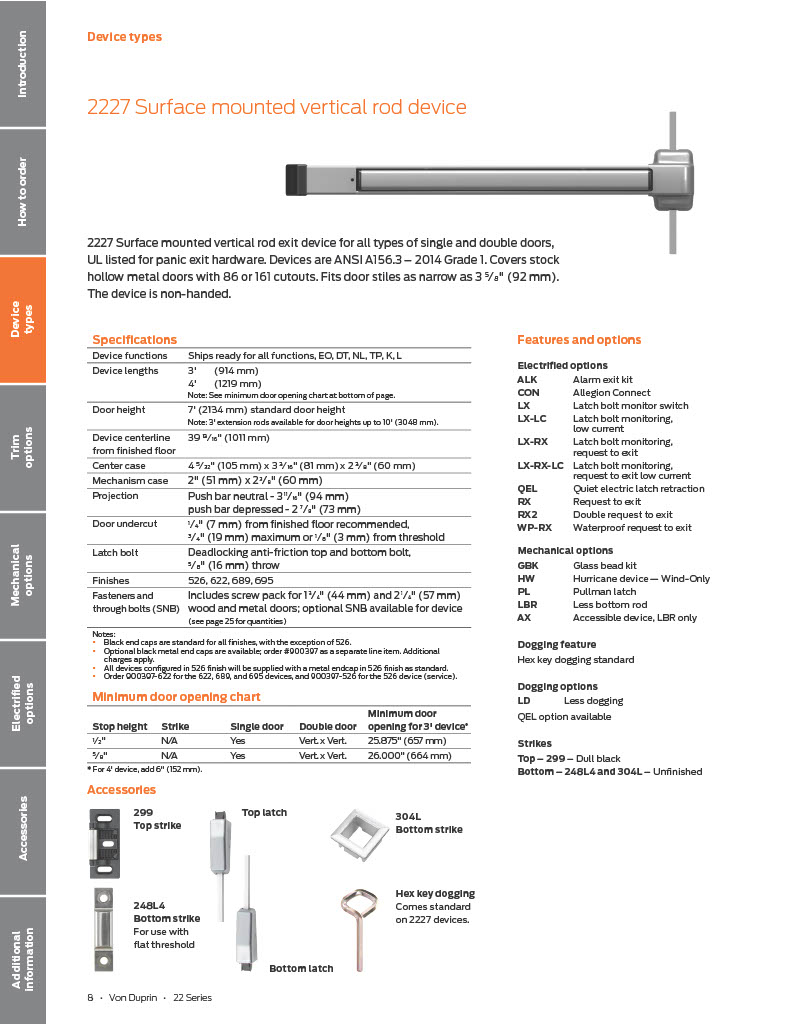

Device Lengths:3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog)

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Strikes:Top 299 Dull Black, Bottom 248L-4 and 304L Unfinished

Dogging Feature:Hex key dogging standard

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking Anti-friction Top and Bottom Bolt, 5/8" (16mm) throw.

Device Centerline from Finished Floor: 39 13/16" (1011mm) at center of device.

Door Undercut:1/4" (7mm) from finished floor recommended, 3/4" (19mm) maximum or 1/8" (3mm) from threshold.

Fits door stiles as narrow as 3-5/8" (92mm).

Covers stock hollow metal doors with 86 or 161 cutouts.

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 2227TP, SP28, SP313, 2227TPSP28 , 2227TPSP313
