Product Details

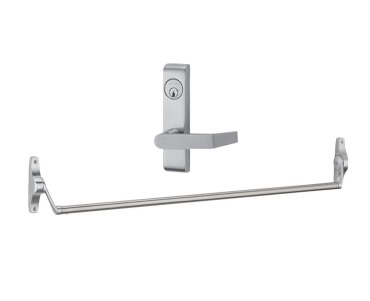

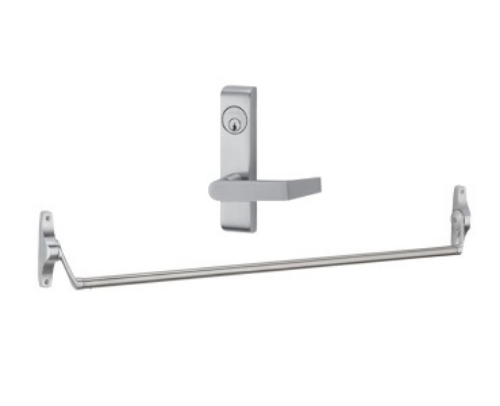

Von Duprin 55-L Rim Panic Crossbar Exit Device, For 4' Doors - With 379L Trim

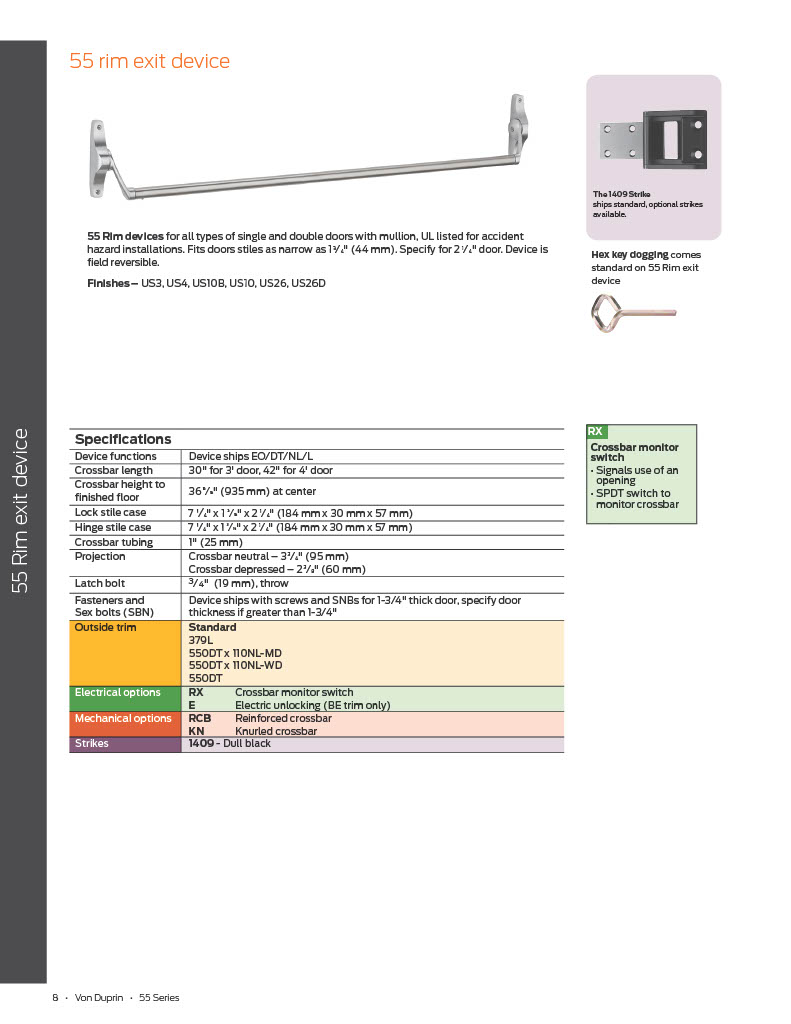

55 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations

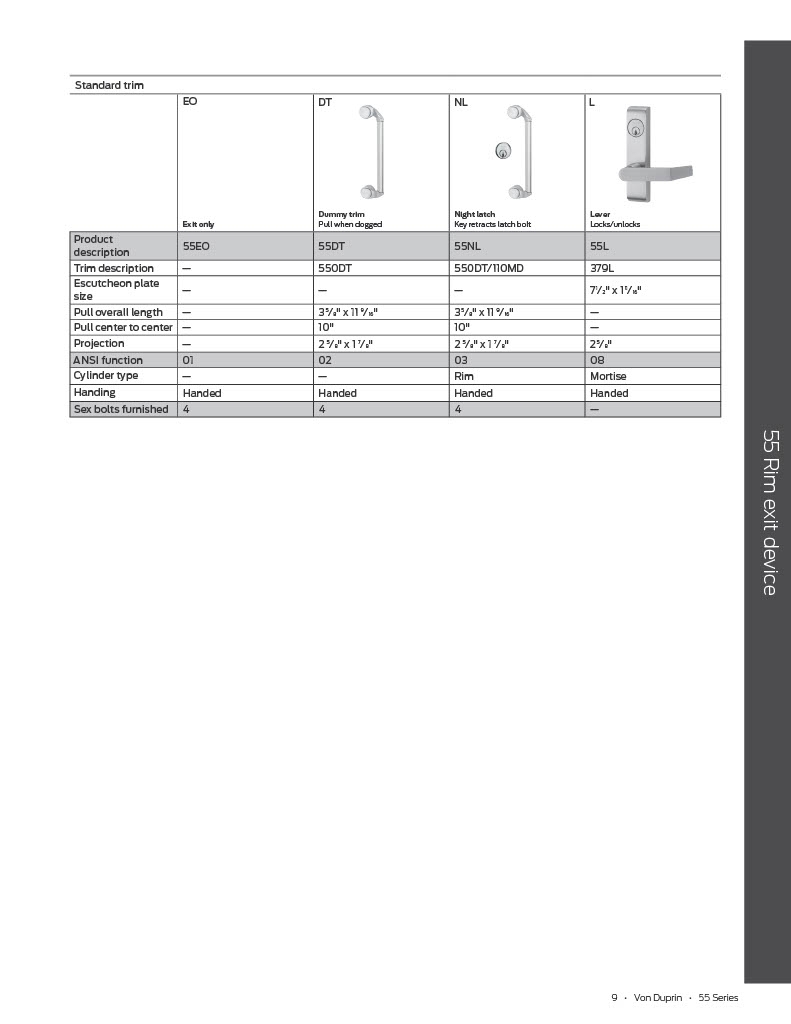

Trim Function - L: Lever - Key locks and unlocks lever.
Trim description:379L.
Escutcheon plate size: 7 1/2" x 1 11/16".
Projection:2 5/8".
ANSI function:08.
Cylinder type:Rim.
Handing:Handed.
Crossbar length:42" (1067mm), Field sizeable.
Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome
Strike:Device is furnished with standard 1409 strike in dull black finish
Dogging Feature:Hex key dogging standard
Fasteners:Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors
Latch Bolt:3/4" (19mm) throw latch bolt
Crossbar height to finished floor: 36-13/16" (1011mm) at center
Fits door stiles as narrow as 1-3/4" (44mm)
All 55 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade I.
Model:Von Duprin 55EO, US3, US4, US10, US10B, US26, US26D
