Von Duprin 9847WDCEO / 9947WDCEO Concealed Vertical Rod, For Wood Doors

Von Duprin 9847WDCEO / 9947WDCEO Wood Door Concealed Vertical Rod Device*- Exit Only*

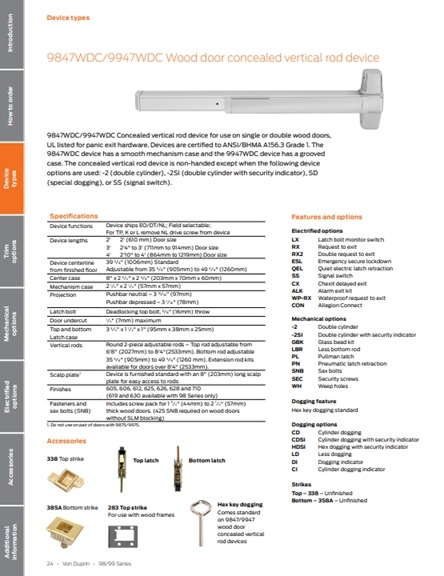

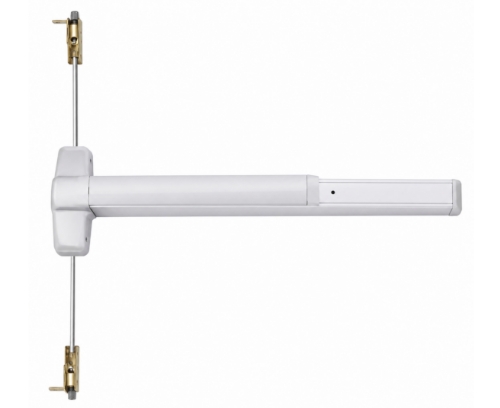

9847WDC / 9947WDC concealed vertical rod device for use on single or double wood doors, UL listed for Panic Exit Hardware.

Scalp Plate Device is furnished standard with an 8" (203mm) long scalp plate for easy access to rods.                        Note: Do not use on pair of doors with 9875/9975.

Devices are ANSI A156.3 2001 Grade 1.

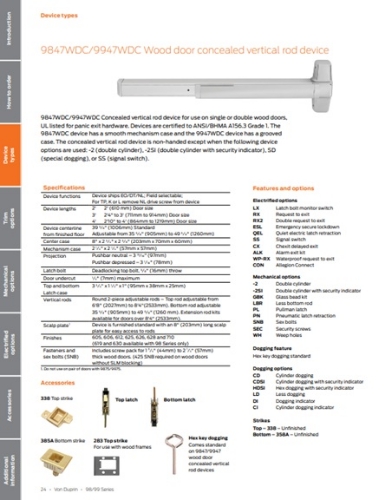

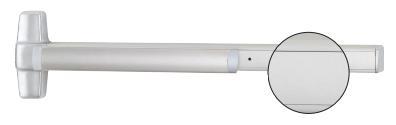

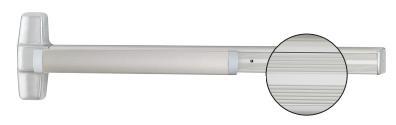

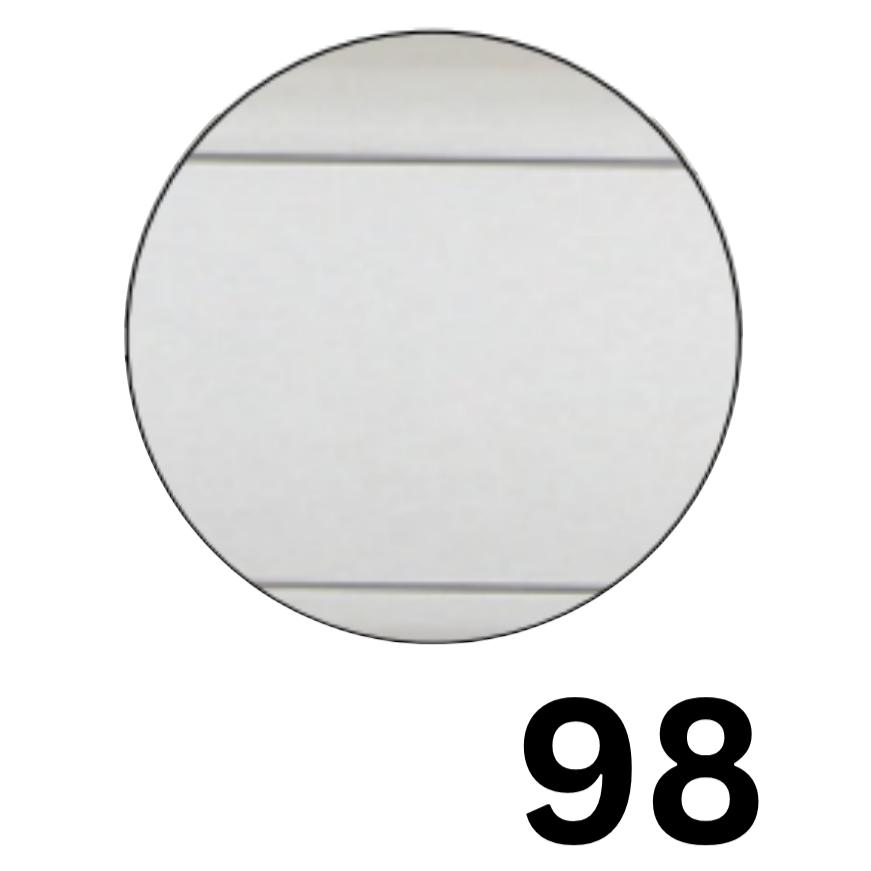

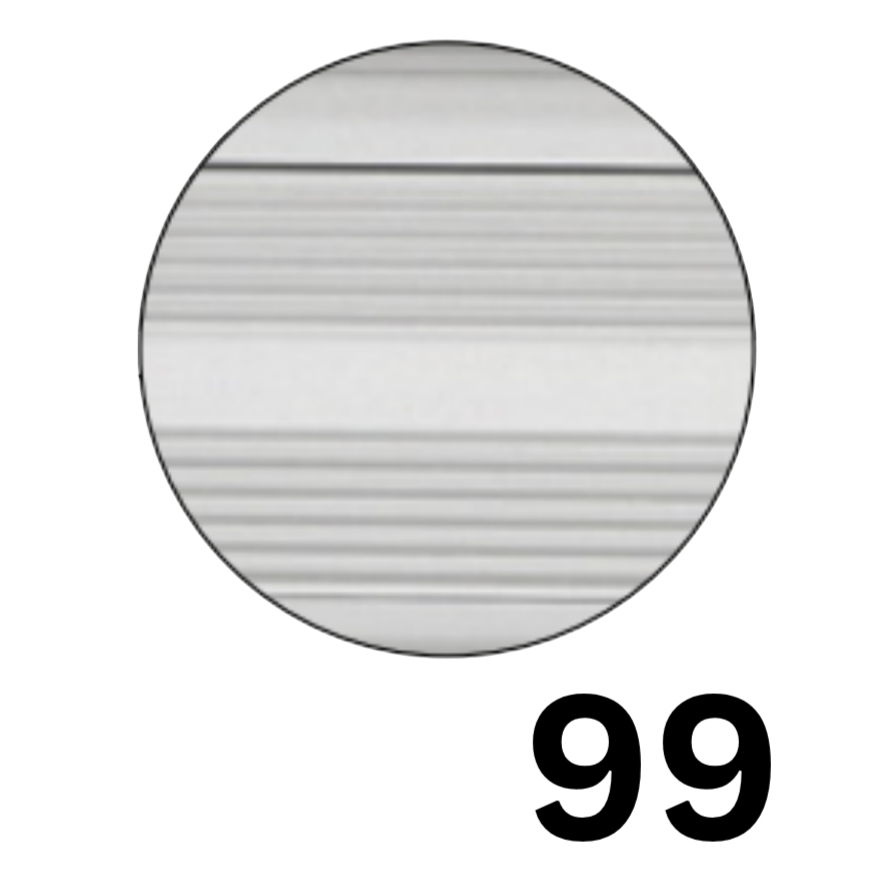

The 9847WDC device has a smooth mechanism case and the 9947WDC device has a grooved case.

Device Handing: Non-Handed

Device Lengths: 3' (914mm): 2'4' to 3' (711mm to 914 mm) Door Size                            4' (1219mm): 2'10" to 4' (864 mm to 1219 mm) Door Size

Door Height Vertical Rods: Round 2-piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).

Dogging Feature: Hex key dogging standard

Latch Bolt: Deadlocking Top & Bottom Bolt, 5/8" (16mm) throw

Strike: Top - 338 Unfinished, Bottom 385A - Unfinished

Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood doors.

Finishes: US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size                       4' 2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor: 39-5/8" (1006 mm)

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)

Top & Bottom Latch Case: 3-3/4" x 1-1/2" x 1" (95mm x 38mm x 25mm)

Projection: Pushbar Neutral 3-13/16" (97 mm)                 Pushbar Depressed 3-1/16" (78 mm)

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin 9847WDC, 9947WDC, 9847WDCEO, 9947WDCEO, 9847WDC/9947WDC, 9847WDC/9947WDCEO, RX9847WDC, RX9947WDC, RX9847WDCEO, RX9947WDCEO, ALK9847WDC, ALK9947WDC, ALK9847WDCEO, ALKWDC9947EO, RX, ALK, US3, US4, US10, US10B, US26, US26D, US28, US32D
