Von Duprin QEL9827EO-F / QEL9927EO-F Surface Mounted Vertical Rod Device with Quiet Electric Latch Retraction- Fire Rated - Exit Only

Von Duprin QEL9827EO-F / QEL9927EO-F Surface Mounted Vertical Rod Device with Quiet Electric Latch Retraction*- Fire Rated*- Exit Only

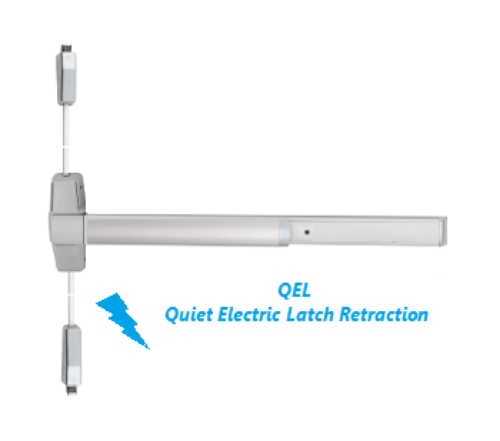

The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging.

QEL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.

UL approved for Class II circuit applications.

The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply.

QEL9827-F / QEL9927-Ffire exit surface mounted vertical rod device pairs of doors up to 8x 10(2438mm x 3048mm) , UL listed for Fire Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

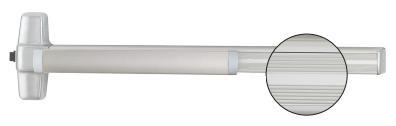

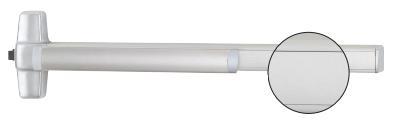

The QEL9827-F device has a smooth mechanism case and the QEL9927-F device has a grooved case.

Device Handing:Non-Handed

Device Lengths:3' (914mm), 4' (1219mm)

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'

Dogging Feature:No mechanical dogging.

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw

Strike:Top - 299F (499F LBR) Dull Black, Bottom 304L - Unfinished

Fasteners:Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available

Finishes:US26D - Dull Chromium, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, US32D - Satin Stainless Steel-available with 98 Series only

Dimensions:

Device lengths:  - 3' - 2'4" to 3' (711mm to 914 mm) Door Size. - 4' - 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: - Pushbar Neutral 3-13/16" (97 mm). - Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin QEL9827-F, QEL9927-F, QEL9827EO-F, QEL9927EO-F, QEL9827/QEL9927-F, QEL9827/QEL9927EO-F, QEL9827F, QEL9927F, QEL9827EOF, QEL9927EOF, QEL9827/QEL9927F, QEL9827/QEL9927EOF,RXQEL9827F, RXQEL9927F, RXQEL9827EOF, RXQEL9927EOF, RX, 313, US26D, US28, US32D

Solenoid Specifications: Continuous Duty - 24 VDC. Current Inrush - 16 Amps. Current Holding - 0.3 Amps.

Solenoid Resistance: grn-yel 1.2 - 2.2 OHMS. grn-org 100 - 150 OHMS.
