Von Duprin QEL9875EO / QEL9975EO Mortise Panic Quiet Electric Latch

Von Duprin QEL9875EO / QEL9975EO Mortise Lock Panic Exit Device*with Electric Latch Retraction*- Exit Only

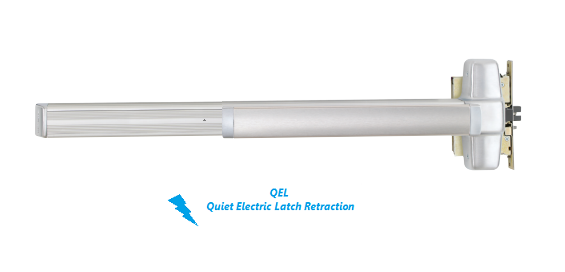

The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch  bolt and immediately change an exit door to push-pull operation. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging.

QEL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.

UL approved for Class II circuit applications.

The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply.

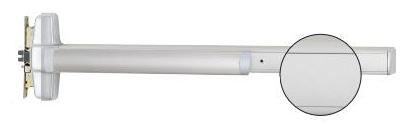

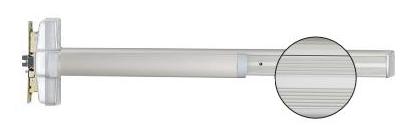

QEL9875 / QEL9975 mortise lock device for all types ofsingle or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.The QEL9875 device has a smooth mechanism case and the QEL9975 device has a grooved case.

Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).

The 7500 Mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Strike:575 Dull Black.

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze,US26 - Polished Chromium, US26D - Dull Chromium,US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, US32D - Satin Stainless Steel available with 98 Series only.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size. 4' 2'10" to 4' (864 mm to 1219 mm) Door size.

Device Centerline from Finished Floor: 39 13/16" (1011 mm). 39 11/16" (1008 mm) with mullion.

Center Case Dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm).

Projection: Pushbar neutral – 3 13/16" (97 mm). Pushbar depressed – 3 1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin QEL9875, QEL9975, QEL9875EO, QEL9975EO, QEL9875/QEL9975, QEL9875/QEL9975EO, RXQEL9875, RXQEL9975, RXQEL9875EO, RXQEL9975EO,US3, US4, US10, US10B, US26, US26D, US28, US32D

Specification Solenoid Specifications: Continuous Duty - 24 VDC. Current Inrush - 16 Amps. Current Holding - 0.3 Amps.

Solenoid Resistance: grn-yel 1.2 - 2.2 OHMS. grn-org 100 - 150 OHMS.
