Von Duprin QEL98EO-F / QEL99EO-F Rim Panic - Electric Latch - Fire Rated

Von Duprin QEL98EO-F / QEL99EO-F Rim Panic Exit Device with Quiet Electric Latch Retraction - Fire Rated

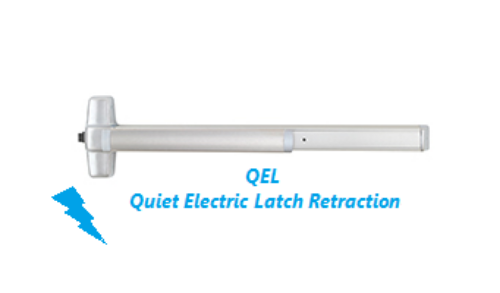

The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging.

QEL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.

UL approved for Class II circuit applications.

The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply.

QEL98-F and QEL99-F rim fire exit devices for all types of single doors up to 4x 10(1219mm x 3048mm) or 8x 10(2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for Fire Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

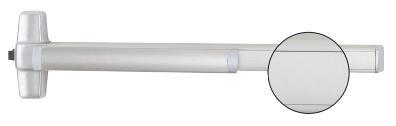

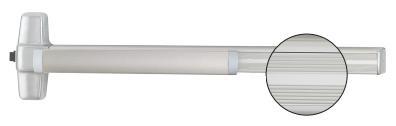

The QEL98-F device has a smooth mechanism case and the QEL99-F device has a grooved case.

No Mechanical Dogging

Latch Bolt:3/4" (19mm) throw latch bolt

Strike:Device is furnished with standard 299F strike in dull black finish

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available for metal doors. 425 & 825 SNB required on wood doors without SLM blocking.

Finishes: US26 - Polished Chromium, US26D - Dull Chromium,US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze,US32D - Satin Stainless Steel available with 98 Series only

Dimensions

Device lengths:3' 2'4' to 3' (711mm to 914 mm) Door Size  -  4' 2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor:39-13/16" (1011 mm)  -  39-11/16" (1008 mm) with Mullion

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Projection:Pushbar Neutral 3-13/16" (97 mm)  -  Pushbar Depressed 3-1/16" (78 mm)

Model: Von Duprin QEL98F, QEL99F, QEL98EOF, QEL99EOF, QEL98/QEL99-F, QEL98/QEL99EO-F, RXQEL98F, RXQEL99F, RXQEL98EOF, RXQEL99EOF, 313, US26, US26D, US28, US32D

Solenoid Specifications: Solenoid Resistance: Continuous Duty - 24 VDC -grn-yel 1.2 - 2.2 OHMS Current Inrush - 16 Amps -grn-org 100 - 150 OHMS Current Holding - 0.3 Amps
