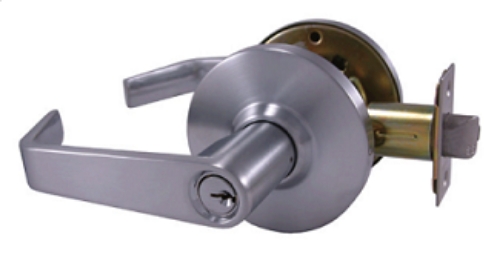

Design Hardware DH-J-82-F Entry Lever Lockset

Design Hardware DH-J-82-F Grade 2 Entry*Lever*Lockset

Function Description:Entry/Office-Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or Inside lever is turned. Deadlocking latchbolt operated by Inside lever at all times.

ANSI No.F82

Backset & Latchface:2 3/4" backset std. with 1 1/8'' x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Bore Size:2.1250

Door Thickness:Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick

Function:82-Entry

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Rose/Escutcheon Trim:Round Rose

Series:J Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :6 Pin Brass, C Kwy, with 2 Keys or Prepared for Small format IC core (less core)

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-J-82-F-26D, DH-J-82-F-10B,

ANSI :Meets & Exceeds ANSI  A156.2, Series 4000, Grade 2 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Trim : 5 Solid zinc diecast levers, 3 3/8 wrought brass roses Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2  2 1/8 crossbore with (2) 3/8 Thru bolt holes Standard Lever Design : Flat (standard ? stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
