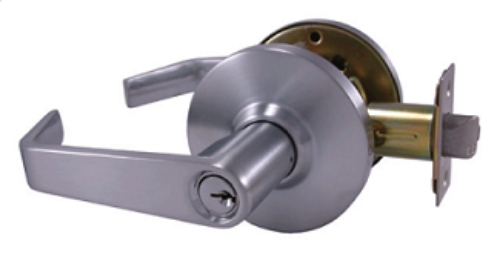

Design Hardware DH-J-86-F Storeroom Lever Lockset

Product Details

Design Hardware DH-J-86-F Grade 2 Storeroom Lever Lockset, With Schlage "C" KeywayFunction Description:

Storeroom-Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.

ANSI No.F86

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Bore Size:2.1250

Door Thickness:Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Series: J Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :6 Pin Brass, C Kwy, with 2 Keys

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-J-86-F-26D, DH-J-86-F-10B,

Design Hardware DH-J-86-F Storeroom Lever Lockset

Name: Design Hardware DH-J-86-F Storeroom Lever Lockset
SKU: DH-J-86-F
Price: 65.35 USD
Availability: InStock

SKU: DH-J-86-F

In Stock

Chat

$65.35

About this item

The J Series is a lock for the more common application. This lock offers a fixed lever mechanism yet still has removable through bolts and a large 3 3/8" rosette.

Resources

https://designhardware.net/products/lockset-j-series/

Design Hardware DH-J-86-F Grade 2 Storeroom Lever Lockset, With Schlage "C" KeywayFunction Description:

Storeroom-Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.

ANSI No.F86

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Bore Size:2.1250

Door Thickness:Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Series: J Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :6 Pin Brass, C Kwy, with 2 Keys

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-J-86-F-26D, DH-J-86-F-10B,

Design Hardware DH-J-86-F Storeroom Lever Lockset

Product code: DH-J-86-F

In Stock

$110.55

$65.35

ANSI :Meets & Exceeds ANSI A156.2, Series 4000, Grade 2 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Trim : 5 Solid zinc diecast levers, 3 3/8 wrought brass roses Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2 2 1/8 crossbore with (2) 3/8 Thru bolt holes Standard Lever Design : Flat (standard stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
