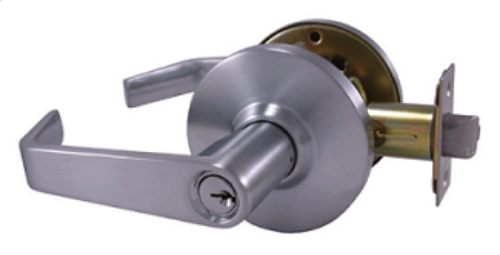

Design Hardware DH-J-84-F Classroom Lever Lockset

Design_Hardware_DH-J-82
Design_Hardware_DH-J-82
naxt
prev

Product Details

Design Hardware DH-J-84-F Grade 2 Classroom Lever Lockset,  With Schlage "C" KeywayFunction Description:

Classroom-Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside with key. When outside lever is locked, Latchbolt is operated by key in outside lever or by rotating inside lever.

ANSI No.F84

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Bore Size:2.1250

Door Thickness:Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Rose/Escutcheon Trim:Round Rose

Series:J Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :6 Pin Brass, C Kwy, with 2 Keys

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-J-84-F-26D, DH-J-84-F-10B,

Design Hardware DH-J-84-F Classroom Lever Lockset

SKU: DH-J-84-F

In Stock
Picture for manufacturer Design Hardware
icon Chat

$65.22

Finish *

US26D - Satin Chrome
US26D - Satin Chrome
US10B - Oil Rubbed Bronze [+$4.27]
US10B - Oil Rubbed Bronze [+$4.27]

Keying *

About this item

The J Series is a lock for the more common application. This lock offers a fixed lever mechanism yet still has removable through bolts and a large 3 3/8" rosette.

Resources

Design Hardware DH-J-84-F Grade 2 Classroom Lever Lockset,  With Schlage "C" KeywayFunction Description:

Classroom-Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside with key. When outside lever is locked, Latchbolt is operated by key in outside lever or by rotating inside lever.

ANSI No.F84

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Bore Size:2.1250

Door Thickness:Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Rose/Escutcheon Trim:Round Rose

Series:J Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :6 Pin Brass, C Kwy, with 2 Keys

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-J-84-F-26D, DH-J-84-F-10B,

Design_Hardware_DH-J-82
Design Hardware DH-J-84-F Classroom Lever Lockset

Product code: DH-J-84-F

In Stock

$65.22

$65.22

ANSI :Meets & Exceeds ANSI  A156.2, Series 4000, Grade 2 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Trim : 5" Solid zinc diecast levers, 3 3/8" wrought brass roses Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2  2 1/8 crossbore with (2) 3/8 Thru bolt holes Standard Lever Design : Flat (standard  stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
