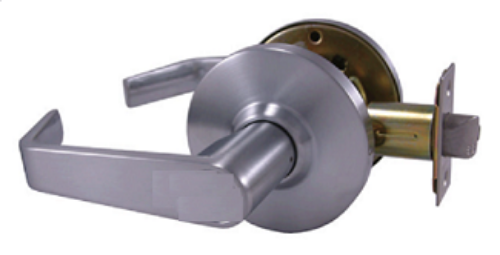

Design Hardware DH-J-75-F Passage Lever Lockset

Design Hardware DH-J-75-F Grade 2 Passage Lever LocksetFunction Description:

Passage - Latchbolt operated by lever from either side at all times

ANSI No.F75

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Bore Size:2.1250

Door Thickness:Factory Set for 1 3/4 can be adjusted to fit 1 3/8 up to 2 thick

Lever Style:F-Flat Lever

Trim :5" Solid zinc diecast levers, 3 3/8" wrought brass roses Series: J Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Handing :Non-Handed-Completely reversible

Model: DH-J-82-F-26D, DH-J-82-F-10B,

ANSI:Meets ANSI - A156.2, Grade 2 Standards

UL Listings : UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2 - 2 1/8" crossbore with (2) 3/8" Thru bolt holes Standard Lever Design : Flat (standard - stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
