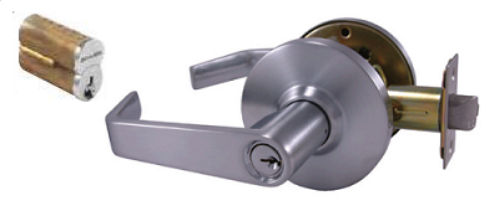

Design Hardware DH-J-86IC-F Storeroom Lever Lockset, Accepts Small Format IC Core (less core)

Design Hardware DH-J-86IC-F Grade 2 Storeroom Lever Lockset, Accepts Small Format IC Core (less core)

Function Description: Storeroom -Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Bore Size:2.1250

Door Thickness:Factory Set for 1 3/4 can be adjusted to fit 1 3/8 up to 2 thick

Function:86-Storeroom

Series: J Series

Strike:ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner

Cylinder :for Small format IC core (less core)

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-J-86IC-F-26D, DH-J-86IC-F-10B,

ANSI :Meets & Exceeds ANSI  A156.2, Series 4000, Grade 2 Standards

UL Listings : UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Trim : 5 Solid zinc diecast levers, 3 3/8 wrought brass roses Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2  2 1/8 crossbore with (2) 3/8 Thru bolt holes Standard Lever Design : Flat (standard  stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
