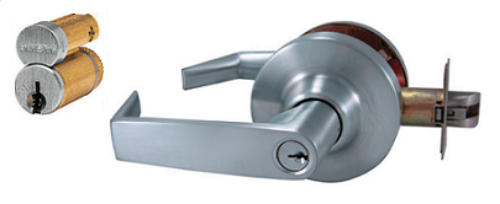

Design Hardware DH-Z-82SLFIC-F Entry Lever Lockset - Accepts Schlage LFIC Core

Design Hardware DH-Z-82SLFIC-F Grade 2 Entry Lever Lockset - Accepts Schlage LFIC Core, (core not included)

Function Description:Entry/Office-Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or Inside lever is turned. Deadlocking latchbolt operated by Inside lever at all times.

ANSI No.F82

Clutching:Clutching levers standard for vandal resistance on locking functions

Standard Latch:2 3/4" backset with 1 1/8" x 2 1/4" latchface - Stainless steel latch bolt with 3/4" projection

Optional Latches:2 3/4" backset with 1 1/8" x 2 1/4" latchface - Stainless steel latch w/ 1/2" projection 2 3/8" backset with 1" x 2 1/4" latchface - Stainless steel latch w/ 1/2" projection Door Thickness: Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick Door Preparation: ANSI A115.2 - 2 1/8" crossbore with (2) 5/16" thru bolt holes unction:82-Entry

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Rose/Escutcheon Trim:Round Rose

Series: Z Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :  Prepared for Schlage Large Format IC core (less core)

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-Z-82SLFIC-F-26D, DH-Z-82SLFIC-F-26D,

ANSI :Meets & Exceeds ANSI  A156.2, Series 4000, Grade 2 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Cycle Testing:Tested to over 2 Million Cycles

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Trim : 5 Solid zinc diecast levers, 3 3/8 wrought brass roses Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag

Lead Lining Option:1/32" lead lined rose & 1/32" lead wrapped latch bolt (requires 1" bore)

Standard Lever Design :Flat (standard - stocked in US26D and US10B) Standard Finish : US26D & US10B (in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
