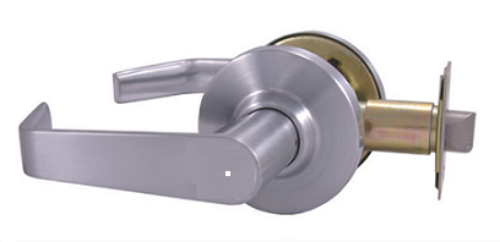

Design Hardware DH-V-76-F Privacy Lever Lockset

Design Hardware DH-V-75-F Grade 2 Privacy*Lever LocksetFunction Description:*

Privacy - Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating inside lever or closing door

ANSI No.F76

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Latchbolt:Stainless Steel with 1/2" projection, Deadlocking on keyed functions & exit latch

Door Thickness:Factory Set for 1 3/4" - 1 3/8" require shims, can be adjusted to fit up to 2" thick

Lever Style:F-Flat Lever

Clutching:Clutching levers standard for vandal resistance on locking functions

Trim :5" Solid zinc diecast levers, 3" wrought brass roses (will not cover thru bolt holes)

Series:V Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Handing :Non-Handed-Completely reversible

Fasteners :Combination screws for wood or metal doors & frames

Model: DH-V-76-F-26D, DH-V-76-F-10B,

ANSI:Meets ANSI - A156.2, Series 4000, Grade 2 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2 - 2 1/8" crossbore Standard Lever Design : Flat (standard - stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Warranty : Limited Lifetime Warranty
