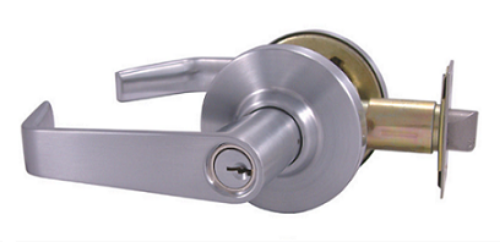

Design Hardware DH-V-82-F Entry Lever Lockset

Design Hardware DH-V-82-F Grade 2 Entry*Lever LocksetFunction Description:*

 Entry/Office - Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times

ANSI No.F82

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors

Latchbolt:Stainless Steel with 1/2" projection, Deadlocking on keyed functions & exit latch

Door Thickness:Factory Set for 1 3/4" - 1 3/8" require shims, can be adjusted to fit up to 2" thick

Lever Style:F-Flat Lever

Clutching:Clutching levers standard for vandal resistance on locking functions

Trim :5" Solid zinc diecast levers, 3" wrought brass roses (will not cover thru bolt holes)

Series:V Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Handing :Non-Handed-Completely reversible

Cylinder Options:6 Pin Brass, C Kwy, 2 keys std

Fasteners :Combination screws for wood or metal doors & frames

Model: DH-V-82-F-26D, DH-V-82-F-10B,

ANSI:Meets ANSI - A156.2, Series 4000, Grade 2 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2 - 2 1/8" crossbore Standard Lever Design : Flat (standard - stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Warranty : Limited Lifetime Warranty
