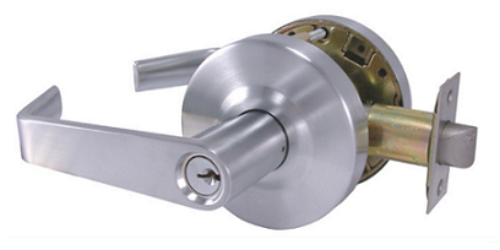

Design Hardware DH-X-84-F Classroom Lever Lockset

Design Hardware DH-X-84-F Grade 1 Classroom Lever LocksetFunction Description:

Classroom - Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside with key. When outside lever is locked, Latchbolt is operated by key in outside lever or by rotating inside lever

ANSI No.F84

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors Latchbolt: Stainless Steel with 1/2" projection, Deadlocking on keyed functions & exit latch Door Thickness: Factory Set for 1 3/4 can be adjusted to fit 1 3/8 up to 2 thick

Lever Style:F-Flat Lever

Trim :5" Solid zinc diecast levers, 3 3/8" wrought brass roses Series:  X Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder:6 Pin Brass, C Kwy, with 2 Keys std

Handing :Non-Handed-Completely reversible

Model: DH-X-84-F-26D, DH-X-84-F-10B,

ANSI:Meets ANSI - A156.2, Series 4000, Grade 1 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2 - 2 1/8" crossbore with (2) 3/8" Thru bolt holes Standard Lever Design : Flat (standard - stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
