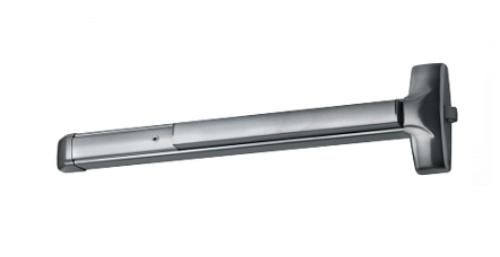

Detex 1008DS 630 99 36 Advantex Wide Stile Rim Exit Device, W/Classroom Lever Trim, Satin Stainless Steel Finish, 36" Device

Detex 1008DS 630 99 36 Advantex Wide Stile Rim Exit Device, W/Classroom Lever Trim, 36"

Benefits

- Tough and durable design for years of trouble-free service in high-use, high-abuse environments

- Fast and accurate installation

- Minimal door prep saves time and money

- Outside trims are easily changed or re-keyed without removing device from door

Features

- Patented mounting plate and strike locator system replaces paper templates

- Stainless steel deadlocking, Pullman-type latch bolt

- Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing

- All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process

- Heavy-duty angled end-cap deflects damage away from device

- Non-handed

- Field sizeable

- 1/8 turn hex or cylinder dogging

Mechanical Options

- CD - Cylinder Dogging

- HD - Hex Dogging (Std.)

- 99 - Surface Strike (Std.)

- 36 - Fits 36" Door Width (Std.)

Accessories

- Trim FunctionsSee Below

Technical Information

- Door Types - Wood, Hollow Metal, Fiberglass or Aluminum

- Door Thickness - Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)

- Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike

- Fasteners - Machine and Self- Drilling Screws standard

Finish

630 / US32D Brushed Stainless Steel

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty

Model:Detex 1008DSHD 630 99 36 , 1008DSHD- 630-99-36, 1008DS HD 630 99 36, 1008DS-HD 630 99 36, 1008DSHD6309936

Listings And Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and pairs of 4’x8’ with F90KR keyed removable mullion

Meets ADA requirements

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

California State Fire Marshall 4140-0127:105 and 3725-0127:108

Miami-Dade County, Florida NOA 15-0415.08

State of Florida Approval FL9052
