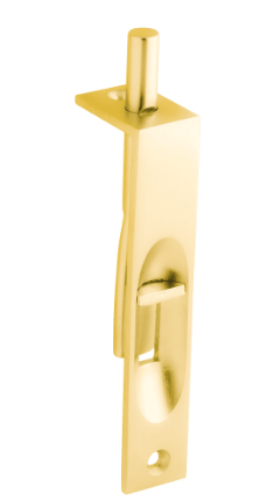

Ives 265 Manual Flush Bolt

**Ives 265 Manual Flush Bolt

**A flush bolt with radiused bottom faceplate designed specifically for simple one-step router installation.

Double action spring design provides automatic holding of brass bolt in projected or retracted position, and assures ease of operation in conjunction with deep cup finger hole.

Faceplate is polished solid brass; bolt is made from aluminum zinc alloy.

Bolt tip is 1/2" Diameter

Bolt throw is 1"

Bolt backset is 1/2"

**Dimensions

**Body Size: 3/4" W x 6" L x 1-7/16" D

Strike Size: 7/8" W x 1-3/4" L

Finishes: B3 - Brass Material - Bright Brass (605)  B5 - Brass Material - Antique Brass (609)  B10B - Bronze Material - Oil Rubbed Bronze (613)  B15 - Brass Material - Satin Nickel (619)  B26 - Brass Material - Polished Chrome Plated (625)  B26D - Brass Material - Satin Chrome Plated (626)    Model: 265B3, 265B5, 265B10B, 265B15, 265B26, 265B26D
