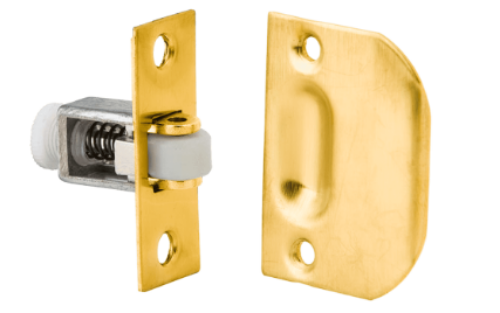

Ives 335 Adjustable Roller Catch

**Ives 335 Roller Catch

**Smooth, positive latching action insured by powerful conical spring.

Durable nylon roller insures quiet operation.

Adjustable tension. Adjustments can be varied from 4 to 17 lbs. of holding power making possible a wide range of door performance.

Easily installed on thin doors.

Full lip style strike designed for simplified mortising.

Made from wrought brass or wrought steel.

Packed with sheet metal screws.

**Dimensions

**Face Plate: 7/8" Wide x 2-1/4" High

Bore: 1-3/4" Deep x 13/16" Diameter

Strike: 1-5/8" Wide x 2-1/4" High, Lip to center- 1-3/16"

Finishes: B3 - Brass Material - Bright Brass (605)  B5 - Brass Material - Antique Brass (609)  B10 - Bronze Material - Satin Bronze (612)  B10B - Bronze Material - Oil Rubbed Bronze (613)  B15 - Brass Material - Satin Nickel (619)  B26 - Brass Material - Polished Chrome Plated (625)  B26D - Brass Material - Satin Chrome Plated (626)

Model: 335B3, 335B5, 335B10, 335B10B, 335B15, 335B26, 335B26D
