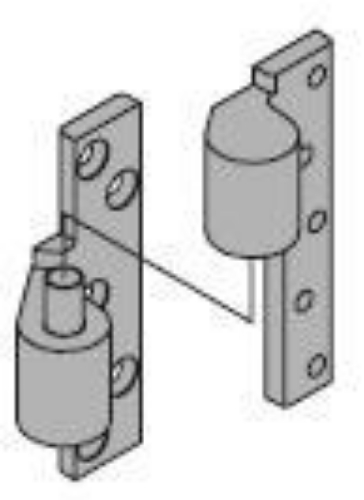

Ives 7215F-INT Fire Rated Intermediate Pivot

Ives 7215F INT Fire Rated Intermediate Pivot

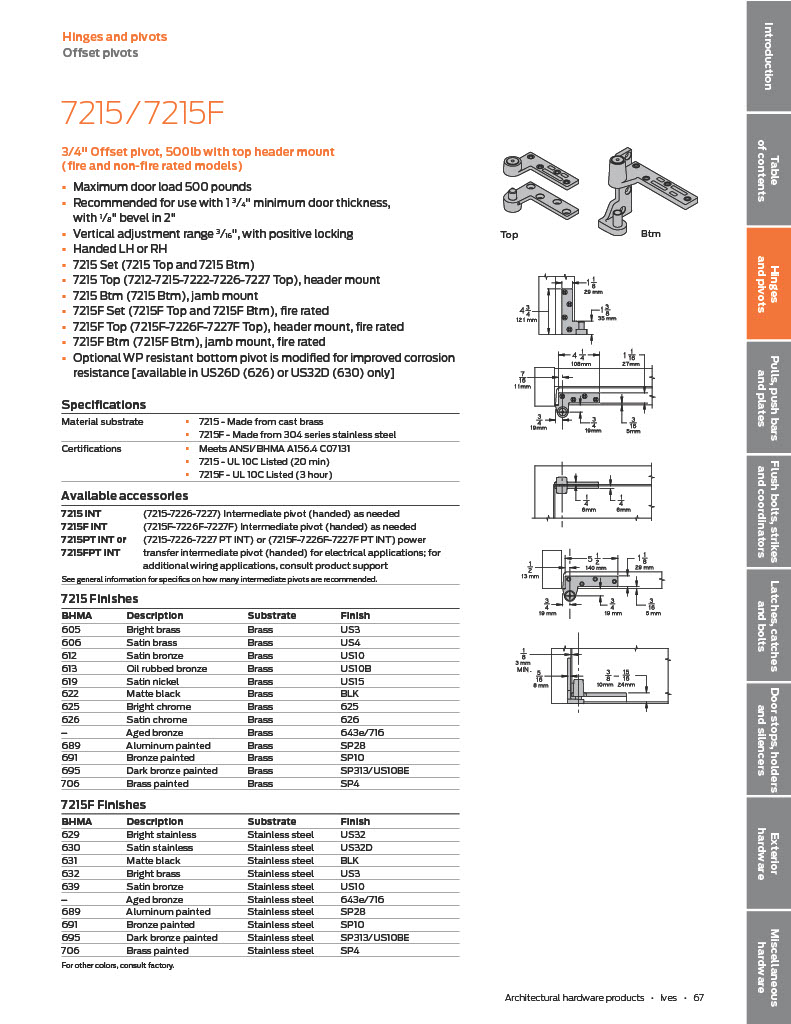

Use with 7215F, 7226F or 7227F 3/4 Offset Pivot

Handed

Vertical adjustment 3/16", include positive locking.

Model:Ives 7215F-INT, 7215FINT, 7215FINTSP28, 7215FINTSP313, 7215FINTSP10, 7215FINTSP28RH, 7215FINTSP313RH, 7215FINTSP28LH, 7215FINTSP313LH, 7215FINTUS10, 7215FINTUS32, 7215FINTUS32D, 7215FINTUS3, RH, LH. 7215F INT SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SP10 - Light Bronze Painted, US10 - Satin Bronze, US32 - Bright Stainless Steel, US32D - Satin Stainless Steel, US3 - Bright Brass, RH, LH. Right or Left hand

NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications, consult

factory. Use for door heights over 7'0" and one every 2'6" or . Use for door weight over

the pivot set limit. One additional for every additional 100 pounds. Door thickness 1-3/4"

mimumum with 1/8" bevel in 2".
