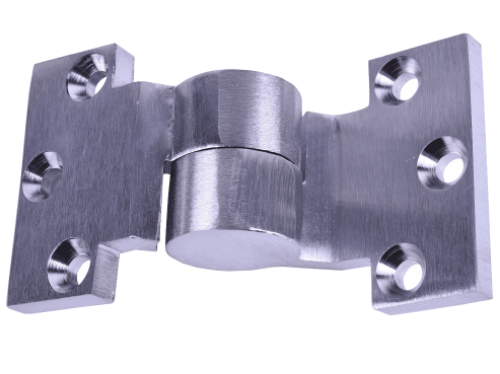

Norton Rixson 119 Intermediate Pivot, 3/4" Offset

Norton Rixson *119 Intermediate Pivot, 3/4" Offset*

Application:

 Full Mortise Handed Light Duty Pivot

  Description/Features:

 Not load-bearing Maintains door alignment Available 3/4" (19mm) offset only Non-ferrous base material Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot

 Door edges must be beveled in 1/8" in 2" Used with 117, 117-1/4, 195 pivot sets and 127 and 427 floor closers Furnished with wood and machine screws

Model:119-RH-605, 119-RH-606, 119-RH-613, 119-RH-626, 119-RH-619, 119-LH-605, 119-LH-606, 119-LH-613, 119-LH-626, 119-LH-619

Related Categories

• Intermediate Pivots
