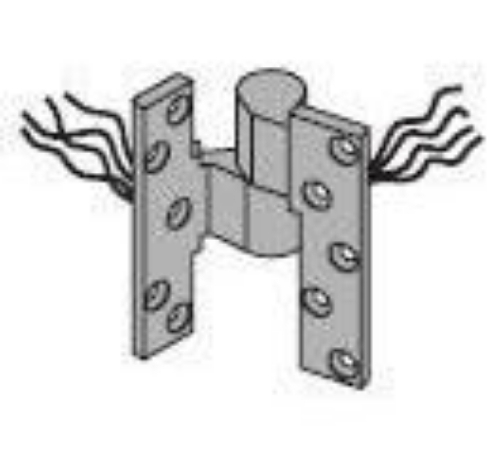

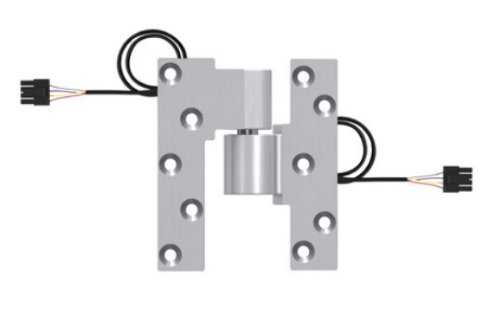

Ives 7215PT-INT TW4 Intermediate Pivot, 3/4" Offset, 4-Wire - Power Transfer

Ives 7215PT-INT TW4 Intermediate Pivot, 3/4" Offset, 4-Wire - Power Transfer

Use with 7215, 7226 or 7227 3/4" Offset Pivots

Four wires, 28 guage

Optional 8 wire available

Rated 50 VDC or VAC @ 3.5 amps. Continuous or 16 amps pulse, maximum pulse 400 milliseconds.

Non-load bearing

Use with 1-3/4" thick door mimimum, 1/8" bevel in 2".

Model: Ives 7215PT-INT, 7215PTINT, 7215PTINTSP28, 7215PTINTSP313, 7215PTINTSP10, 7215PTINTSP28RH, 7215PTINTSP313RH, 7215PTINTSP28LH, 7215PTINTSP313LH, 7215PTINTUS10, 7215PTINTUS10B, 7215PTINTUS26, 7215PTINTUS26D, 7215PTINTUS3, 7215PTINTUS4, RH, LH. 7215PT INT SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SP10 - Light Bronze Painted, SPBLK - Black Painted, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, RH, LH. Right or Left hand
