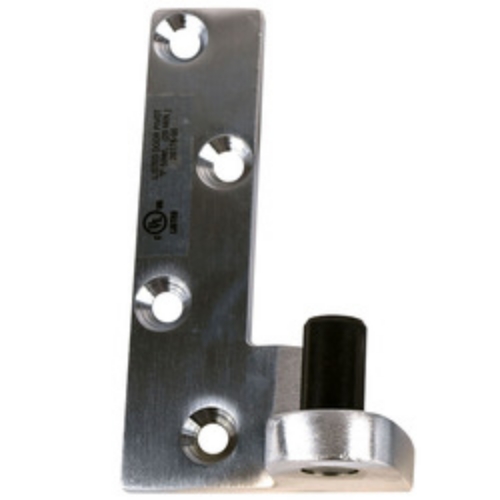

Ives 7215-INT Intermediate Pivot

Ives 7215-INT, Intermediate Pivot

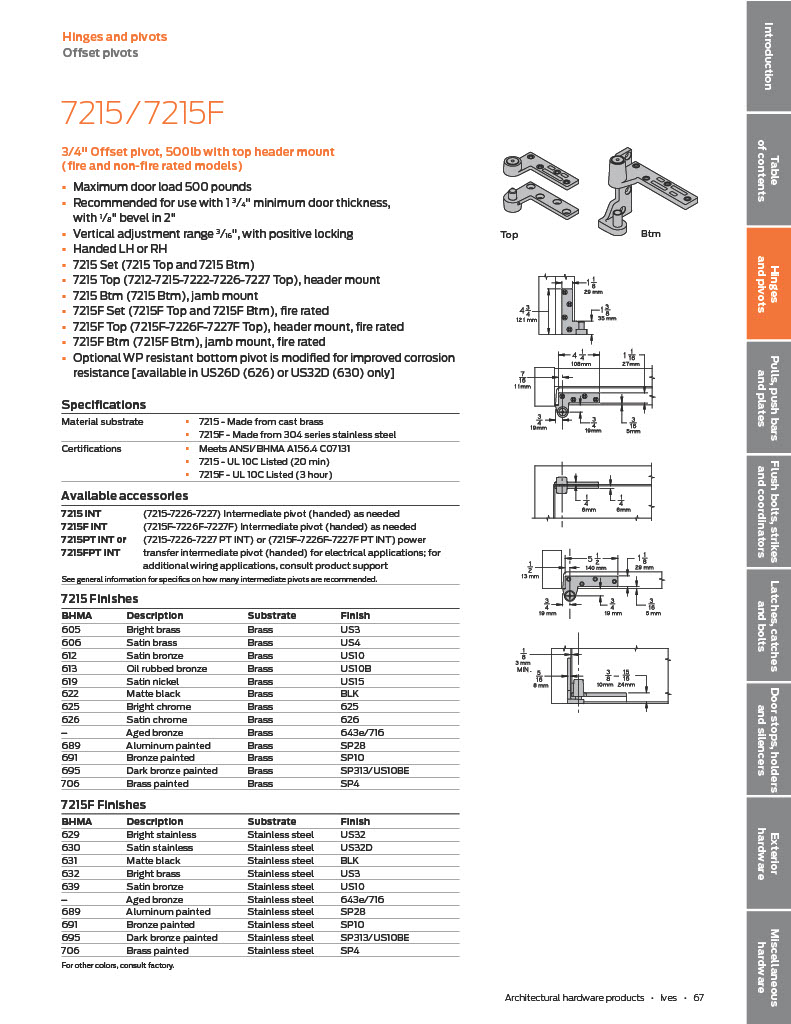

Use with 7215, 7226 or 7227 3/4 Offset Pivot

Handed

Vertical adjustment 3/16", include positive locking.

Model: Ives 7215-INT, 7215INT, 7215INTSP28, 7215INTSP313, 7215INTSPBLK, 7215INTSP28RH, 7215INTSP313RH, 7215INTSP28LH, 7215INTSP313LH, 7215INTUS10, 7215INTUS10B, 7215INTUS26, 7215INTUS26D, 7215INTUS3, RH, LH. 7215 INT SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SPBLK - Black Painted, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US3 - Bright Brass, RH, LH. Right or Left hand

NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications, consult

factory. Use for door heights over 7'0" and one every 2'6" or . Use for door weight over

the pivot set limit. One additional for every additional 100 pounds. Door thickness 1-3/4"

mimumum with 1/8" bevel in 2".
