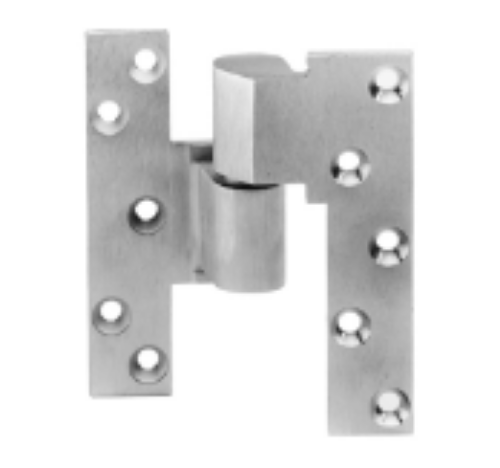

Norton Rixson M19 x 1-1/2OS Intermediate Pivot, 1-1/2" Offset

Norton Rixson *M19 x 1-1/2OS Intermediate Pivot, 1-1/2" Offset*

Application:

 Full Mortise Handed

Description/Features:

 Not load-bearing Maintains door alignment Aids in installing floor closers and bottom pivots Non-ferrous base metal 1-1/2" (38mm) offset Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot

 Door edges must be beveled in 1/8" in 2" Furnished with wood and machine screws

Model:M19 x 1-1/2OS-RH-613, M19 x 1-1/2OS LH 626, M19x1-1/2OSRH613, M19x1-1/2OSLH626, M19 x 1-1/2 OS RH 613,
