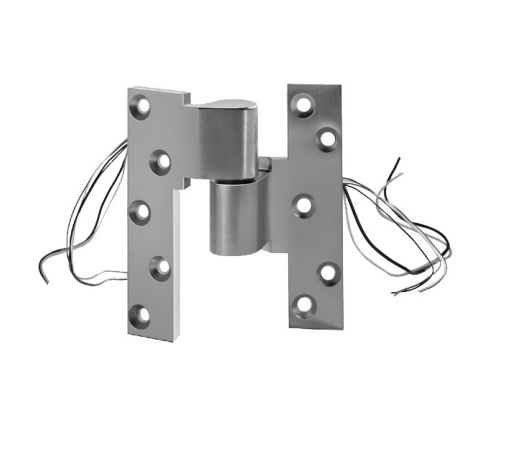

Norton Rixson EM19 Electrified Intermediate Pivot, 3/4 Offset, 4 Wires

Norton Rixson *EM19 Electrified Intermediate Pivot, 3/4 Offset, 4 Wires*

Application:

 Offset Hung Electric Pivot for Power Transfer Handed

Description/Features:

 Not load-bearing Door and jamb portion are factory assembled and cannot be separated Always use M19 intermediate pivot to install door Specify four, six, eight or twelve wires ElectroLynx® option available, suffix “QC#" (number of wires) 24-gauge wire is rated at 2 amps for low voltage, class II wiring applications 3/4" (19mm) offset Door edges must be beveled in 1/8" in 2" Furnished with wood and machine screws

Model:EM19 LH 626, EM19 RH 626, EM19 LH 613, EM19 RH 613, EM19LH626, EM19RH626, EM19LH613, EM19RH613, EM19-LH-626, EM19-RH-613

Related Categories

• Intermediate Pivots
