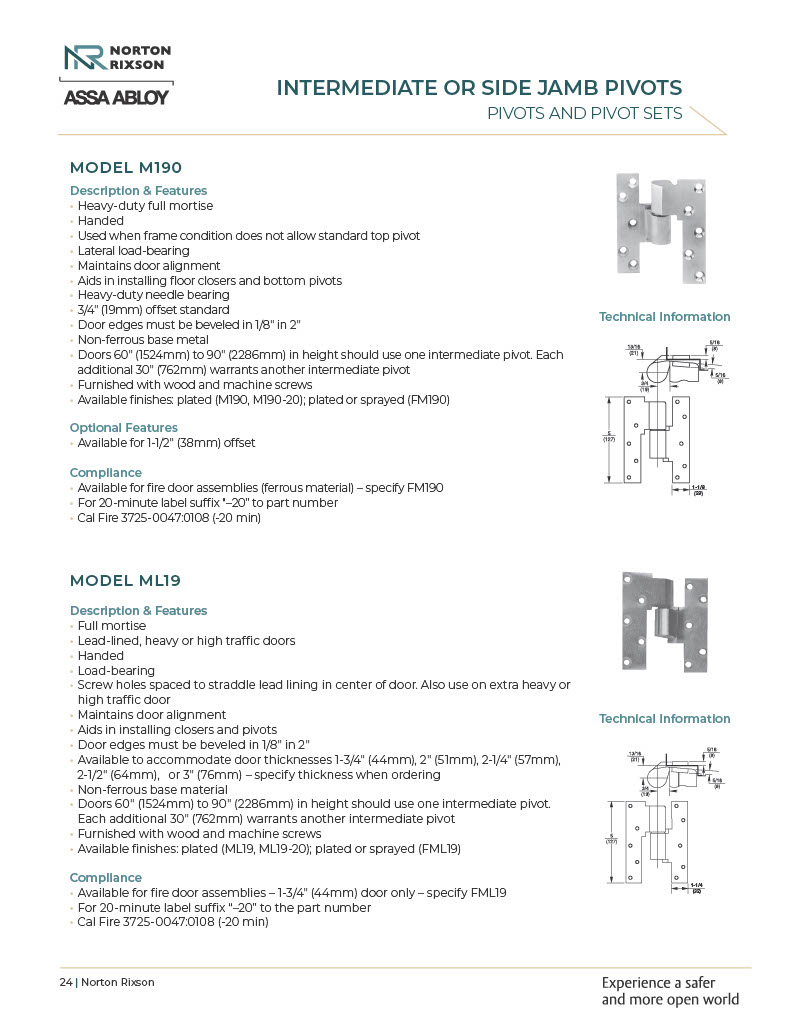

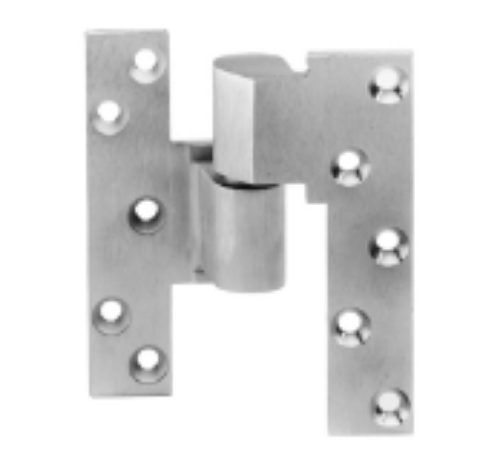

Norton Rixson M190 x 1-1/2OS Heay-Duty Intermediate Pivot, 1-1/2" Offset

Norton Rixson *M190 x 1-1/2OS Heay-Duty Intermediate Pivot, 1-1/2" Offset*

Application:

 Heavy-Duty Full Mortise Handed Load-Bearing Pivot

Description/Features:

Used when frame condition does not allow standard top pivot

 Lateral load-bearing Maintains door alignment Aids in installing floor closers and bottom pivots Heavy-duty needle bearing  Non-ferrous base metal  1-1/2" (38mm) offset Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot

 Door edges must be beveled in 1/8" in 2" Furnished with wood and machine screws

Model:M190 x 1-1/2OS,  M190 x 1-1/2OS-RH-613, M190 x 1-1/2OSLH626, M190 x 1-1/2OS RH 619
