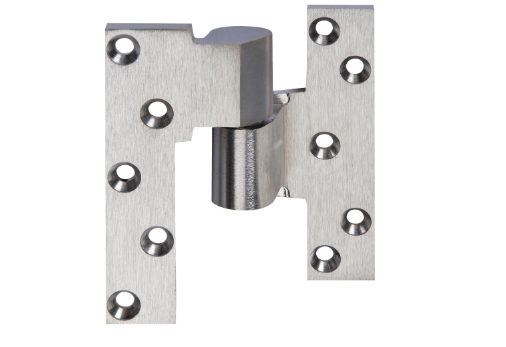

Norton Rixson ML19 X 1-3/4 Door, 1-3/4" Lead Lined Door, 3/4" Offset

Norton Rixson *ML19 X 1-3/4 Door,1-3/4" Lead Lined Door, 3/4" Offset*

Application:

 Full Mortise Lead-Lined, Heavy or High Traffic Doors Handed

Description/Features:

Screw holes spaced to straddle lead lining in center of door. Also use on extra heavy or high traffic door

 Load-bearing Maintains door alignment Aids in installing closers and pivots For 20-minute label suffix “–20" to the part number Door thicknesses: 1-3/4" (44mm) Non-ferrous base material Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot Door edges must be beveled in 1/8" in 2"Furnished with wood and machine screws

Model:ML19 X 1-3/4 Door-RH-613, ML19 X 1-3/4 Door-RH-626, ML19 X 1-3/4 RH626, ML19 X 1-3/4 Door-LH-613, ML19 X 1-3/4-LH-626, ML19X1-3/4DoorLH613
