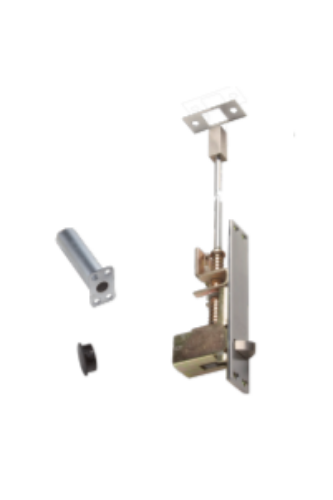

PDQ 93103 Series Automatic Flush Bolt with Bottom Fire Bolt For Hollow Metal Doors

PDQ 93103 Series Automatic Flush Bolt with Bottom Fire Bolt For Hollow Metal Doors

ANSI Type L04021

FEATURES: - Low (5lbs maximum) closing force.  - Fully automatic opening active door retracts top bolt.  - Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike. - Bolt head rod is adjustable up to 1-1⁄2".  - Includes PDQ #629030 Fire Bolt automatically locks the inactive door under high heat conditions due to fire. - Bottom fire bolt eliminates need for floor prep.

SPECIFICATIONS: BASE MATERIAL: - Brass and Steel . FASTENERS: - 8 ea. #8 x 3⁄4" FH combo screws, 2 ea. #8-32 x 3/8" FHMS, 4 ea. 10-32 x 13/16" FH MS (for Fire Bolt). FINISHES: - 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES:  - UL/CUL 10C listed for hollow labeled hollow metal swing doors, 4" x 8", 1-1/2 hrs. -  Complies with ANSI/BHMA 156.16, Type L04021. -  Meets requirements of Buy American Act.

93103, PDQ 93103, PDQ93103, 93103PDQ, PDQ 93103, 93103 PDQ, PDQ Automatic Flush Bolt
