Product Details

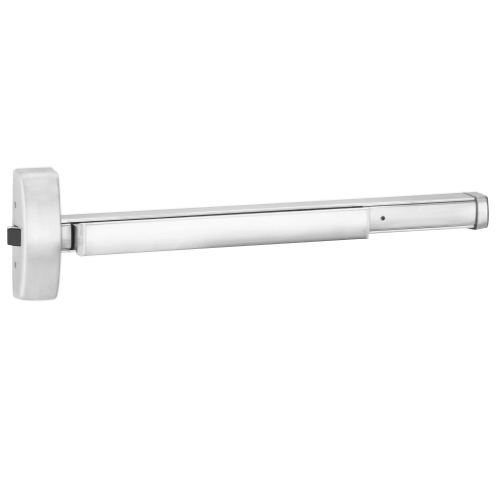

2105 Rim Wide Exit Device, Key Controls Thumb Piece
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications
Dogging: Has no dogging.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Model: Stanley-Precision 2105-605-36, 2105-606-36 , 2105-612-36 , 2105-630-36 , 2105-613-36, 2105-625-36 210560536, 2105606-36 , 210561236 , 2105630-36 , 2105613-36, 210562536, 2105-605-48, 2105-606-48 , 2105-612-48 , 2105-630-48, 2105-613-48, 2105-625-48, 210560548, 2105606-48 , 210561248 , 2105630-48 , 2105613-48, 210562548, 2105-630, 2102-630, 2105-630, 2105-630, 2114-630, 2115-630
