Product Details

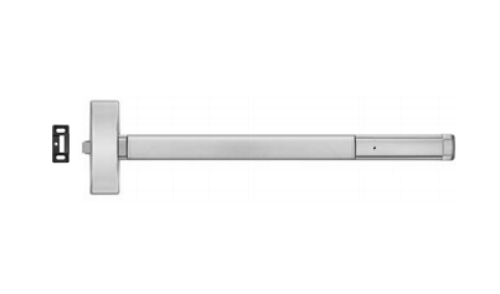

PHI Precision 2108 Rim Exit Device, Key Controls Lever/Knob
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications
Dogging:1/4" turn hex key dogging standard.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Stile Width:See Catalog Page # 36
Model: Stanley-Precision 2108-605-36, 2108-606-36 , 2108-612-36 , 2108-630-36 , 2108-613-36, 2108-625-36 210860536, 2108606-36 , 210861236 , 2108630-36 , 2108613-36, 210862536, 2108-605-48, 2108-606-48 , 2108-612-48 , 2108-630-48, 2108-613-48, 2108-625-48, 210860548, 2108606-48 , 210861248 , 2108630-48 , 2108613-48, 210862548, 2108-630, 2102-630, 2108-630, 2108-630, 2114-630, 2115-630
