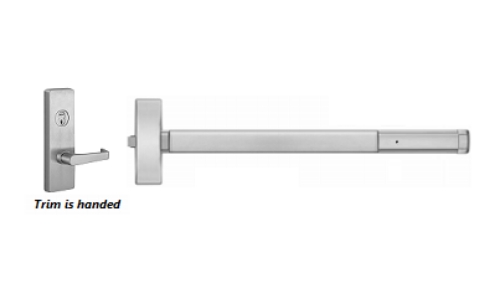

PHI Precision 2108 V4908A Rim Exit Device, Key Controls Lever/Knob, With V4908A Trim
Product Details
PHI Precision 2108*V4908A *Rim Exit Device, Key Controls Lever/Knob, With V4908A Trim

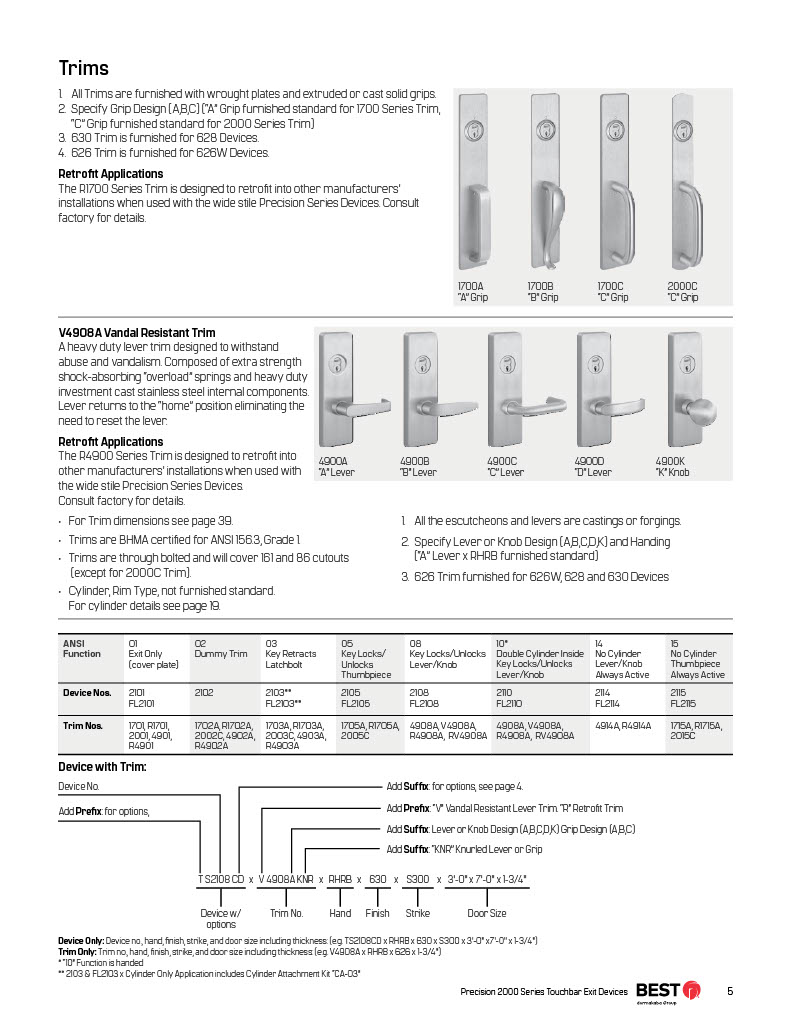

V4908ATrimApex and Olympian Series Wide Stile Trim, Key Controls Lever, A Lever Design, Vandal Resistant
Description and Features:
Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications
Dogging:1/4" turn hex key dogging standard.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Stile Width:See Catalog Page # 36
Model: Stanley-Precision 2108V4908A-605-36, 2108V4908A-606-36 , 2108V4908A-612-36 , 2108V4908A-630-36 , 2108V4908A-613-36, 2108V4908A-625-36 2108V4908A60536, 2108V4908A606-36 , 2108V4908A61236 , 2108V4908A630-36 , 2108V4908A613-36, 2108V4908A62536, 2108V4908A-605-48, 2108V4908A-606-48 , 2108V4908A-612-48 , 2108V4908A-630-48, 2108V4908A-613-48, 2108V4908A-625-48, 2108V4908A60548, 2108V4908A606-48 , 2108V4908A61248 , 2108V4908A630-48 , 2108V4908A613-48, 2108V4908A62548, 2108V4908A-630, 2102-630, 2108V4908A-630, 2108V4908A-630, 2114-630, 2115-630
